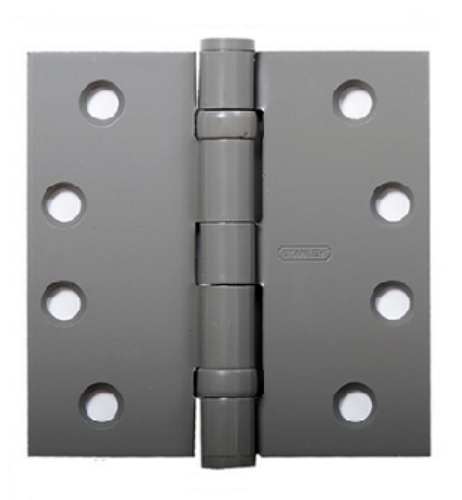

Stanley FBB179 26D 5x4 Five Knuckle Ball Bearing Hinge

Product Details

Stanley FBB179 5" x 4" Five Knuckle Ball Bearing*Hinge*

For medium weight doors of average frequency

All hinges have template screw hole location for use on either wood or hollow metal doors and frames

(ANSI A8112) Steel - polished and plated or phosphated and prime coated for painting

Hinge Size:5" x 4" Hinge Type: Full Mortise

Bearing Type:2 Ball Bearing

Gauge of Metal:.146 Inches - (3.7 mm)

Flat Head Screws Per Piece:Wood Screws: 4-12 x 1 1/4- Machine Screws: 8 - 12-24 x 1/2

Pins in non-ferrous hinges are stainless steel

Hole in bottom tip for easy pin removal

Reversible flush tips and pins

Finishes: P - Primed for Painting, US26D - Satin Chrome, US3 - Bright Brass, US4 - Satin Brass,

Model: Stanley FBB179 5x4 US26D, FBB179 5x4 P , FBB179 5x4 US3, FBB179 5x4 US4,

Stanley FBB179 26D 5x4 Five Knuckle Ball Bearing Hinge

SKU: FBB179 5x4

In Stock

Finish *

US26D - Satin Chrome
US26D - Satin Chrome

$12.49

$19.83

You saved $7.34

About this item

FBB Series hinges are ball bearing hinges that conform to ANSI A156.1. These tough, hardened, chrome alloy, vertical thrust ball-bearing assemblies support the vertical load of the door, as the pin bearing on the inside of the hinge knuckles supports the lateral load of the door. FBB hinges are approved for use on fire-rated doors since they contain anti-friction bearings, a requirement for fire-rated and self-closing doors.

Stanley FBB179 5" x 4" Five Knuckle Ball Bearing*Hinge*

For medium weight doors of average frequency

All hinges have template screw hole location for use on either wood or hollow metal doors and frames

(ANSI A8112) Steel - polished and plated or phosphated and prime coated for painting

Hinge Size:5" x 4" Hinge Type: Full Mortise

Bearing Type:2 Ball Bearing

Gauge of Metal:.146 Inches - (3.7 mm)

Flat Head Screws Per Piece:Wood Screws: 4-12 x 1 1/4- Machine Screws: 8 - 12-24 x 1/2

Pins in non-ferrous hinges are stainless steel

Hole in bottom tip for easy pin removal

Reversible flush tips and pins

Finishes: P - Primed for Painting, US26D - Satin Chrome, US3 - Bright Brass, US4 - Satin Brass,

Model: Stanley FBB179 5x4 US26D, FBB179 5x4 P , FBB179 5x4 US3, FBB179 5x4 US4,

StanleyFBB1-
Stanley FBB179 26D 5x4 Five Knuckle Ball Bearing Hinge

Product code: FBB179 5x4

In Stock

$19.83

$12.49

?

StanleyFBB1-
Stanley FBB179 26D 5x4 Five Knuckle Ball Bearing Hinge

Product code: FBB179 5x4

In Stock

$19.83

$12.49
