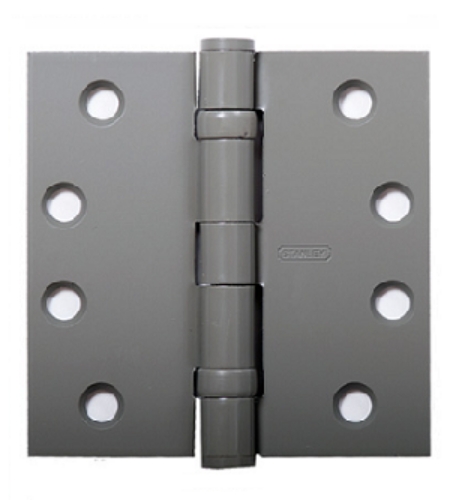

Stanley FBB179 4-1/2X4-1/2 Five Knuckle Ball Bearing Hinge

Stanley FBB179 4-1/2" X 4-1/2" Five Knuckle Ball Bearing*Hinge*

For medium weight doors of average frequency

All hinges have template screw hole location for use on either wood or hollow metal doors and frames

Hinge Size:*4-1/2" X 4-1/2"* Hinge Type: Full Mortise

Bearing Type:2 Ball Bearing

Gauge of Metal:.134 Inches - (3.4 mm)

Flat Head Screws Per Piece:Wood Screws: 8-12 x 1 1/4- Machine Screws: 8 - 12-24 x 1/2

(ANSI A8112) Steel - polished and plated or phosphated and prime coated for painting

Pins in non-ferrous hinges are stainless steel

Hole in bottom tip for easy pin removal

Reversible flush tips and pins

Finishes: P - Primed for Painting, US26D - Satin Chrome, US3 - Bright Brass, US4 - Satin Brass, US15 - Satin Nickel, US10 Satin Bronze, US5 - Satin Brass, 1D - Black Coated, 10B - Dark Oxidized Satin Bronze Oil Rubbed

Model: Stanley FBB179 4-1/2X4-1/2 US26D, FBB179 4-1/2X4-1/2 US32D, FBB179 4-1/2X4-1/2 US10, FBB179 4-1/2X4-1/2 US10B, FBB179 4-1/2X4-1/2 US5, FBB179 4-1/2X4-1/2 US10, FBB179 4-1/2X4-1/2 US15, FBB179 4-1/2X4-1/2 ID, FBB179 4-1/2X4-1/2 US10B
