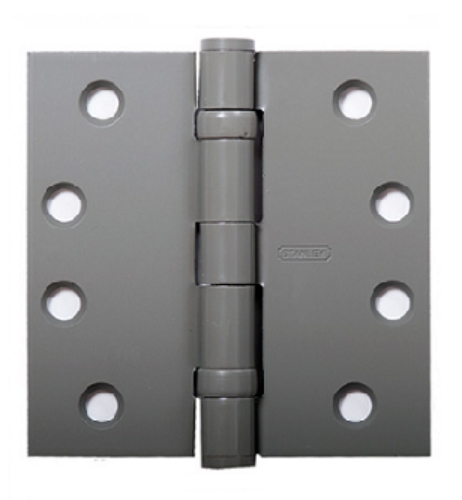

Stanley FBB179 4-1/2x4 Five Knuckle Ball Bearing Hinge

Stanley FBB179 4-1/2" x 4" Five Knuckle Ball Bearing*Hinge*

For medium weight doors of average frequency

All hinges have template screw hole location for use on either wood or hollow metal doors and frames

(ANSI A8112) Steel - polished and plated or phosphated and prime coated for painting

Hinge Size:4-1/2" x 4"

Hinge Type:Full Mortise

Bearing Type:2 Ball Bearing

Gauge of Metal:134 (3.4 mm)

Flat Head Screws Per Piece:Wood Screws: 8-12 x 1 1/4- Machine Screws: 8 - 12-24 x 1/2

Pins in non-ferrous hinges are stainless steel

Hole in bottom tip for easy pin removal

Reversible flush tips and pins

Finishes: P - Primed for Painting, US26D - Satin Chrome, US3 - Bright Brass, US4 - Satin Brass, US10B - Oil Rubbed Bronze, US26 - Polished Chrome, US15 - Satin Nickel, US10 Satin Bronze, 10A - Oxidized Satin Bronze Relieved Clear Coated

Model: Stanley FBB179US26D 4-1/2x4, FBB179P4-1/2x4, FBB179US3 4-1/2x4, FBB179US4 4-1/2x4,FBB179US26 4-1/2x4, FBB179US15 4-1/2x4, FBB179US10B 4-1/2x4, FBB179US10A 4-1/2x4, FBB179US10 4-1/2x4,
