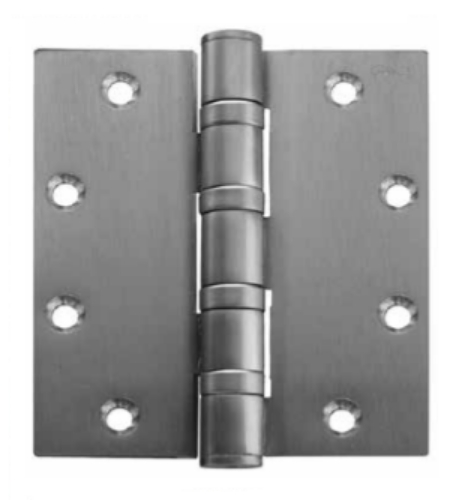

Stanley FBB199NRP 5x5 Heavy Weight Five Knuckle Ball Bearing Hinge

Product Details

Stanley FBB199NRP 5" x 5" Heavy Weight Five Knuckle Ball Bearing*Hinge*

For use on heavy doors or doors where high frequency is expected such as entrance doors to office buildings, stores, public buildings and corridor entrance doors to offices

Equipped with four Stanley permanently lubricated non-detachable ball bearings

(ANSI A2112)Brass or bronze - polished and plated or painted(ANSI A5112)Stainless steel - highly polished(ANSI A5112)Stainless steel - satin finish (NRP) non-removable pins

Hinge Size:5" x 5"

Hinge Type:Full Mortise

Bearing Type: 4 Ball Bearing

Gauge of Metal:190 (4.8 mm)

Flat Head Screws Per Piece:Wood Screws: 8-12 x 1 1/2- Machine Screws: 8 - 12-24 x 1/2

All hinges have template screw hole location for use on either wood or hollow metal doors and frames

Pins in non-ferrous hinges are stainless steel

Hole in bottom tip for easy pin removal

Reversible flush tips and pins

Finishes: P - Primed for Painting, US3 - Bright Brass, US10 Satin Bronze, US26D - Satin Chrome, 10A - Oxidized Satin Bronze Relieved Clear Coated

Model: Stanley FBB199NRP 5X5 US26D, FBB199NRP 5X5 P, FBB199NRP 5X5 US3 , FBB199NRP 5X5 US4 ,FBB199NRP 5X5 US26, FBB199NRP  5X5 US15, FBB199NRP 5X5 US10B, FBB199NRPUS 5X5 10A, FBB199NRP 5X5 US10 ,

Stanley FBB199NRP 5x5 Heavy Weight Five Knuckle Ball Bearing Hinge

SKU: FBB199NRP 5X5

In Stock

Finish *

US32D - Satin Stainless Steel
US32D - Satin Stainless Steel
US4 - Satin Brass [-$33.37]
US4 - Satin Brass [-$33.37]

$93.78

$148.85

You saved $55.07

About this item

FBB Series hinges are ball bearing hinges that conform to ANSI A156.1. These tough, hardened, chrome alloy, vertical thrust ball-bearing assemblies support the vertical load of the door, as the pin bearing on the inside of the hinge knuckles supports the lateral load of the door. FBB hinges are approved for use on fire-rated doors since they contain anti-friction bearings, a requirement for fire-rated and self-closing doors.

Stanley FBB199NRP 5" x 5" Heavy Weight Five Knuckle Ball Bearing*Hinge*

For use on heavy doors or doors where high frequency is expected such as entrance doors to office buildings, stores, public buildings and corridor entrance doors to offices

Equipped with four Stanley permanently lubricated non-detachable ball bearings

(ANSI A2112)Brass or bronze - polished and plated or painted(ANSI A5112)Stainless steel - highly polished(ANSI A5112)Stainless steel - satin finish (NRP) non-removable pins

Hinge Size:5" x 5"

Hinge Type:Full Mortise

Bearing Type: 4 Ball Bearing

Gauge of Metal:190 (4.8 mm)

Flat Head Screws Per Piece:Wood Screws: 8-12 x 1 1/2- Machine Screws: 8 - 12-24 x 1/2

All hinges have template screw hole location for use on either wood or hollow metal doors and frames

Pins in non-ferrous hinges are stainless steel

Hole in bottom tip for easy pin removal

Reversible flush tips and pins

Finishes: P - Primed for Painting, US3 - Bright Brass, US10 Satin Bronze, US26D - Satin Chrome, 10A - Oxidized Satin Bronze Relieved Clear Coated

Model: Stanley FBB199NRP 5X5 US26D, FBB199NRP 5X5 P, FBB199NRP 5X5 US3 , FBB199NRP 5X5 US4 ,FBB199NRP 5X5 US26, FBB199NRP  5X5 US15, FBB199NRP 5X5 US10B, FBB199NRPUS 5X5 10A, FBB199NRP 5X5 US10 ,
