Tell 8300B Commercial Duty Rim Exit Device - 36"

Tell 8300B Commercial Duty Rim Exit Device - 36"

NEW Head Cover Design.

Standard Features

Performance: Complies with ANSI A156.3, 1994, Grade 1, UL/ULC listed. Finish: US32D. Rail: Fits 28" to 36" doors. Latch: Stainless steel 5/8" throw. Backset: 2-3/4". Strike: Adjustable with slotted holes for adjustments Standard Cylinder: Standard cylinder Schlage (SCC) - 6-pin solid brass, C keyway, keyed different (KD). Fasteners: Accommodates wood or metal doors. Door Range: 1-3/4" to 2" thickness. Door Preparation: Surface mounted. Warranty: 10 year limited.

Optional Features

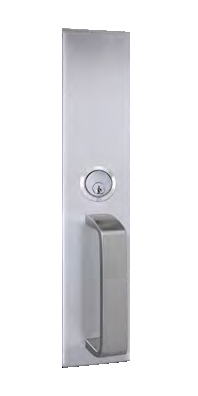

Exterior Trim: Exterior blank pull, exterior pull with cylinder cut out, entry ball knob trim, storeroom ball knob trim, entry lever trim without clutch, exterior thumbpiece trim, pull trim with rim cylinder, exterior escutcheon lever trim, heavy-duty escutcheon entry lever trim. UL Listed: 3 hour fire rated device available. Fire Rated: UL labeled fire rated device available for use on doors rated up to 3 hours. Fire rated device also available for larger doors up to a maximum of 4' x 8'. Specify when ordering. Strikes: Other strikes available. Keying Options for Select Knob and Lever Trim Tell Cylinder: Restricted Tell keyway cylinder can key both the cylinder and interchangeable core in one lock. The cylinders and IC cores are interchangeable. Tell keyway cylinder is available only keyed to 6-pin. Tell IC cylinder can be keyed to 6-pin or 7-pin interchangeable core (IC). Other Cylinder Options: Arrow A (ARA), Corbin 59A1 (C059A1), Corbin 60 (C06), Corbin Russwin L4  (CL4), Kwikset (KW1), Russwin D1 (RD1), Sargent LA (SAL), Schlage E (SCE), Schlage F (SCF), Weiser E (WRE), Yale 8 (YA8), Yale GA (YGA). All cylinders 6-pin. cAn Also be pinned 5-pin. IC Keyway Cylinder: Tell, Best A (BA), Best B (BB), Best C (BC), Best D (BD), Best E (BE), Best F (BF), AvAilAble 6- or 7-pin Best G (BG), Best H (BH), Best J (BJ), Best K (BK), Best L (BL), Best M (BM), Best. Q (BQ), Best Keying Options: Grand master key (GMK), construction master key (CMK), master key (MK), keyed different (KD), keyed alike (KA), interchangeable core uncombinated (IC), 0-bitted (0BIT).

model: EX100315 Tell 8300B, Tell8300B, Tell8300B, 7300BTell, 8300B, TellGrade 1 Exit Device , Tell Exit Device
