Product Details

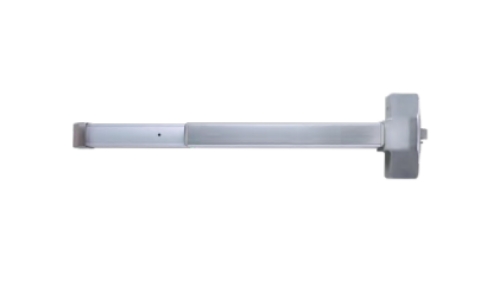

Tell 9100B Heavy Duty Mortise Lock Exit Device - 36" - US32D
Standard Features
Application For use on single doors or active leaf of double doors, where both
exit device and high security are required. Fits for 1-3/4" (44mm)
standard up to 2-1/4" (57 mm) thick RHR or LHR hollow metal door,
and wood doors.
Specification: MORTISE LOCK PORTION
Lockcase:
Steel, plated. 6-1/6" x 3-15/16" x 29/32"
(154mm x 100mm x 23mm)
Anti Friction Latchbolt:
3/4" (19mm) throw, stainless steel.
Full reversible without removing the lock from the door.
Auxiliary Deadlocking Bolt:
Non handed, stainless steel
Faceplate:
1.5mm thick stainless steel. Adjustable.
Strike:
2mm thick stainless steel, universal curved lip.
Specification: DEVICE BODY PORTION
Device Head Cover:
Steel, stainless steel
Chassis:
Stainless steel
Push Bar:
Stainless steel
End Cap:
Stainless steel
Mounting:
Packed with standard machine screws. Not furnished sex bolts.
Order 'SNB' for wood or un-reinforced metal doors
U.L. Listing:
Fire Rated
Dogging:
Not available
Finish:
US32D
NOTE:
Fire rated labeled device is not permitted to be equipped with dogging.
