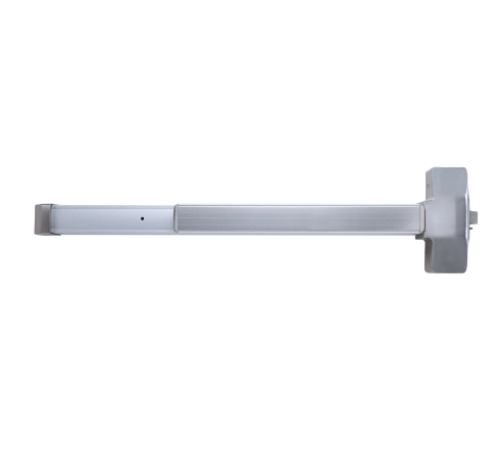

Tell 9500A Commercial Duty Rim Exit Device - 48" - US32D

Tell 9500A*Grade 1*Commercial Duty Rim Exit Device - 48" - US32D

Standard Features

Performance: Complies with Ansi A156.3, 2001, grade 1, UL/ULC Listed Latch: stainless steel 3/4" throw with deadlatch feature Backset: 2-3/4" Strikes: Adjustable with slotted holes for adjustments Standard Cylinder: standard cylinder schlage (SCC) - 6-pin solid brass, C keyway, keyed different (kD). Fasteners: Accommodates wood and metal doors with thru bolts standard Door Range: 1-3/4" to 2-1/4" thick. Door Preparation: surface mounted and covers 161 prep. Warranty: 10 years.

Optional Features:

Fire Rated: fire Rated device available for use on doors rated up to 3 hours. UL Listed: 3 hour fire rated device available Exterior Trim: Exterior blank pull, exterior pull with cylinder cut out, entry ball knob trim, storeroom ball knob trim, entry lever trim without clutch, exterior thumbpiece trim, pull trim with rim cylinder, exterior escutcheon lever trim, heavy-duty escutcheon entry lever trim Strikes: other strikes available

Keying Options for Select Lever Trim

Tell Cylinder: Restricted tell keyway cylinder can key both the cylinder and interchangeable core in one lock. the cylinders and iC cores are interchangeable. tell keyway cylinder is available only keyed to 6-pin. tell iC cylinder can be keyed to 6-pin or 7-pin interchangeable core (iC). Other Cylinder Options*:* Arrow A (ARA), Corbin 59A1 (C059A1), Corbin 60 (C06), Corbin Russwin L4 (CL4), kwikset (kW1), Russwin D1 (RD1), sargent LA (sAL), schlage E (sCE), schlage f (sCf), Weiser E (WRE), Yale 8 (YA8), Yale gA (YgA) all Cylinders 6-pin. Can also be pinned 5-pin. IC Keyway Cylinder- available 6- or 7-pin: tell, Best A (BA), Best B (BB), Best C (BC), Best D (BD), Best E (BE), Best f (Bf), Best g (Bg), Best h (Bh), Best J (BJ), Best k (Bk), Best L (BL), Best m (Bm), Best Q (BQ), Best Keying Options: grand master key (gmk), construction master key (Cmk), master key (mk), keyed different (kD), keyed alike (kA), interchangeable core uncombinated (iC), 0-bitted (0Bit)

model: EX100076 Tell 9500A, Tell9500A, Tell9500A, 9500ATell, 9500A, TellGrade 1 Exit Device , Tell Exit Device
