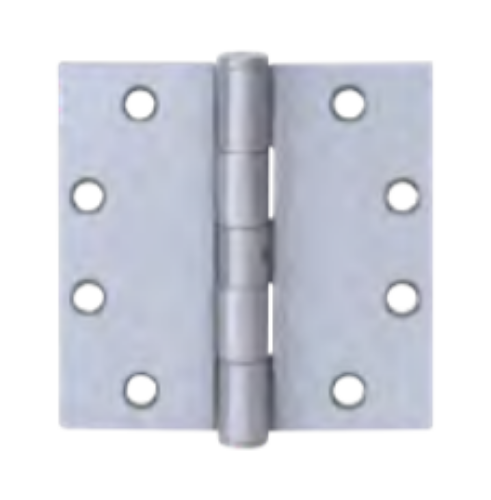

Tell HG100003 PLAIN BEARING HINGE - NRP - 4.5" X 4.5" - US26D - Pack Of 3

About this item

Tell HG100003 PLAIN BEARING HINGE - 4.5" X 4.5" - US26D - Pack Of 3

Standard Features:

Performance:
Complies with ANSI A156.1, 1999 (plain bearing and ball bearing).
Performance:
Complies with ANSI A156.17, 1999, UL listed (spring hinge).
Hinge:
4-1/2" x 4-1/2", square corner, templated, .134" gauge steel.
Screws:
Furnished with 24 metal screws and 24 #12 wood screws.
Warranty:
1 year.

Optional Features:

Pin:
Ball Bearing & Non-removeable n Finishes USP, US26D, US32D, US3, US10B.
Note:
Other finishes and sizes available upon request. Check for availability and lead time.
Gauge:
Heavy-duty available in US26D finish, ball bearing, with either loose pin or non-removeable pin (NRP).
