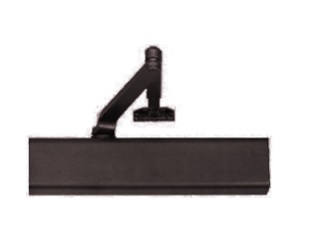

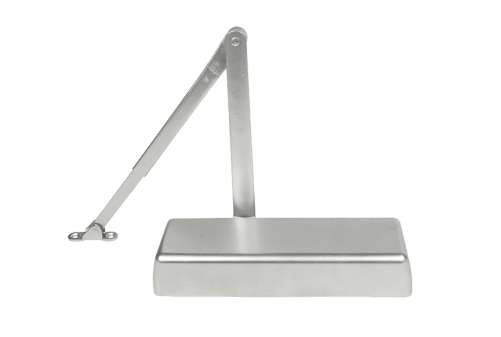

TownSteel TDC-40-CUSH Heavy Duty Commercial Closer, CUSH Parallel Arm

TownSteel TDC-40-CUSH Heavy Duty Commercial Closer, CUSH Parallel ArmCUSH - Heavy Duty Parallel Mount Cush Arm

Product Type:Mechanical Compliance:UL 10C Compliant BHMA/ANSI Grade:Grade 1 Certified, ANSI/BHMA A156.4 Handings:Non-handed

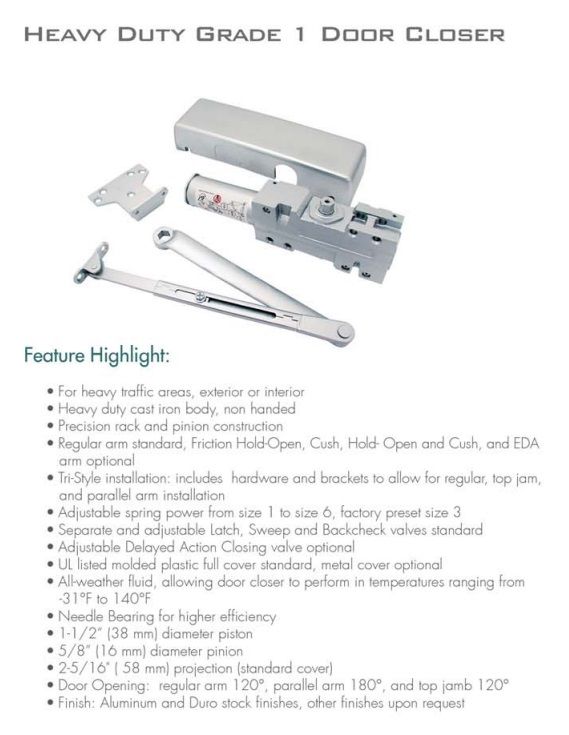

FEATURES:

• Tri-Pack with regular, parallel and top-jamb mounting, instructions and full size template.
• Barrier free spring adjustment from size 1 to 6.
• Non handed.
• Standard with adjustable sweep, latch and back check.
• Full plastic cover.-
• SNB - Sex Nuts and Bolts.
• Standard hole pattern and mounting location.
• For heavy traffic areas, exterior or interior
• Heavy-duty cast iron body, non-handed
• Precision rack and pinion construction
• Regular arm standard, Friction Hold-Open, Cush, and Hold-Open and Cush arm optional
• Tri-Style installation: Includes hardware and brackets to allow for regular, top jam, and parallel arm installation.
• Adjustable spring power from size 1 to size 6, factory preset size 3.
• Separate and adjustable latch, sweep, and backcheck valves standard
• Adjustable delayed action closing valve optional

SPECIFICATIONS:

Closer - Closers shall be by TownSteel mode number TDC40, full rack and pinion type with cast iron body. All closers shall be provided with non-critical values with hex-key adjustment to independently regulate the sweep, latch and back-check. Closer shall have full spring adjustment from size 1 to size 6 and be non-handed, with full cover and narrow projection of 2-1/4" from the surface of the door. All closers shall be mounted to allow the maximum degree of swing.
