Product Details
TownSteel TDC-70-CUSH Standard Duty Commercial Closer, CUSH Parallel ArmProduct Type:
Mechanical
Compliance:UL 10C Compliant, Americans with Disabilities Act Compliant
Handings:Non-handed
BHMA/ANSI Grade:Grade 1 Certified, ANSI/BHMA A156.12

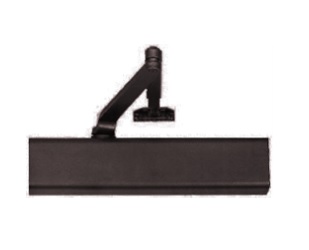

CUSH -Heavy Duty Parallel Mount Cush Arm
FEATURES:
- Tri-Pack with regular, parallel and top-jamb mounting, instructions and full size template.
- Standard spring adjustment from size 2 to 6
- Standard with adjustable sweep, latch and back check
- SNB Sex Nuts
- Full plastic cover
- Standard hole pattern and mounting location.
- Fast and easy installation
- For heavy traffic areas, exterior or interior
- All weather fluid, heavy duty cast aluminum alloy body and forged steel arm
- Non-handed for left or right swinging doors
- Separate and adjustable latch, sweep, and backcheck valves standard
- Adjustable backcheck and staked valves standard
- Delayed action available
- Tri-Style installation: includes hardware and brackets to allow for regular, top jam, and parallel arm installation
- Screw pack for metal and wood doors installation, includes sleeve nuts and bolts, self- drilling screws, wood and machine screws
Available in Aluminum, Duro, Black and Satin Brass finish

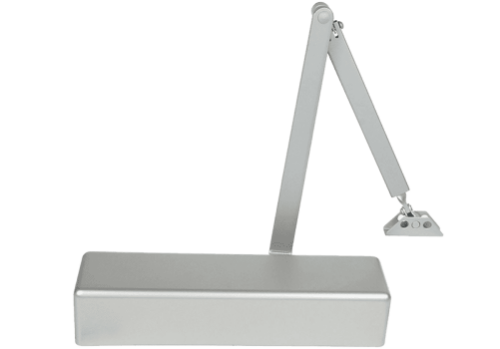

Available in Regular arm, Hold- Open arm (HOA), CUSH arm (CUSH), Hold Open CUSH arm (HCUSH), and Slide Tracking arm (T)
SPECIFICATIONS:
Closers shall be by TownSteel model number TDC70 and TDC70BF, full rack and pinion type with cast aluminum alloy body.
All closers shall be provided with non-critical hex-key adjustment to independently regulate the sweep, latch and back-check. Closer shall be non-handed with full cover and projection of 2-1/2" from the surface of the door.
Closer shall have full spring adjustment from size 1 to size 4 for barrier free (BF) size and size 2 to size 6 for standard size.
The closer shall be pre-adjusted at the factory to size 2 for TDC70BF and size 3 for TDC70. Each closer shall be adjusted for each door condition and mounted to allow the maximum degree of swing.
