Product Details

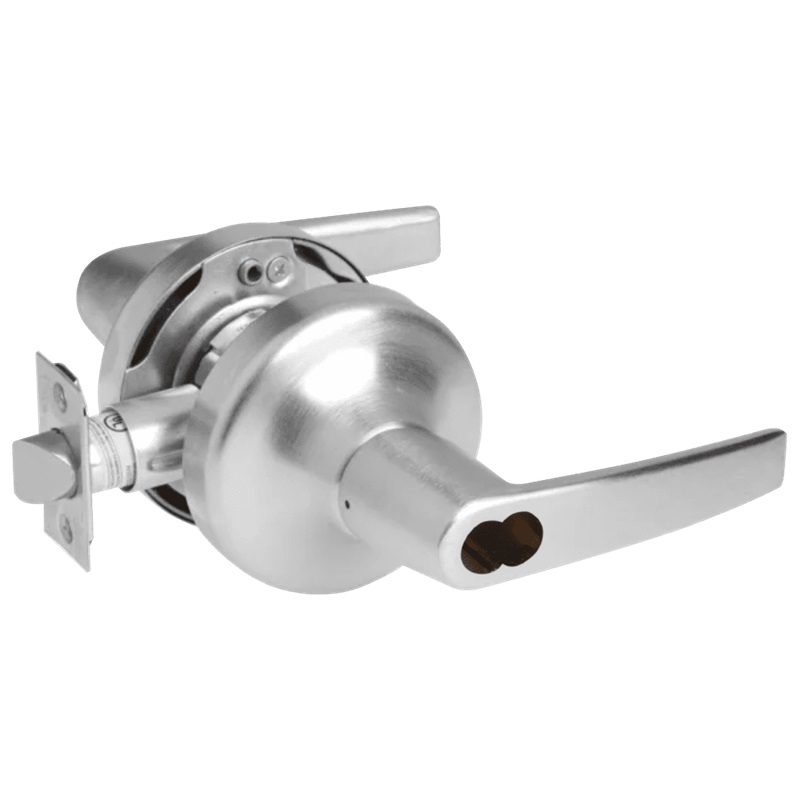

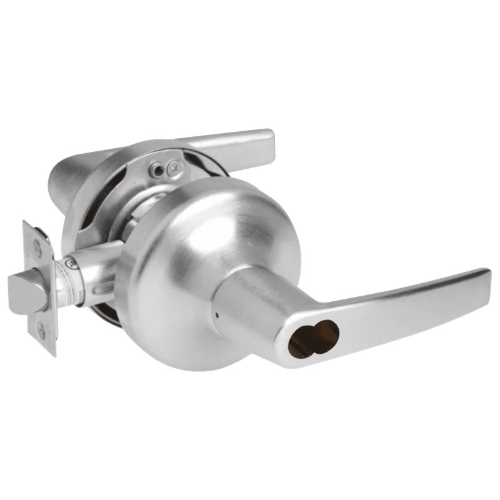

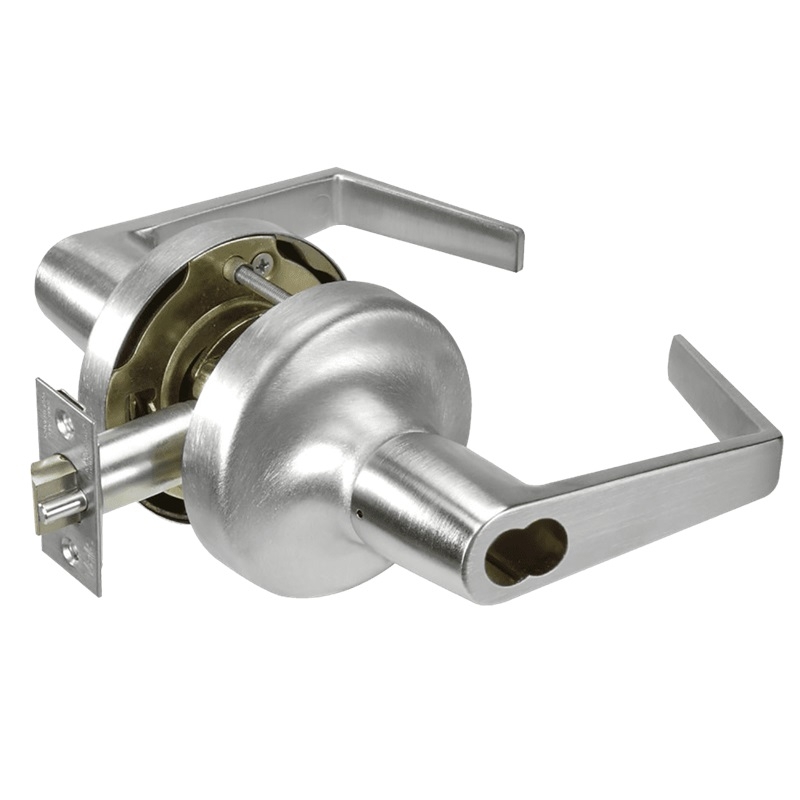

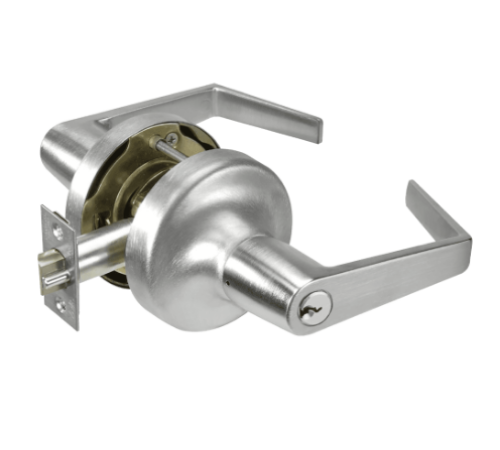

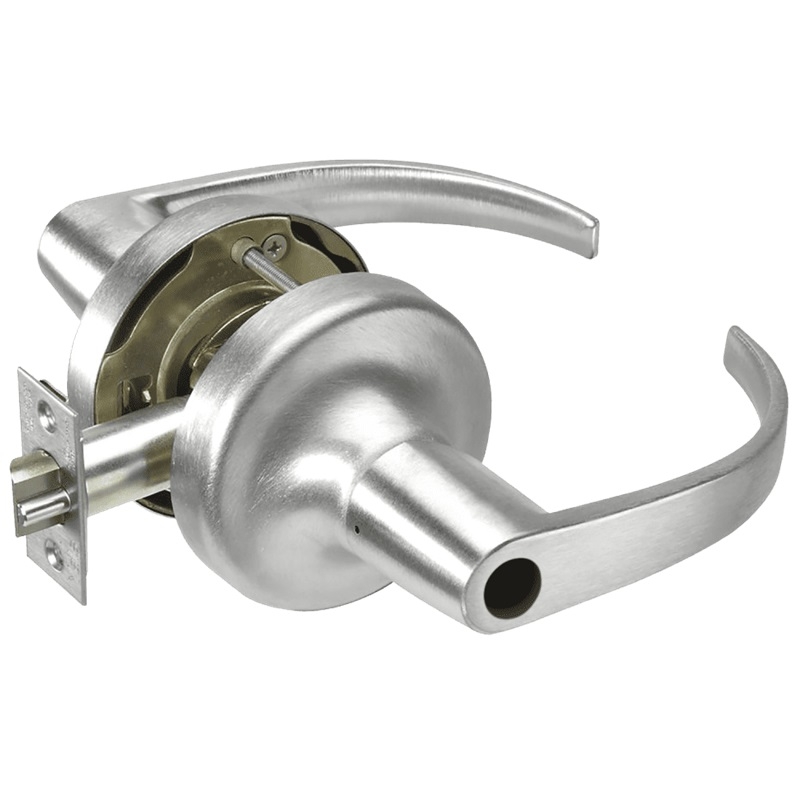

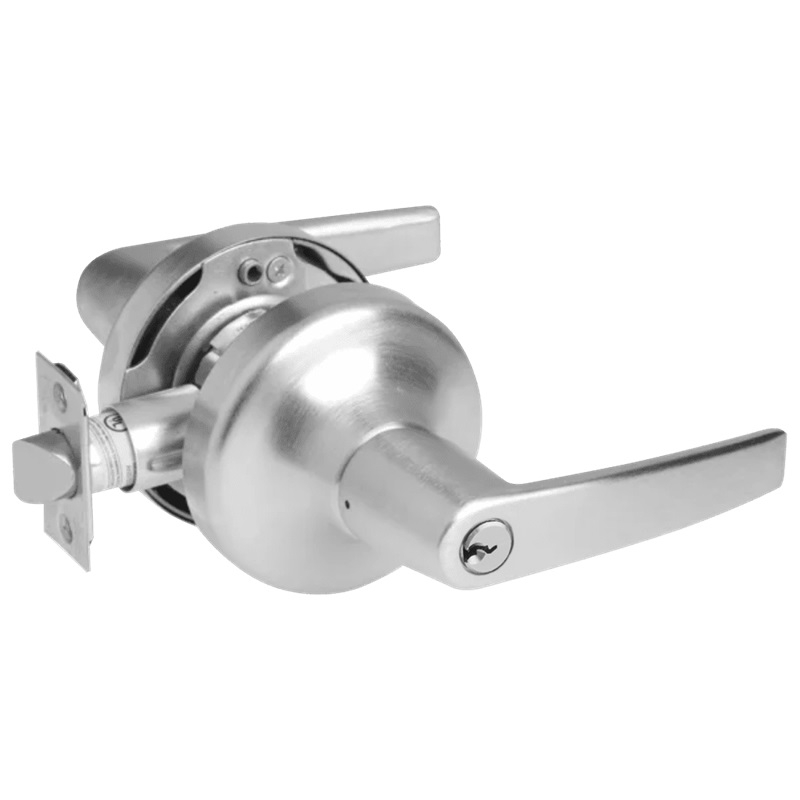

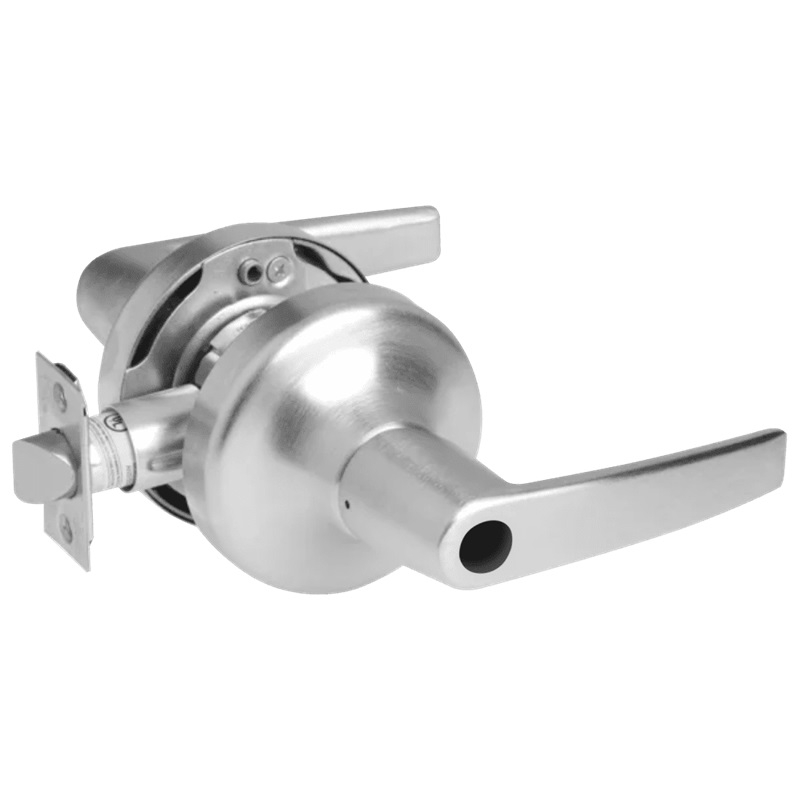

Accentra (Yale )*5308LN Grade 2 Classroom Lock -*ANSI F84

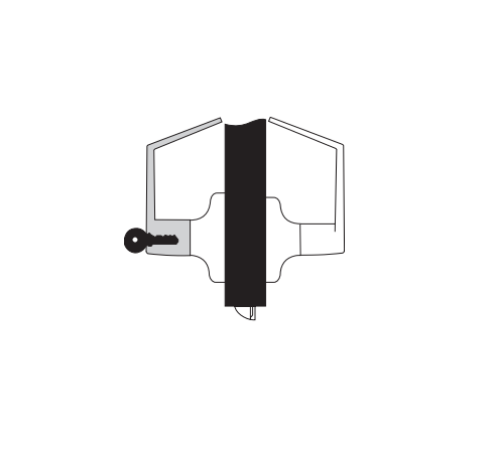

For classroom or utility room doors. Deadlocking latchbolt. Either lever operates latchbolt (except when outside lever is locked by key). Inside lever always active. Key releases outside lever.

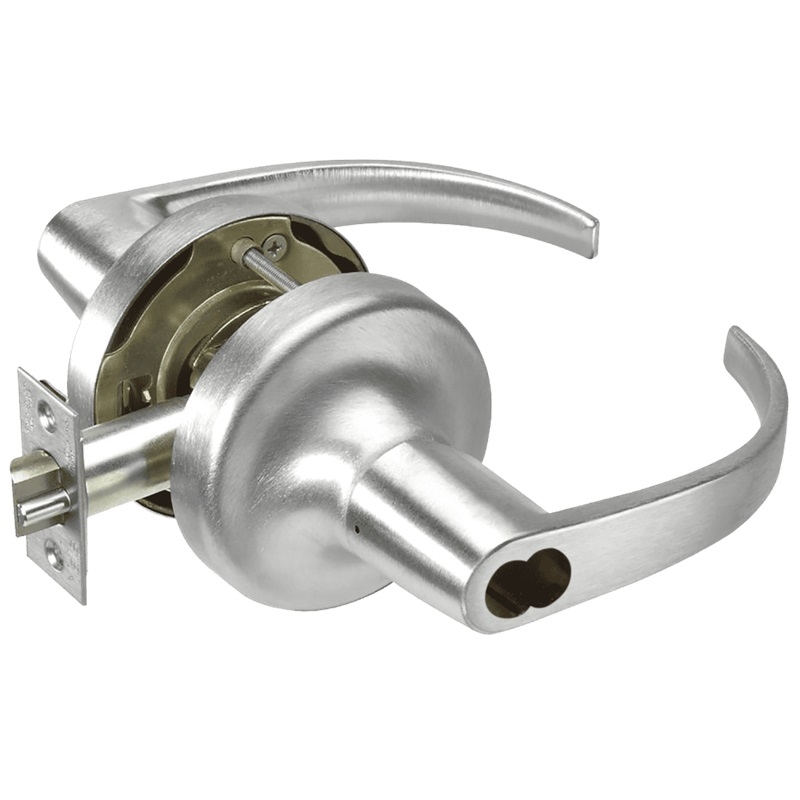

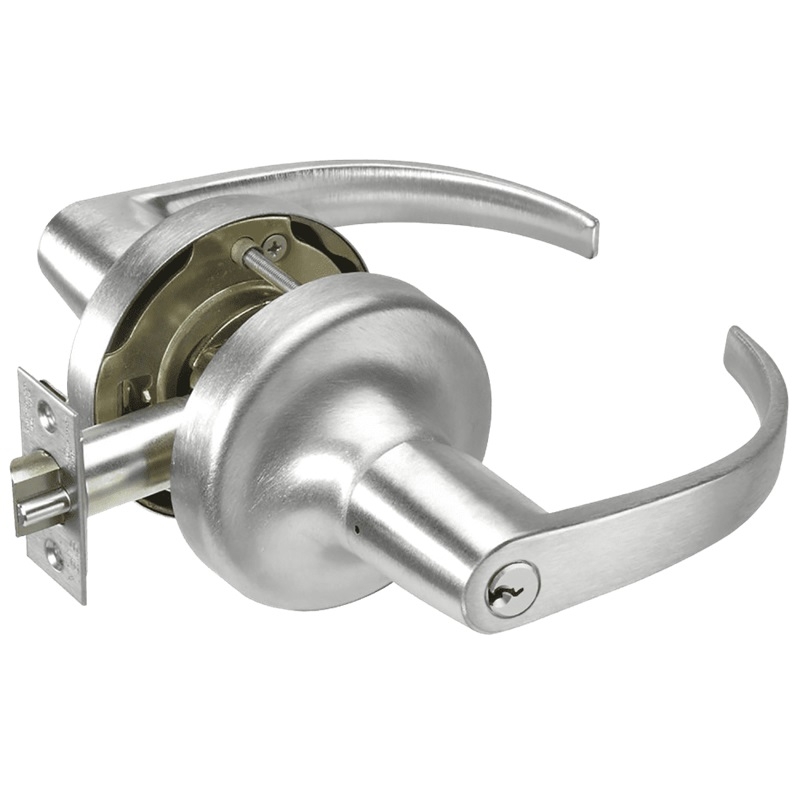

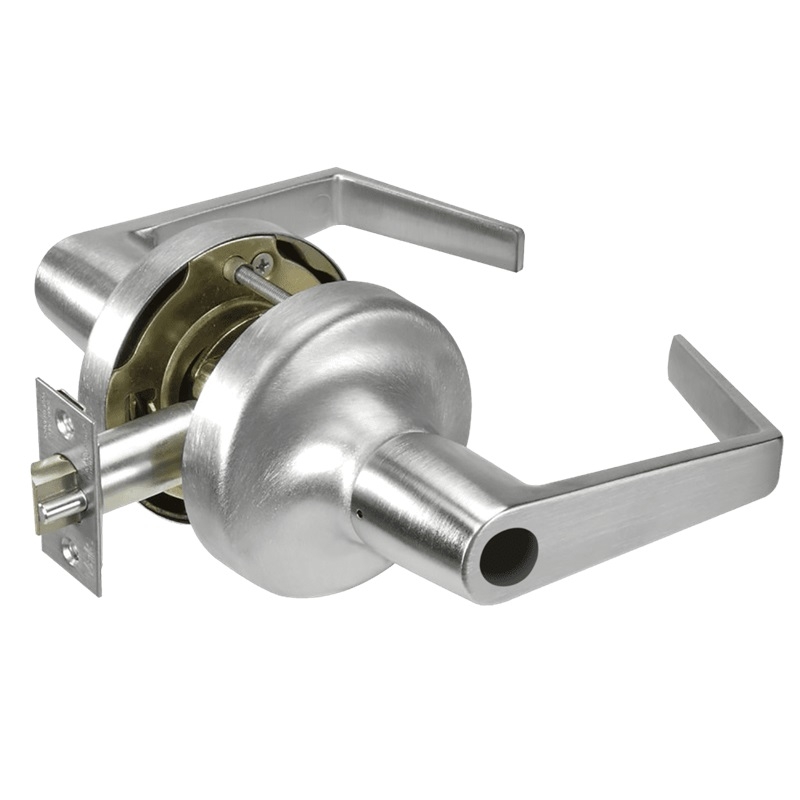

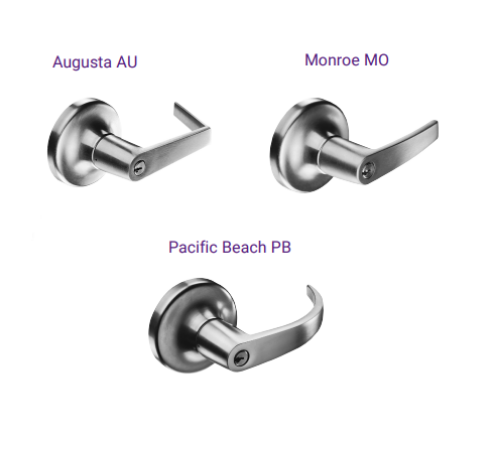

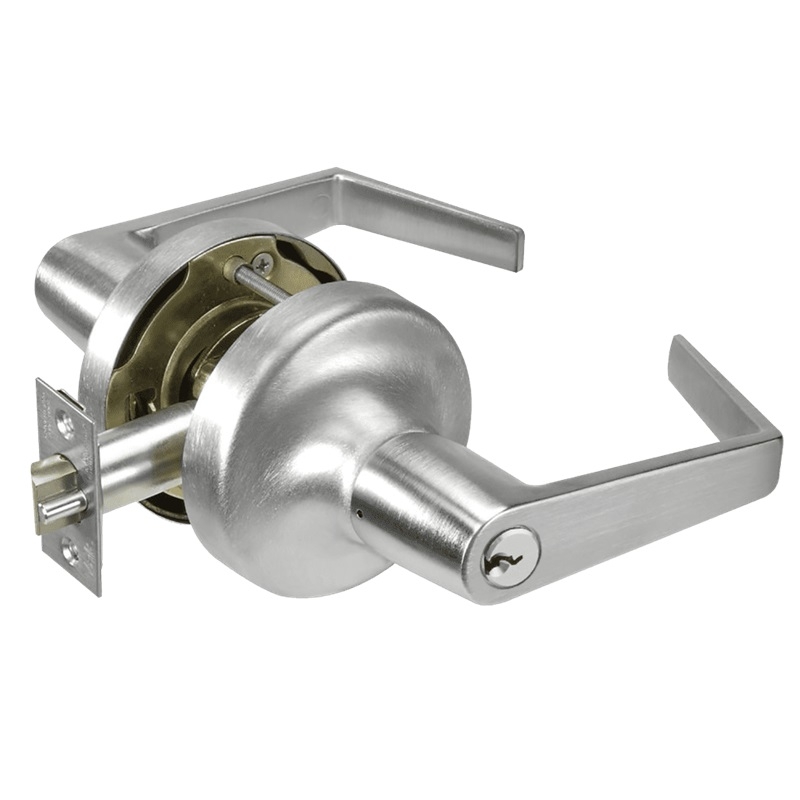

Lever Style:Augusta AU, Monroe MO, Pacific Beach PB.
Finishes:605 (US3) Bright Brass, 606 (US4) Satin Brass, 612 (US10) Satin Bronze, 613 (US10B) Dark Oxidized Satin Bronze, Oil Rubbed, 625 (US26) Bright Chromium Plated, 626 (US26D) Satin Chromium Plated
ANSI: Certified ANSI/BHMA A156.2, Series 4000 Grade 2.
Fire listings:UL - cUL Fire Label for all door functions up to 3 hours.
Non-Handed :Three non-handed lever options (Augusta, Monroe, and Pacific Beach) comply with ADA requirements for easy gripping and operation.
**Door Thickness:Locksets are preassembled for 1-3/8" (35mm) - 1-3/4" (44mm) doors. Preset at factory for 1-3/4" (44mm).Special order available for 2" (51mm) or 2-1/4" (57mm) thick doors please specify door thickness on order.
Lock Chassis: Lockset chassis constructed of heavy-gauge steel and cast components, plated to protect against rust and corrosion
Free wheeling lever trim:All locking functions feature the Free Wheeling lever mechanism. When the outside lever is locked, it will rotate freely up and down while remaining securely locked.
Backset: 2-3/4" (70mm) standard. Optional: 2-3/8", 3-3/4" (95mm) andExtensionslinksup to 6".
Latchbolt:
Stainless steel with 1/2" throw.
Auxiliary Latchbolt:Deadlocking latchbolt prevents manipulation when door is closed.
Front:Wrought brass, bronze, or stainless steel, 2-1/4" (57mm) x 1-1/8" (29mm).All latches have universal fronts, so they fit flat and beveled door fronts.
Strike:Wrought brass, bronze or stainless steel ANSI curved lip, 4-7/8" x 1-1/4" x 1-1/4" lip to center standard. Optional strikes, lip lengths and ANSI wrought strike box available.
Cylinder:Brass, 6-pin, E1R (PARA) keyway standard.
Keying Features Available:6-pin,**Master keying, Construction master keying, Interchangeable core (IC).
Keys:Two nickel silver standard.
Warranty:The 5300LN Series cylindrical lever lock carries a five-year warranty. Likewise, the 5300LN carries a lifetime warranty against lever sag and lever spring breakage.
Model: Accentra (Yale) , 5308LN, AU5308LN, MO5308LN, PB5308LN, 5308, AU5308, MO5308, PB5308, 5308LN, AU5308LN626, MO5308LN626, PB5308LN626, AU5308LN605, MO5308LN605, PB5308LN605, AU5308LN606, MO5308LN606, PB5308LN606, AU5308LN612, MO5308LN612, PB5308LN612, AU5308LN613, MO5308LN613, PB5308LN613, AU5308LN625, MO5308LN625, PB5308LN625.
