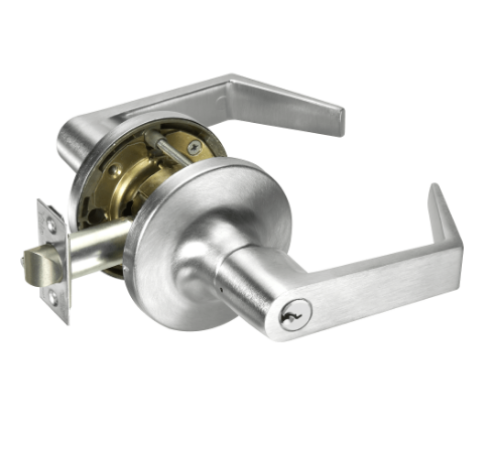

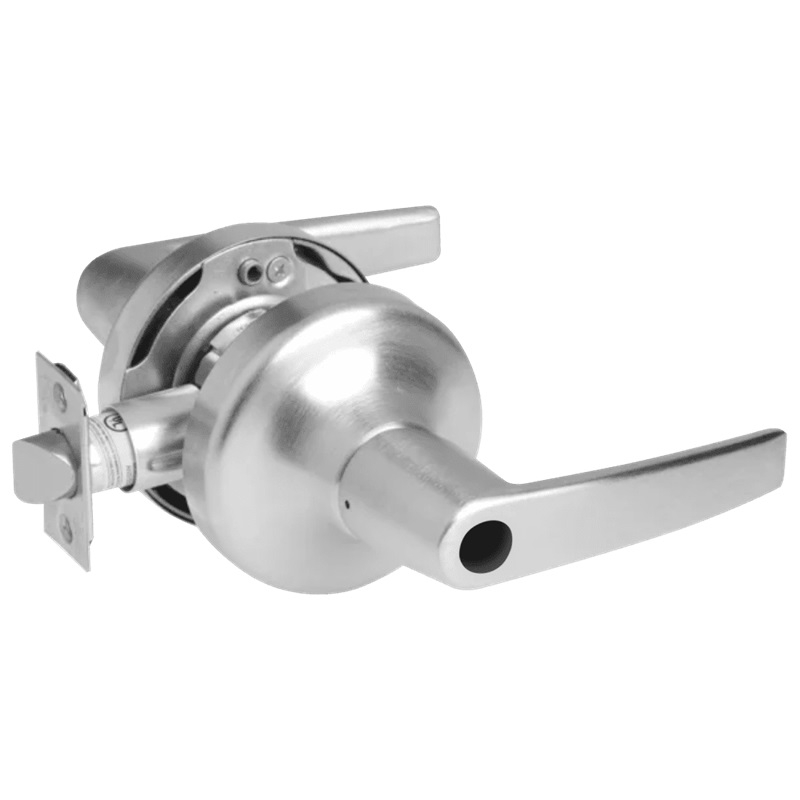

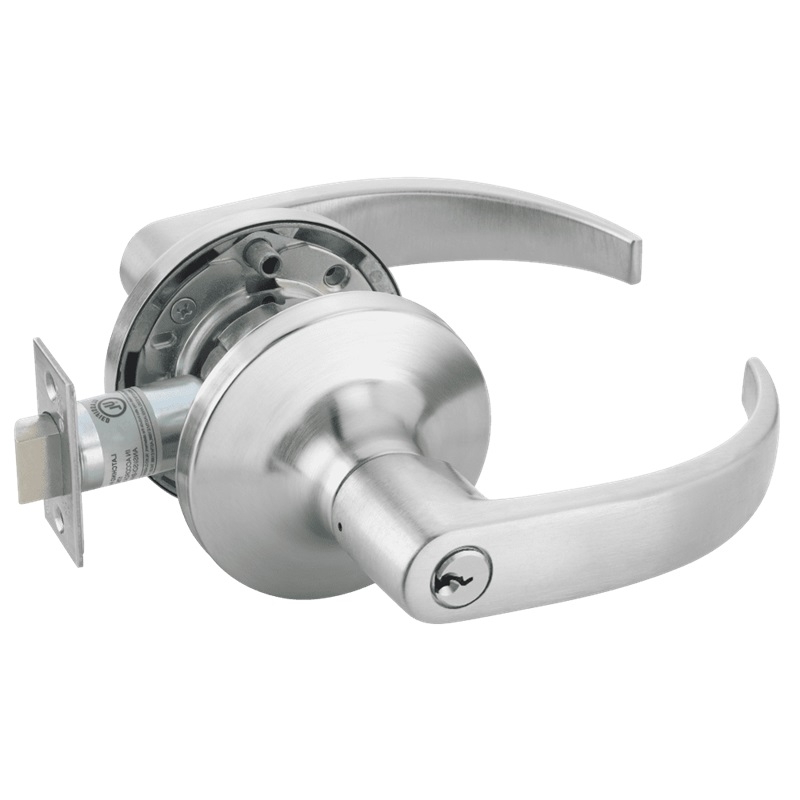

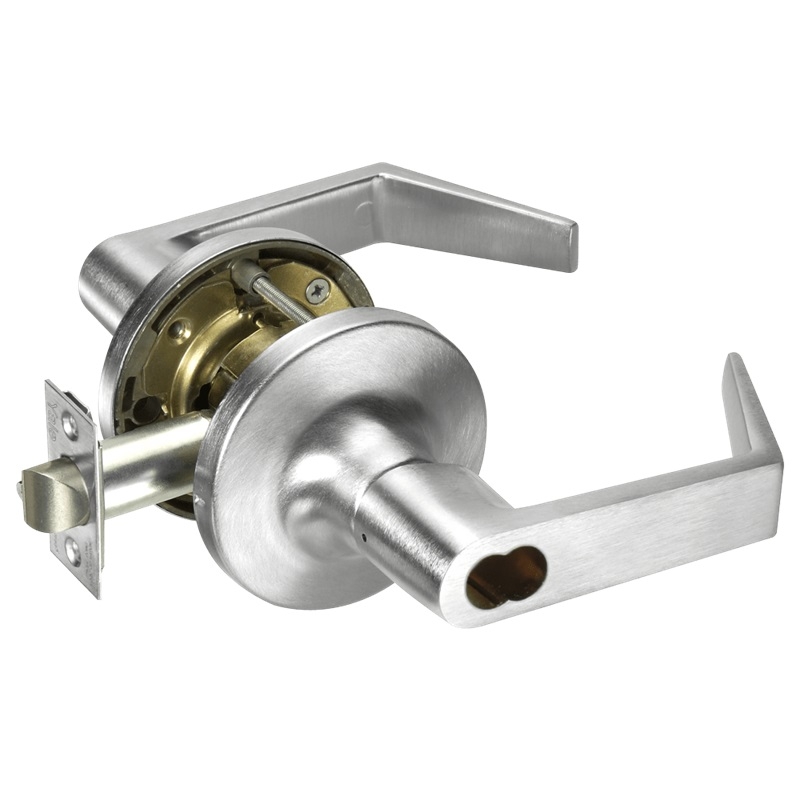

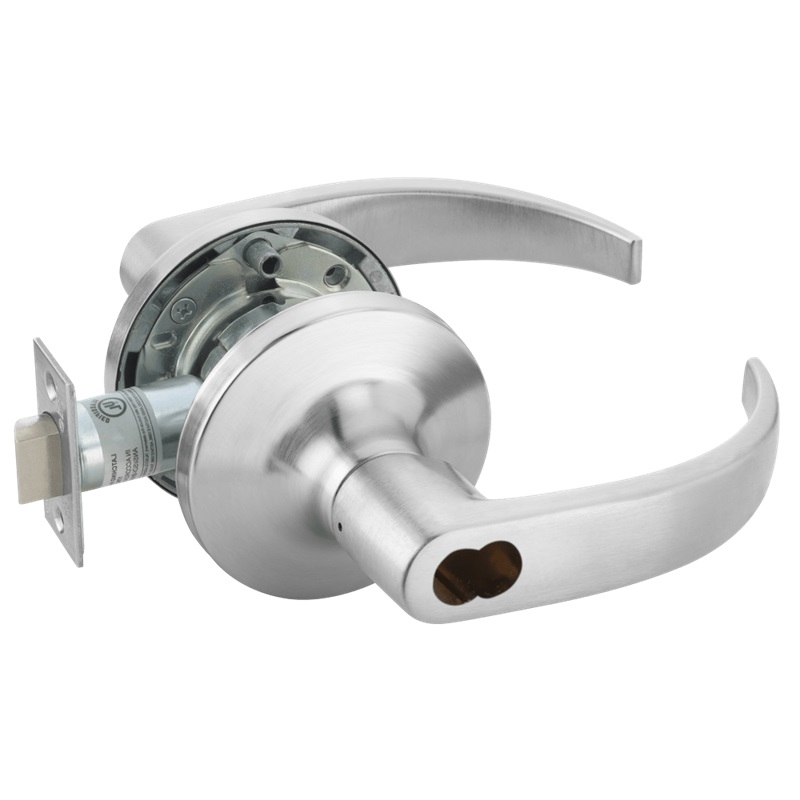

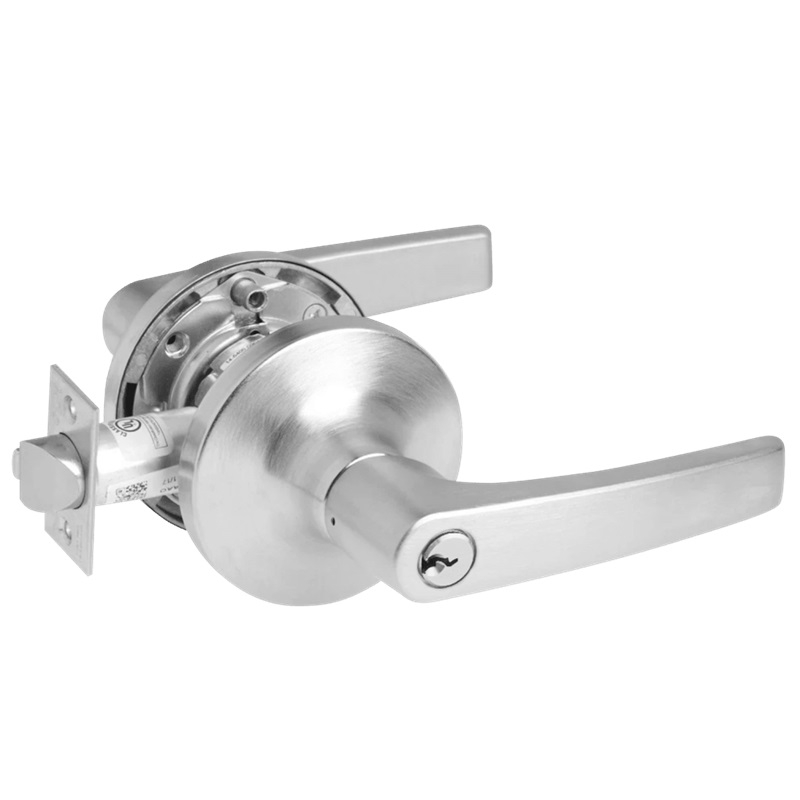

Accentra (Yale) 5418LN Intruder Classroom Security Lock
Intruder Classroom Security Lock-ANSI F110

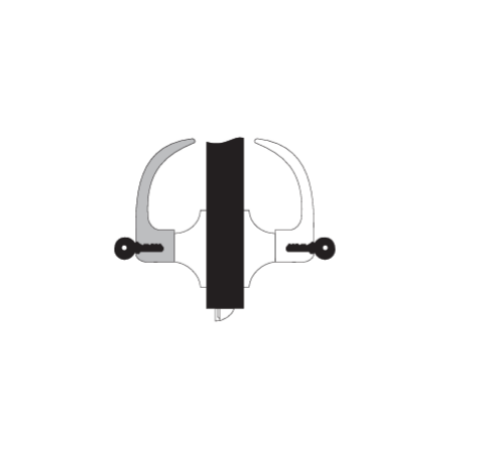

For classroom doors. Deadlocking latchbolt. Either lever operates latchbolt (except when outside lever is locked by key from either side). Outside lever remains locked upon egress Inside lever always active.

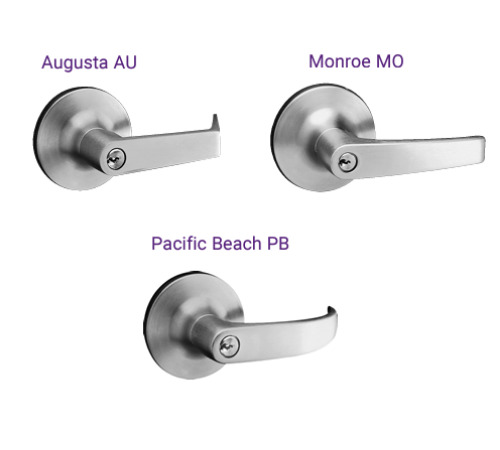

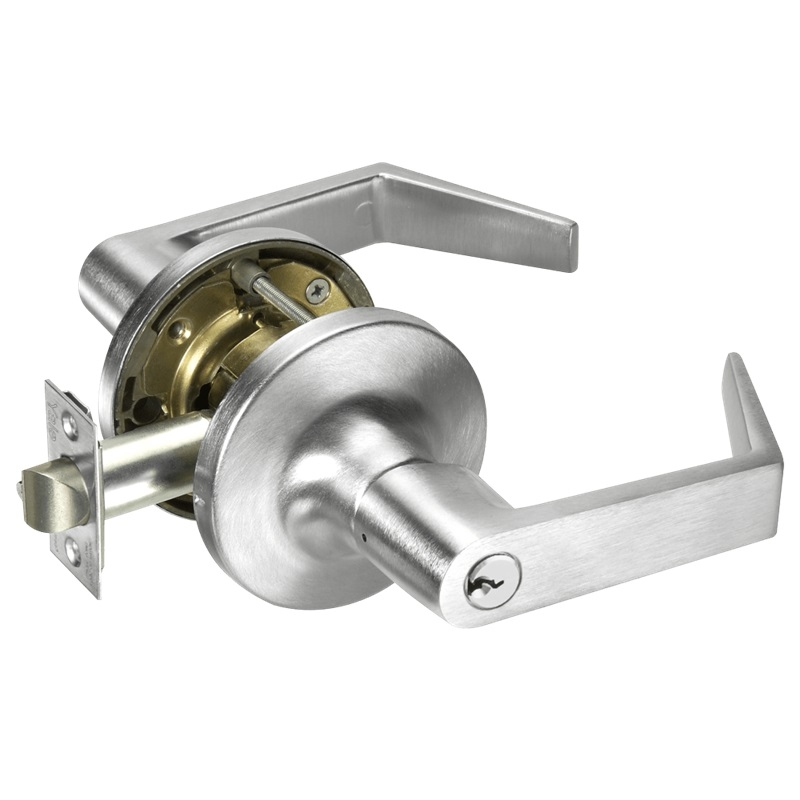

Lever: Augusta AU, Monroe MO, Pacific Beach PB
Finishes: 605 (US3) Bright Brass, 606 (US4) Satin Brass, 612 (US10) Satin Bronze, 613 (US10B) Dark Oxidized Satin Bronze, Oil Rubbed, 625 (US26) Bright Chromium Plated, 626 (US26D) Satin Chromium Plated
ANSI: Certified ANSI/BHMA A156.2, Series 4000 Grade 1.
Fire listings: UL - cUL Fire Label for all door functions up to 3 hours.
Non-Handed: Three non-handed lever options (Augusta, Monroe, and Pacific Beach) comply with ADA requirements for easy gripping and operation.
Door Thickness: Patented door adjustable rose support plates allow for easy adjustment of lockset to fit doors ranging in thickness from 1-3/4" to 2". Rose spacers available for 1-3/8" thick doors.
Lock Chassis: Lockset chassis constructed of heavy-gauge cold-rolled steel, trivalent chrome plated to protect against rust and corrosion.
Free wheeling lever trim: All locking functions feature the patented Free Wheeling lever mechanism. When the outside lever is locked, it will rotate freely up and down while remaining securely locked.
Backset: 2-3/4" (70mm) standard. Optional: 3-3/4" (95mm) andExtensionslinksup to 19".
Latchbolt: Stainless steel with 1/2" throw. Optional: 3/4" throw deadlocking fire latch for pair of doors.
Auxiliary Latchbolt: Deadlocking latchbolt prevents manipulation when door is closed.
Front: Wrought brass, bronze, or stainless steel, 2-1/4" (57mm) x 1-1/8" (29mm).
Strike: Wrought brass, bronze or stainless steel ANSI curved lip, 4-7/8" x 1-1/4" x 1-1/4" lip to center standard. Optional strikes, lip lengths and ANSI wrought strike box available.
Cylinder: Brass, 6-pin, Y1 (PARA) keyway standard.

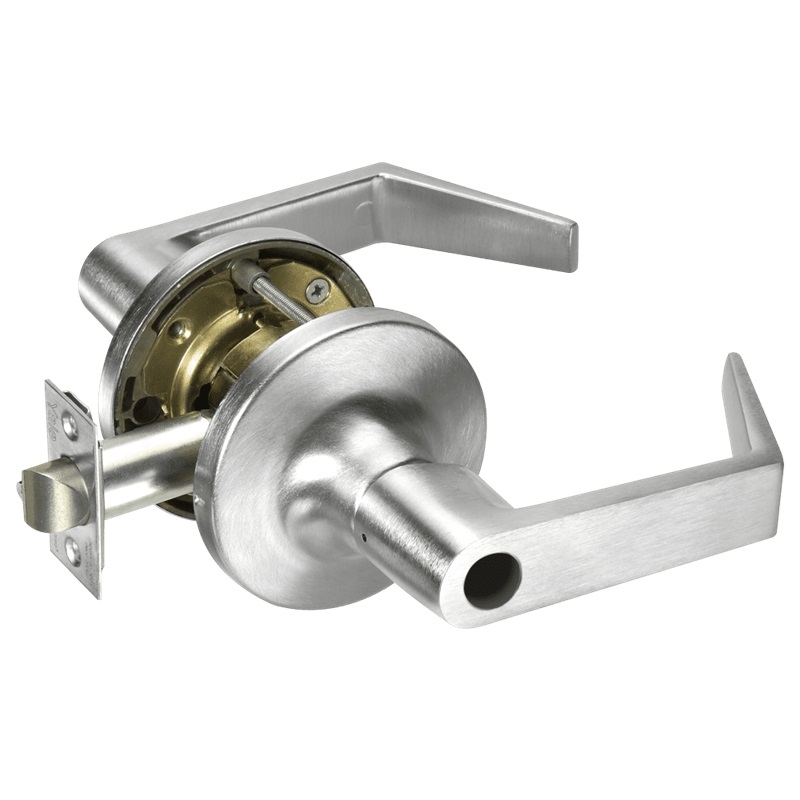

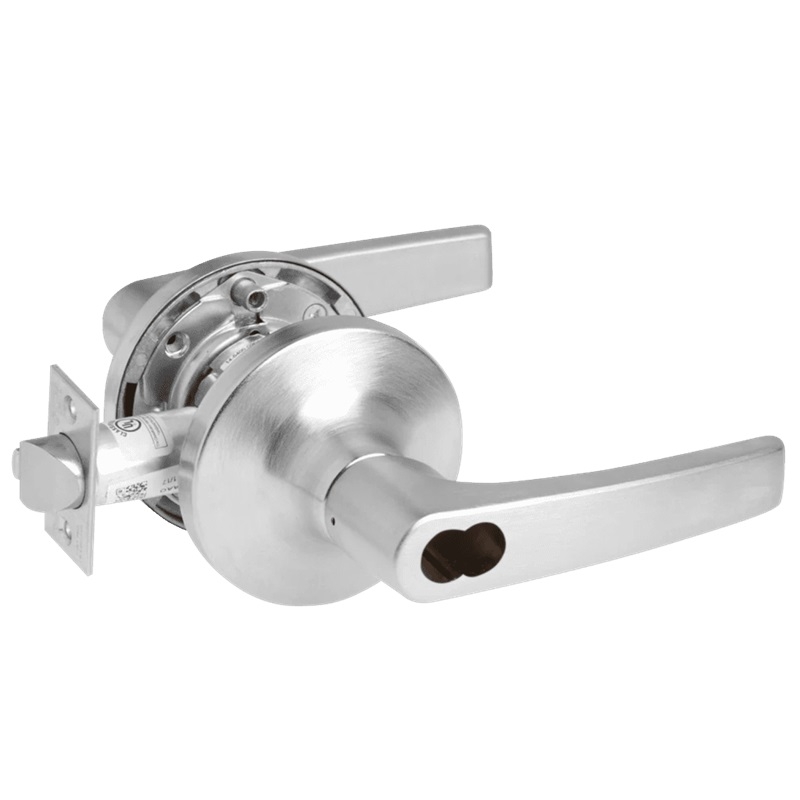

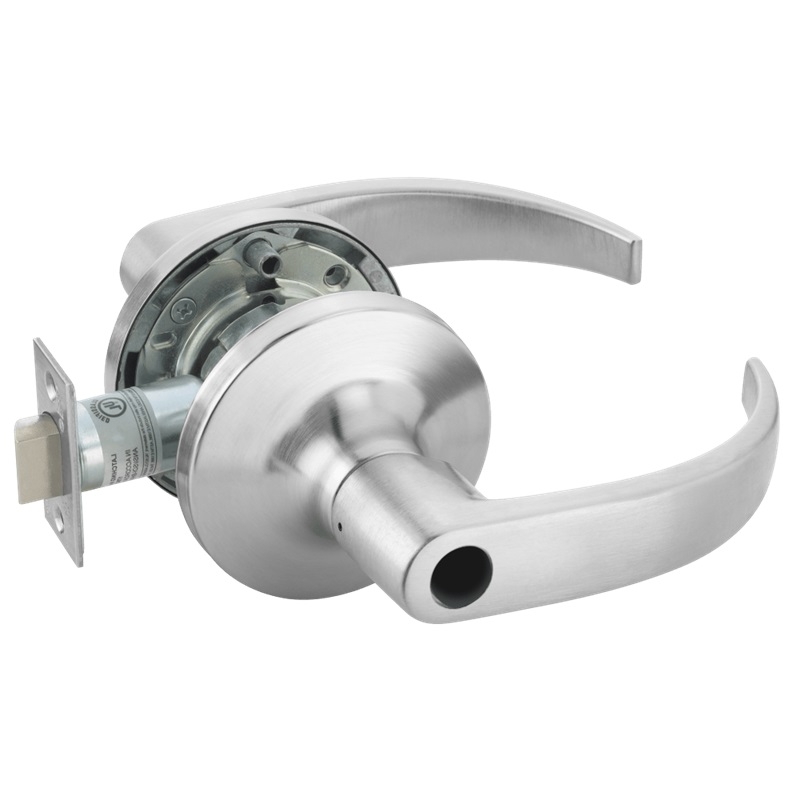

Keying Features Available: 7-pin,Master keying, Construction master keying, Interchangeable core (IC).
Keys: Two nickel silver standard.
Warranty: The 5400LN Series cylindrical lever lock carries a seven-year warranty. Likewise, the 5400LN carries a lifetime warranty against lever sag and lever spring breakage.
Model: Accentra (Yale) , 5418LN, 5418LNAU, 5418LNMO, 5418LNPB, AU5418LN, MO5418LN, PB5418LN, AU5418LN605, AU5418LN606, AU5418LN612, AU5418LN613, AU5418LN625, AU5418LN626, MO5418LN605, MO5418LN606, MO5418LN612, MO5418LN613, MO5418LN625, MO5418LN626, PB5418LN605, PB5418LN606, PB5418LN612, PB5418LN613, PB5418LN625, PB5418LN626
