About this item

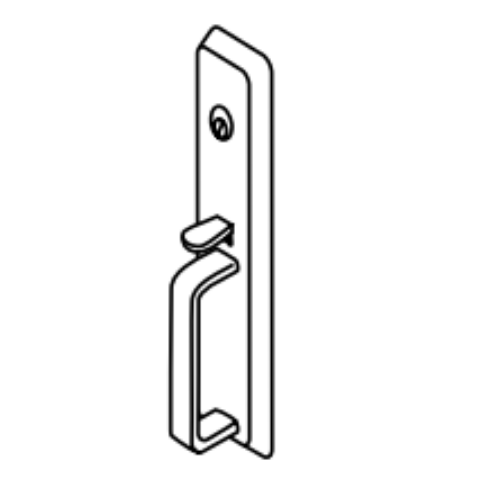

The Accentra 633F-630 is the classroom and storeroom function thumbpiece pull trim for Yale and Accentra panic bars and exit devices. If you searched "633f" or "yale panic bars" in the context of outside trim - this is the trim component that goes on the outside of the door to provide controlled access through an exit device. Accentra is the current brand name for Yale commercial hardware under ASSA ABLOY. The 633F model number and device compatibility carry forward directly from the Yale catalog.
What a Thumbpiece Pull Trim Is and Why It Matters
Exit device trim is the outside hardware that provides a means of entering a door fitted with a panic bar on the inside. The 633F specifically uses a thumbpiece - a small pivoting lever integrated into the pull that, when pressed by the thumb while gripping the pull, retracts the outside latch to allow entry. The cylinder controls whether the thumbpiece is locked or unlocked.
This is a fundamentally different mechanism from lever trim. Lever trim has a full lever handle - you grip and rotate the lever to enter. Thumbpiece trim has a pull bar with an integrated thumb-operated press to release the latch. For corridor openings, school wings, and institutional corridors where a pull bar is architecturally preferred over a lever, the thumbpiece pull is the correct specification. It provides a controlled entry function in the same clean pull-bar profile as an exit-only trim.
Classroom vs Storeroom: Two Functions in the 633F
The 633F covers two distinct ANSI functions depending on how the cylinder is used:
Classroom function (ANSI F05): Cylinder controls the thumbpiece - key from outside locks or unlocks the thumbpiece. When locked, the thumbpiece cannot retract the latch and no one can enter from outside without a key. When unlocked, the thumbpiece operates freely and anyone can enter. The inside is always free - inside egress always works regardless of the locked state. This is the correct function for classrooms, exam rooms, conference rooms, and offices where the room occupant or teacher needs to control outside access by key from the outside.
Storeroom function (ANSI F06): The thumbpiece is always locked - it can only be retracted by key from outside. The cylinder does not toggle between locked and unlocked states - it simply retracts the latch when a key is turned. No one can enter without a key, ever. Inside egress is always free. Correct for supply rooms, server rooms, storage areas, and any space where entry should always require a key.
The 633F delivers both functions in one trim - the specific behavior depends on how the cylinder and the connected exit device are configured at installation.
Yale Panic Bars: How the 633F Trim Connects to the Device
If you searched "yale panic bars" - the 633F is the trim, not the panic bar (exit device body). The panic bar is the interior crossbar device that mounts to the inside face of the door. The 633F mounts to the outside. They are two separate components that must be ordered and installed together.
The 633F is compatible with the following Yale and Accentra exit device series: 1500, 2100, 2100F (fire rated), 6100, 7100, and 7180 Series. This covers rim, surface vertical rod, and concealed vertical rod configurations. Confirm your exit device series before ordering trim - different series use different trim attachment points.
The trim thrubolts through the door to the exit device body rather than mounting independently. This is a structural connection, not just a surface mount. The thrubolt attachment means the trim's strength is tied to the exit device itself - it cannot be pried off the door face without also engaging the exit device body.
Less Cylinder: What to Order Separately
The 633F ships less cylinder. The 1-1/8-inch rim cylinder that operates the thumbpiece is not included and must be ordered separately. The correct cylinder is a rim format cylinder - the same format used in rim exit device trim across the Yale/Accentra trim line. Order the cylinder separately in your facility's keyway and keying, and specify KD (keyed different) or KA (keyed alike) based on your master key system requirements.
The cylinder mounts flush with the escutcheon face in 6-pin applications - a flush-mount cylinder reduces the cylinder's profile as an attack surface compared to a proud-mounted cylinder that projects from the plate.
Construction and Physical Specifications
The 633F escutcheon plate is solid forged - not stamped sheet metal - for dimensional consistency and resistance to forced entry attempts. Beveled sides on the escutcheon prevent pry tools from finding a purchase edge between the plate and the door face. The forged construction, beveled sides, and thrubolt attachment collectively make the 633F one of the most attack-resistant trim configurations in the Yale/Accentra catalog.
Plate dimensions are 2-3/4 inches by 15-1/2 inches by 5/8-inch depth. Pull center-to-center is 6-7/16 inches with 2-1/8-inch projection. Standard door thickness is 1-3/4 inches. For doors up to 2-1/4 inches or shim-mounted devices, specify door thickness at order.
633F vs Other Accentra Trim Functions
Selecting the right trim function requires matching the desired outside access behavior to the trim:
630F - exit only pull, no thumbpiece, no cylinder. Outside pull allows pulling door closed but does not retract latch.
632F - nightlatch pull, cylinder retracts latch on key turn. Always requires key for outside entry.
633F - classroom/storeroom thumbpiece pull, cylinder controls thumbpiece lock state. This listing.
635F - passage thumbpiece pull, thumbpiece always unlocked, no cylinder required.
Specifications
Model: Accentra 633F-630 / Yale 633F-630
Former Brand: Yale (now Accentra, ASSA ABLOY)
Trim Function: Classroom (ANSI F05) and Storeroom (ANSI F06) - cylinder controls thumbpiece
Compatible Devices: 1500, 2100, 2100F, 6100, 7100, 7180 Series
Cylinder: 1-1/8" rim cylinder, less cylinder - order separately
Cylinder Mount: Flush in 6-pin applications
Trim Type: Full escutcheon with thumbpiece pull
Construction: Solid forged escutcheon
Sides: Beveled for attack resistance
Mounting: Thrubolts to exit device body
Plate Dimensions: 2-3/4" x 15-1/2" x 5/8"
Pull Dimensions: 6-7/16" center-to-center x 2-1/8" projection
Door Thickness: 1-3/4" standard; up to 2-1/4" or shim-mounted on order
ANSI/BHMA: A156.3 Grade 1
Finish: 630 (satin stainless, US32D)
