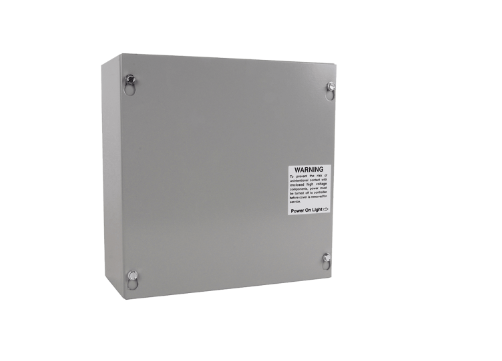

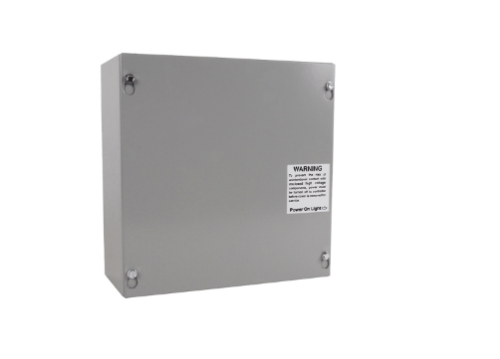

Accentra (Yale) 782 Controller - controls two P latch retraction exit devices

Accentra (Yale) *782 Controller*- controls two P latch retraction exit devices

Operation

Designed to control one or two electric latch retraction P exit devices. Equipped with two 20-second timers which can operate the exit devices together or independently. Requires a momentary or timed, dry contact input and can be interfaced with access control systems, automatic door operators, "blow open" type scenarios and has provisions for N/C fire alarm systems.

Note:The 782 is required for use with the P latch retraction option. Using any other power supply with the P option voids the warranty of the device.

Features

Two control inputs. Accepts normally closed dry contacts for device activation from a key switch, push button, access control or fire alarm system.

Two normally open control outputs for automatic door operators

Two P device outputs

Fire Alarm Interface input

24VDC output for audible or LEDS .25 AMP

Electrical Specifications

120 VAC 60Hz 750mA (max.)

Not available in 240V

38-42 VDC output

10 amp inrush

Listings

UL 294

UL CLASS 2 outputs

Applications

 P Electric Latch Retraction Option (not required with standard MELR option)
