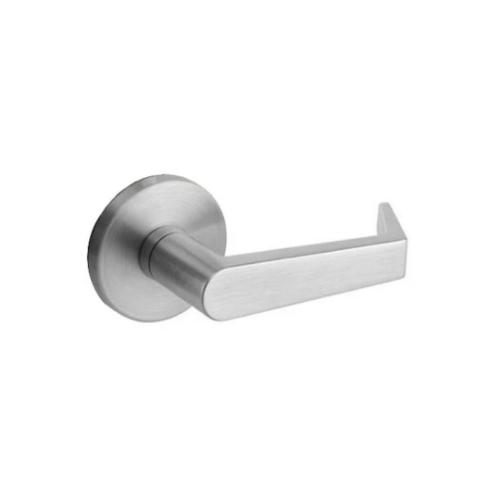

Accentra (Yale) AUR838AFL 626 Mortise Dummy Lever Trim Both Sides

Accentra (Yale) AUR838AFL 626 Mortise Dummy Lever Trim Both Sides, Augusta Lever, Satin Chrome Finish

Model: Accentra 838AFL / Yale 838AFL

Former Brand: Yale (now Accentra, ASSA ABLOY)

Series: 8800 Series Mortise Lock Platform

Function: Dummy lever trim both sides - push and pull only, no latch, no lock

Front: Plain rectangular, no bolt projection

Stabilizer: Spindle-bar stabilizer used with plain rectangular front

Trim Formats: Sectional rose (R suffix) and escutcheon (CN suffix)

Door Thickness: 1-3/4" standard; through 3-1/4" with standard trims

Handing: Field reversible; specify hand to reduce installation costs

ANSI/BHMA: A156.13 Series 1000, Operational Grade 1

Warranty: 10-year mechanical

Lead Shield Option: Available for lead-lined door applications

Finishes: 605, 606, 612, 625, 626, BSP, and others by lever selection

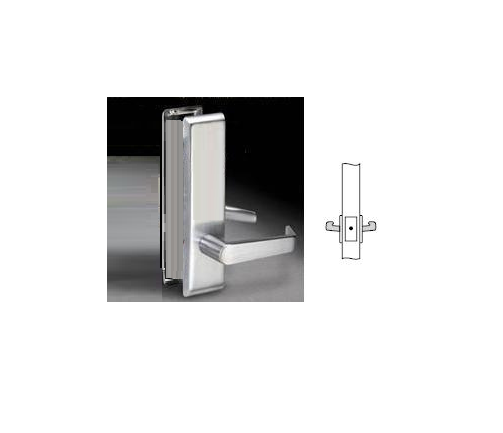

Dummy trim both sides: Push and pull only. Knob/lever both sides. Both knob/lever non-operational and rigid at all times. Plain rectangular front used with spindle-bar stabilizer.Available in all sectional and escutcheon trim.

Handing: Yale mortise locksare field reversible. These locks can be converted to accommodate the hand of the door. However, to reduce installation costs, it is recommended that the hand of the door be specified for each lockset ordered.

Door Thickness: 1-3/4" (44mm) standard.

Warranty: Mechanical mortise locks (10) year warranty and Electrified mortise (2) year warranty.

Model: 838AFL ARR, AUR, CRR, JNR, MOR, PBR, PNR, VIR, ZAUR, ZCRR, ZMOR, ZPBR, ARCN, AUCN, CRCN, JNCN, MOCN, PBCN, PNCN, VICN, ZAUCN, ZCRCN, ZMOCN, ZPBCN.

Certification/Compliance

A.D.A.The 8800FL meets accessibilityguidelines of the Americans withDisabilities Act and the requirementsof the Uniform Federal Accessibilitystandards and ANSI 117.1, all requiringease of accessibility for the handicapped.

ANSI: Certified ANSI/BHMA A156.13,Series 1000, Operational Grade 1(8800(FL) with CN escutcheon &SL8800 meet Security Grade 1).

Federal: Meets FF-H-106C.

UL /ULC: Listed by UnderwritersLaboratories Inc. for use on fire doorshaving a rating up to and including3 hours and for use on 20 minutewood doors. This pertains to singleswing doors not exceeding 4 feet inwidth and 8 feet in height and in doorsmounted in pairs not exceeding 8 feetin either direction
