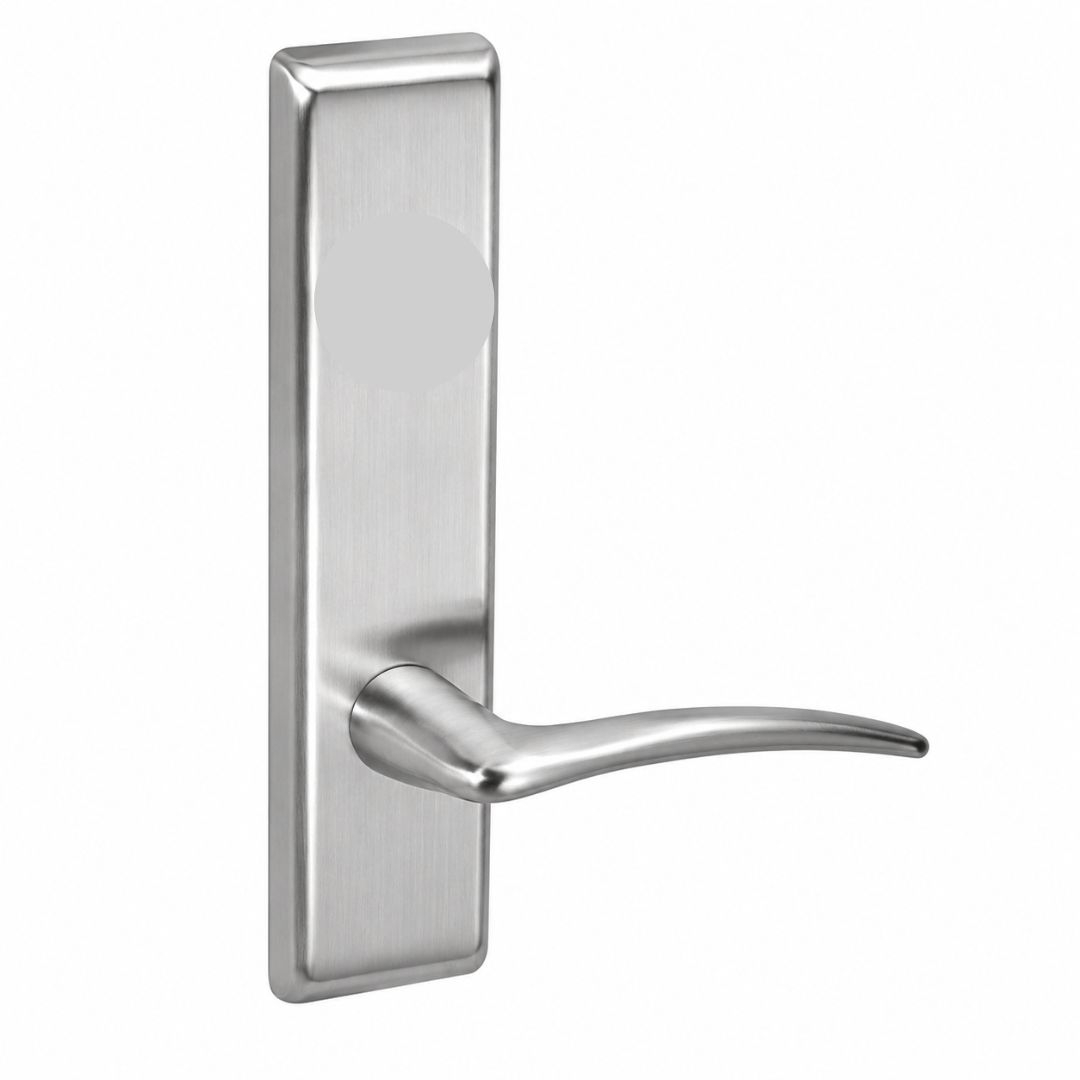

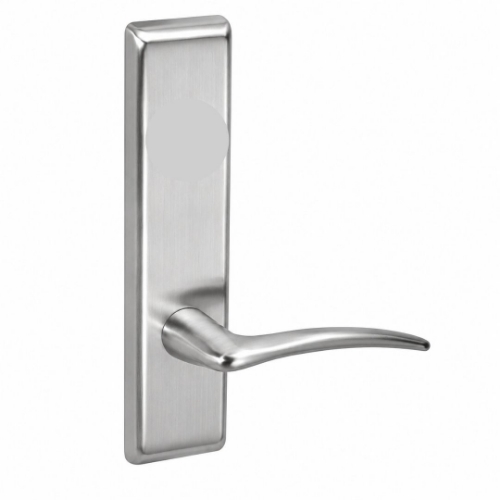

Accentra (Yale) ARCN855FL Mortise Dummy Lever Trim One Side, Arcadia Lever

Accentra (Yale) ARCN855FL Mortise Dummy Lever Trim One Side, Arcadia Lever

Model: Accentra 855FL / Yale 855FL

Former Brand: Yale (now Accentra, ASSA ABLOY)

Series: 8800 Series Mortise Platform

Function: Dummy lever trim one side - push or pull only, single face, lever rigid and non-operational

Trim Formats: Sectional rose (R suffix) and escutcheon (CN suffix)

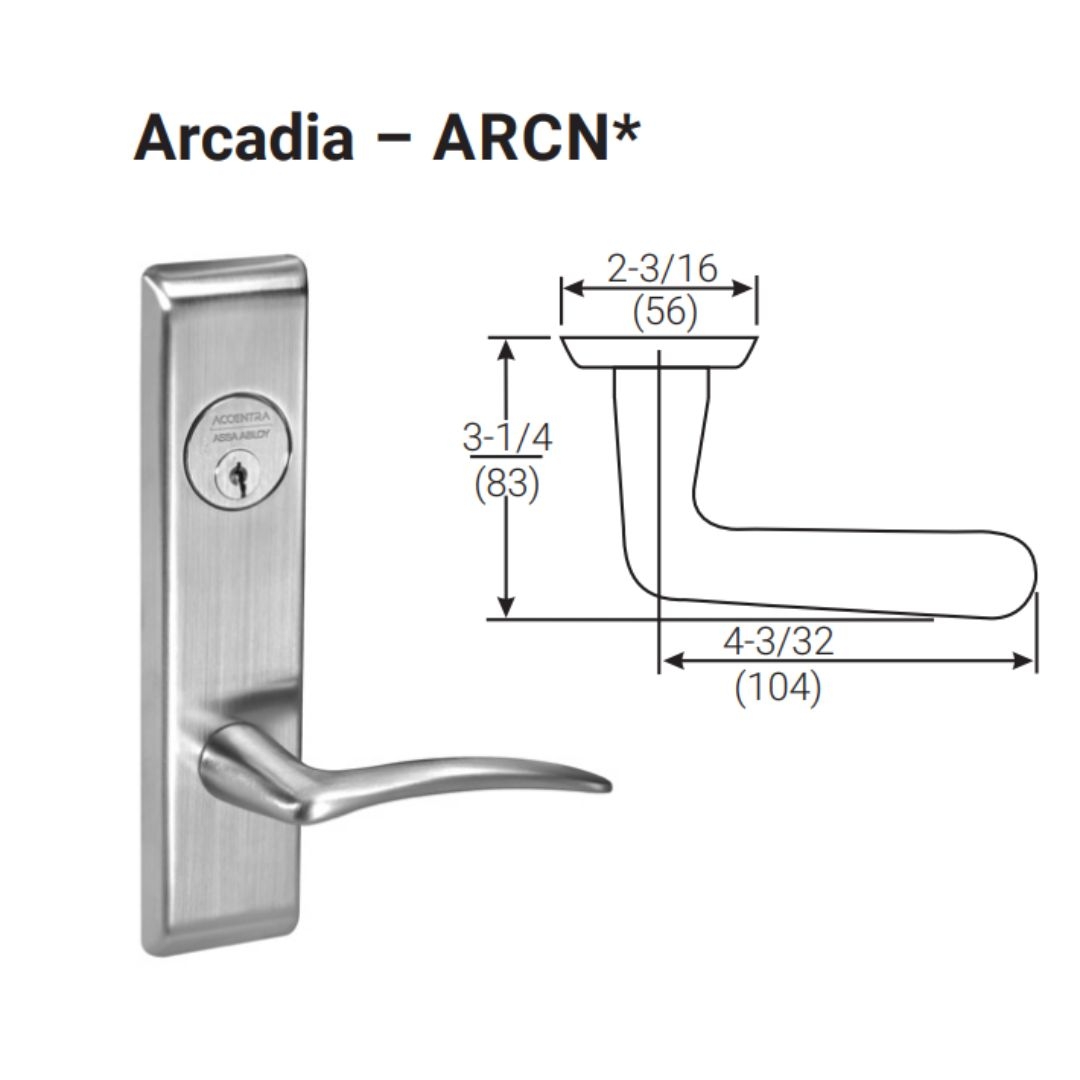

Lever Options: Arcadia (ARR/ARCN)

Door Thickness: 1-3/4" standard; through 3-1/4" with standard trims

Handing: Field reversible; specify hand to reduce installation costs (RH furnished if not specified)

ANSI/BHMA: A156.13, Series 1000, Operational Grade 1

Security Grade 1: 8800FL with CN escutcheon trim meets Security Grade 1

ADA: Compliant - all lever designs meet ANSI 117.1 and UFAS requirements

Knurled Option: Available - suffix "Knurled" on order

Lead Shield Option: Available - suffix "lead-lined" on order

UL/cUL: Listed for fire doors up to 3 hours; 20-minute wood doors; single swing to 4'x8', pairs to 8'x8'

Federal: Meets FF-H-106C

Warranty: 10-year mechanical

Finishes: 605, 606, 612, 625, 626, BSP, others by lever selection

Dummy trim one side: Push or pull only. Knob/lever one side. Knob/lever non-operational and rigid at all times. Available in all sectional and escutcheon trim.

Door Thickness: 1-3/4" (44mm) standard.

Warranty: Mechanical mortise locks (10) year warranty and Electrified mortise (2) year warranty.

Certification/Compliance

A.D.A.The 8800FL meets accessibilityguidelines of the Americans withDisabilities Act and the requirementsof the Uniform Federal Accessibilitystandards and ANSI 117.1, all requiringease of accessibility for the handicapped.

ANSI: Certified ANSI/BHMA A156.13,Series 1000, Operational Grade 1(8800(FL) with CN escutcheon &SL8800 meet Security Grade 1).

Federal: Meets FF-H-106C.

UL /ULC: Listed by UnderwritersLaboratories Inc. for use on fire doorshaving a rating up to and including3 hours and for use on 20 minutewood doors. This pertains to singleswing doors not exceeding 4 feet inwidth and 8 feet in height and in doorsmounted in pairs not exceeding 8 feetin either direction
