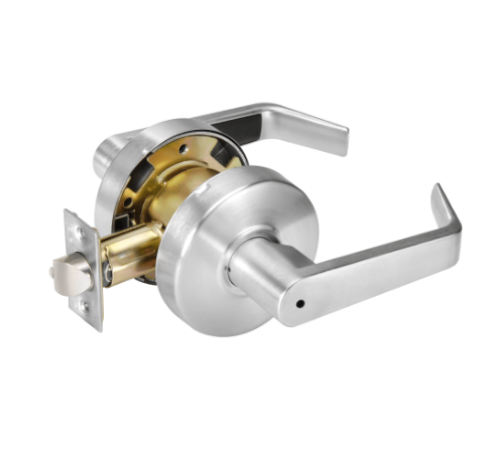

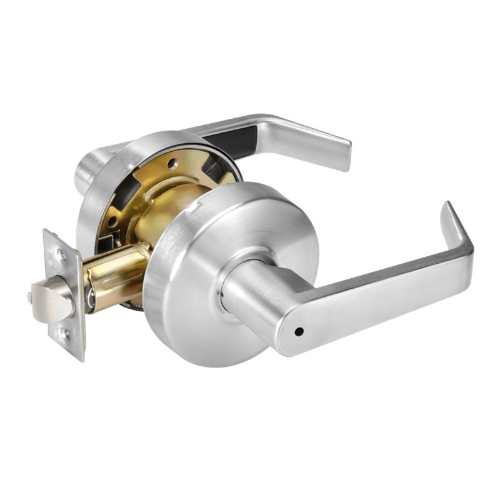

Accentra (Yale) AU4602LN Grade 2 Privacy Bath/Bedroom Cylindrical Lock, Augusta Lever

Accentra (Yale) AU4602LN Grade 2 Privacy Bath/Bedroom Cylindrical Lock, Augusta Lever

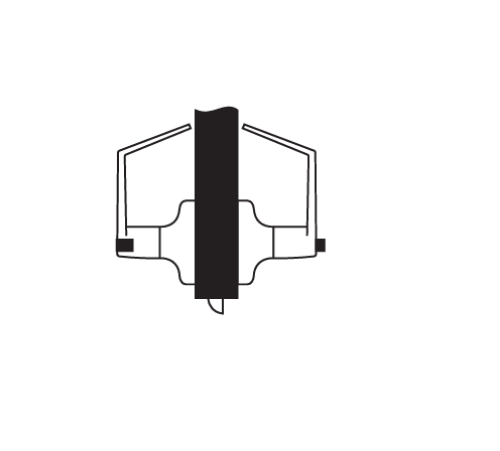

Function: 4602LN - Privacy Bath/Bedroom - F76A For lavatory or other privacy doors.Either lever operates latchbolt unless outside lever is locked by pushbutton inside.Button automatically releases when inside lever is turned or door is closed.Emergency release in outside lever.Inside lever always active.

Features: Field reversible handing for easy installationRange of functions and options for a wide variety of commercial applicationsAvailable in five trims and six finishesADA compliant for ease of accessibility

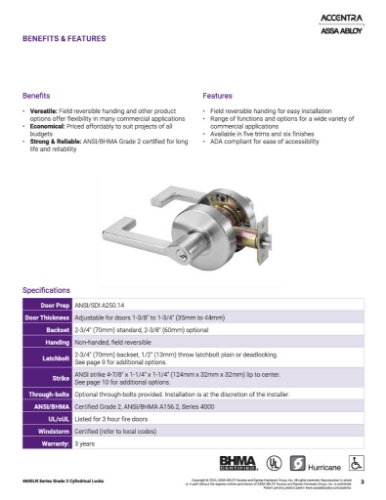

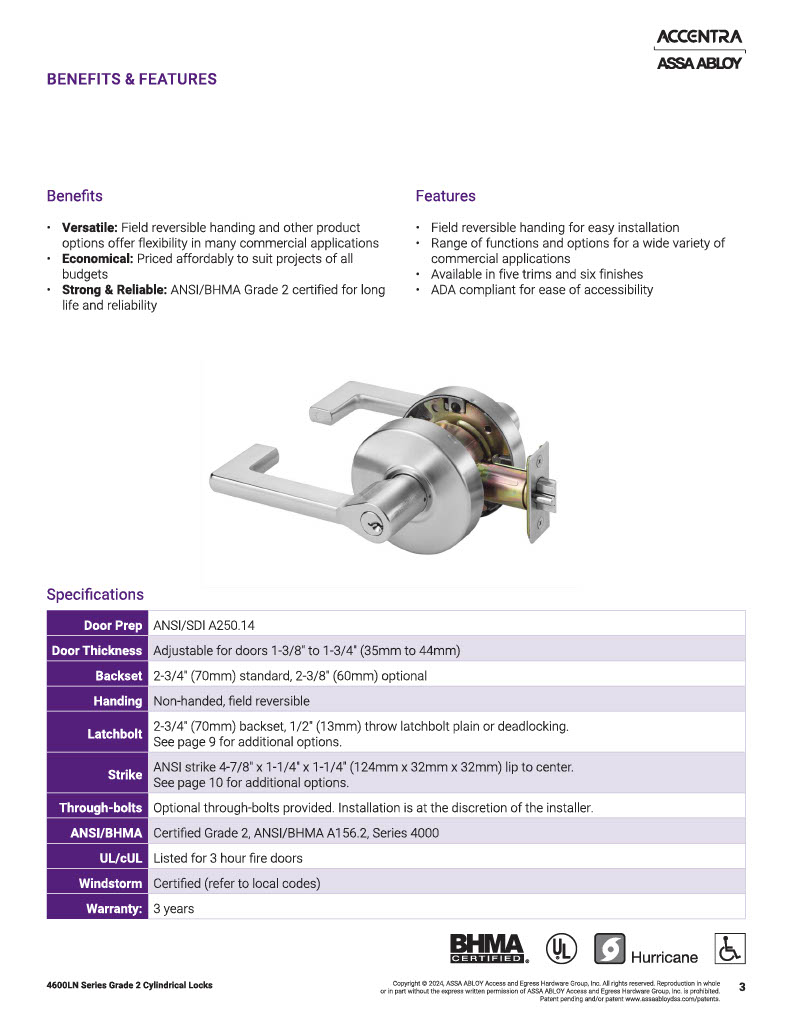

Benefits Versatile: Field reversible handing and other product options offer flexibility in many commercial applications

Economical: Priced affordably to suit projects of all budgets

Secure: Quality security from a trusted brand for over 170 years

Strong & Reliable: ANSI/BHMA Grade 2 certified for long life and reliability

Door Prep: ANSI/BHMA A156.115

Keying: All cylinders furnished standard 6-pin

Door Thickness: Adjustable for doors 1-3/8" to 1-3/4" (35mm to 44mm)

Backset: 2-3/4" (70mm) standard, 2-3/8" (60mm) optional

Handing: Non-handed, field reversible

Latchbolt: 2-3/4" (70mm) backset, 1/2" (13mm) throw latchbolt plain or deadlocking.

Strike: ANSI strike 4-7/8" x 1-1/4" x 1-1/4"(124mm x 32mm x 32mm) lip to center.

Through-bolts: Optional through-bolts provided. Installation is at the discretion of the installer.

ANSI/BHMA: Certified Grade 2, ANSI/BHMA A156.2, Series 4000

UL/cUL: Listed for 3 hour fire doors

Windstorm: Certified, check local codes.

Warranty: 3 years

Models: Accentra (Yale) 4600, Accentra (Yale) 4602AU 626, Accentra (Yale) 4602AU 605, Accentra (Yale) AU4602 626, Accentra (Yale) AU4602 626, Accentra (Yale) AU4602 613E, Accentra (Yale) 4602 626
