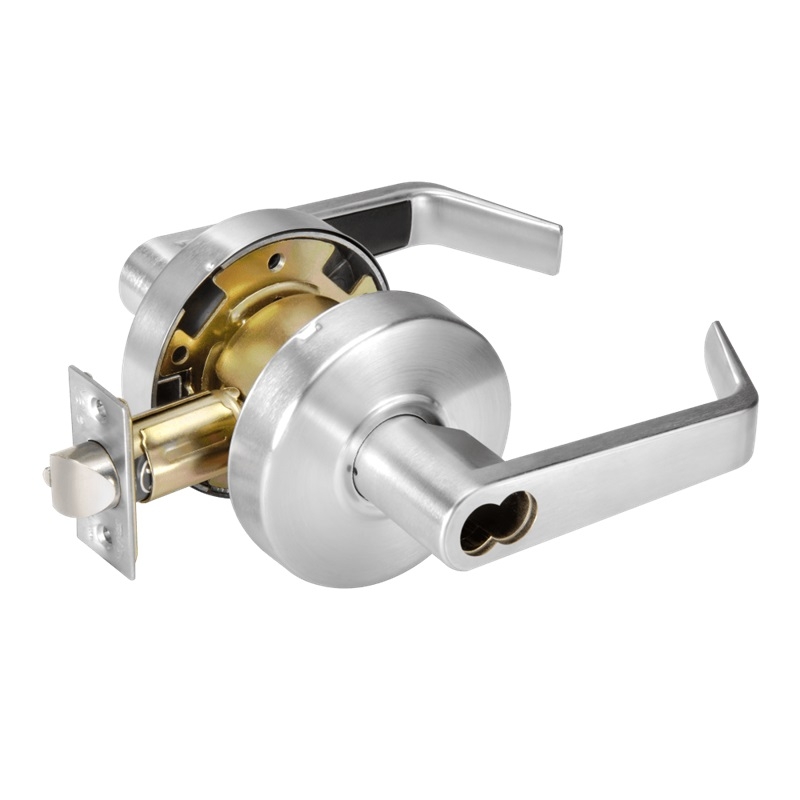

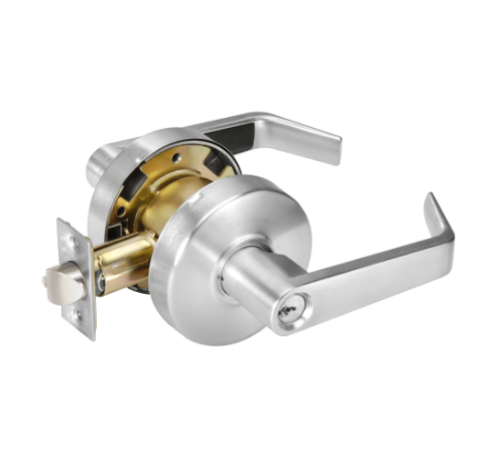

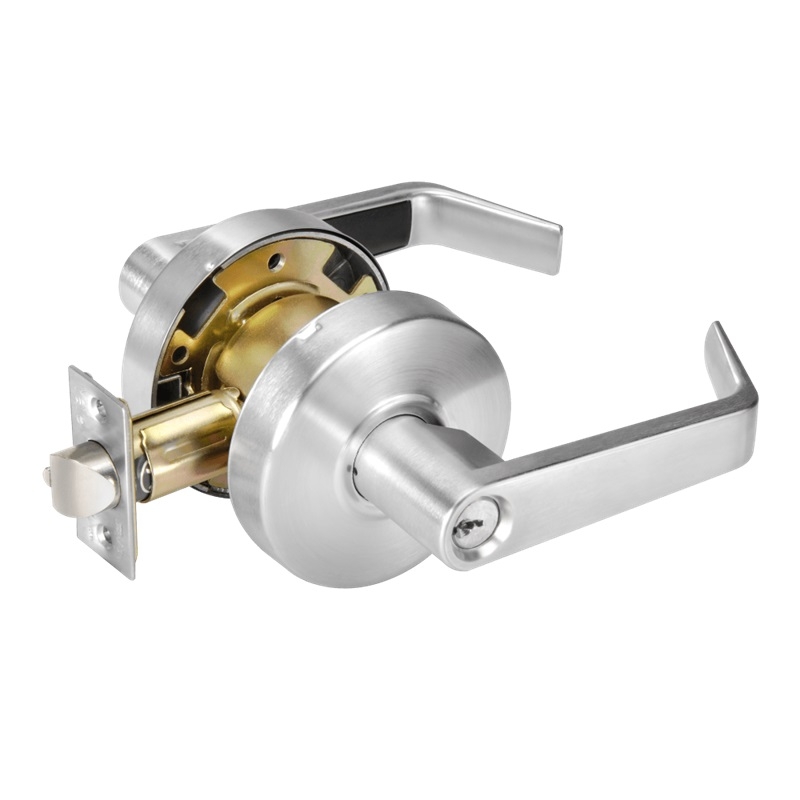

Accentra (Yale) AU4608LN Grade Classroom Cylindrical Lock, Augusta Lever

Accentra (Yale) AU4608LN Grade Classroom Cylindrical Lock, Augusta Lever

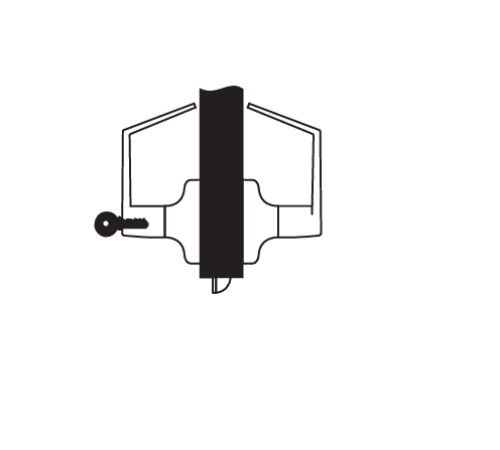

Function: 4608LN - Classroom - F84. For classroom or utility room doors. Deadlocking latchbolt. Either lever operates latchbolt (except when outside lever is locked by key). Inside lever always active. Key releases outside lever.

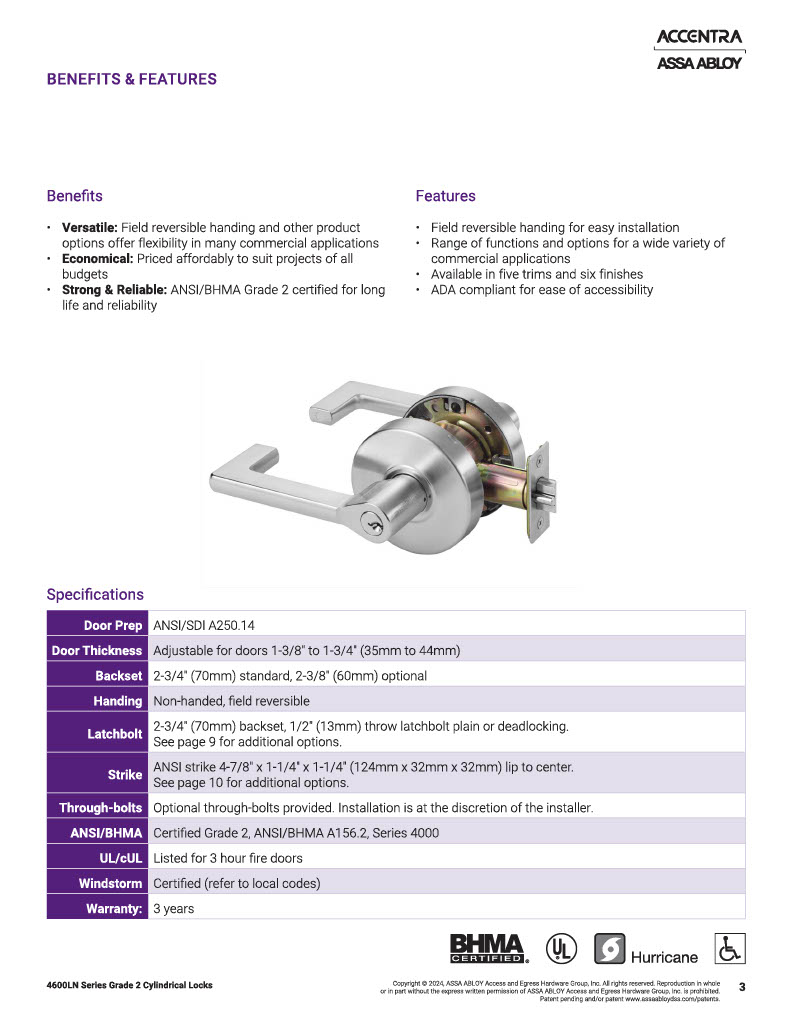

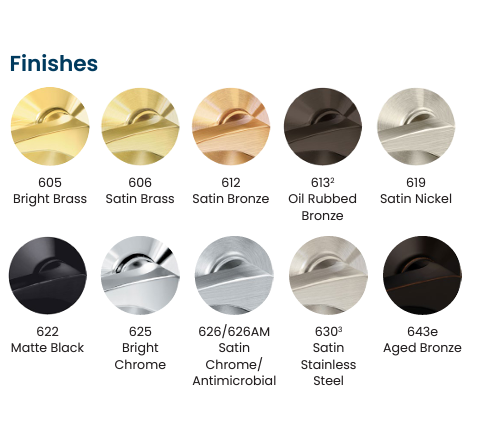

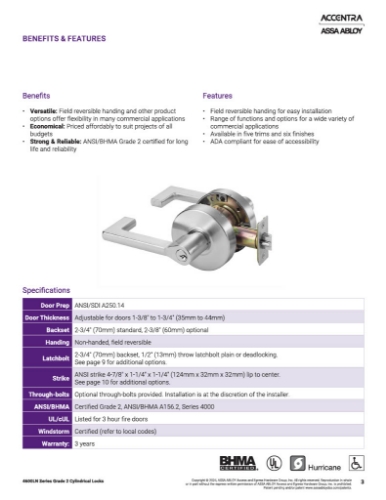

Features: Field reversible handing for easy installation. Range of functions and options for a wide variety of commercial applications. Available in five trims and six finishes. ADA compliant for ease of accessibility.

Benefits Versatile: Field reversible handing and other product options offer flexibility in many commercial applications

Economical: Priced affordably to suit projects of all budgets

Secure: Quality security from a trusted brand for over 170 years

Strong & Reliable: ANSI/BHMA Grade 2 certified for long life and reliability

Door Prep: ANSI/BHMA A156.115

Keying: All cylinders furnished standard 6-pin

Door Thickness: Adjustable for doors 1-3/8" to 1-3/4" (35mm to 44mm)

Backset: 2-3/4" (70mm) standard, 2-3/8" (60mm) optional

Handing: Non-handed, field reversible

Latchbolt: 2-3/4" (70mm) backset, 1/2" (13mm) throw latchbolt plain or deadlocking.

Strike: ANSI strike 4-7/8" x 1-1/4" x 1-1/4"(124mm x 32mm x 32mm) lip to center.

Through-bolts: Optional through-bolts provided. Installation is at the discretion of the installer.

ANSI/BHMA: Certified Grade 2, ANSI/BHMA A156.2, Series 4000

UL/cUL: Listed for 3 hour fire doors

Windstorm: Certified, check local codes.

Warranty: 3 years

Models: Accentra (Yale) 4600, Accentra (Yale) 4608AU 626, Accentra (Yale) 4608AU 605, Accentra (Yale) AU4608 626, Accentra (Yale) AU4608 626, Accentra (Yale)  AU4608 613E, Accentra (Yale) 4608 626
