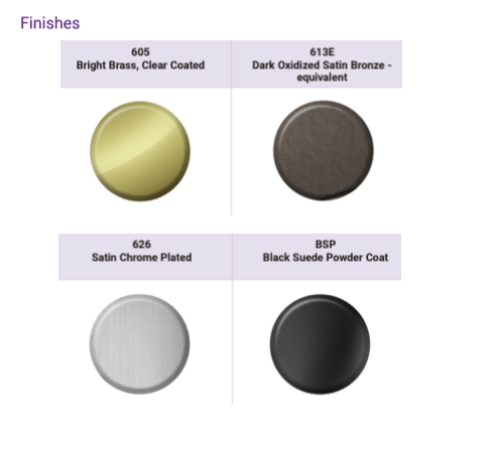

Accentra (Yale) AUYPL02-605 Grade 1 Privacy Cylindrical Lock, Augusta Lever, Rose w/Icons Only Indicator, Green/Red, Bright Brass Finish
Product Details

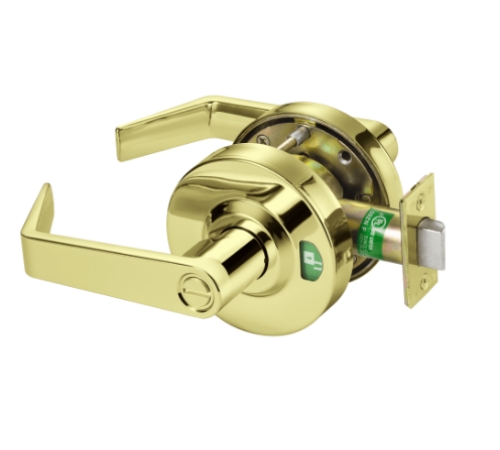

Accentra (Yale) *AUYPL02-605 Grade 1 Privacy Cylindrical Lock, Augusta Lever, Non-Keyed, Rose with Icons Only Indicator, Green/Red, Non-Handed, Bright Brass Finish*
Applications:Office buildings, Restaurants, Schools, Hospitals, Warehouses, Airports, Places of Worship, Convenience Stores, Travel Centers

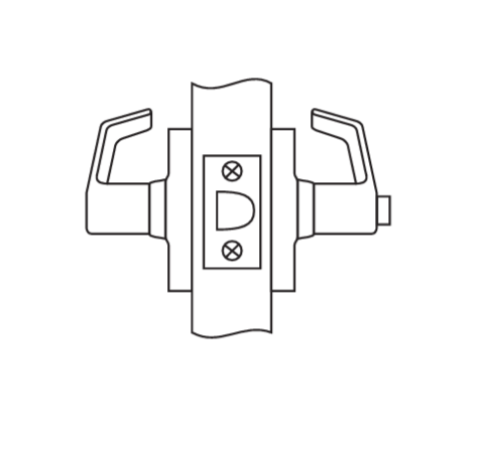

YPL02 (F76A)Privacy Lock with Indicator
Either lever operates latchbolt unless outside lever is locked by pushbutton inside.Pushbutton inside changes indicator display status outside.Rotating inside lever and/or closing door unlocks outside lever and changes indicator display status outside.Coin turn in outside lever for emergency access.Inside lever always active.Outside lever rigid when in locked position.Features:

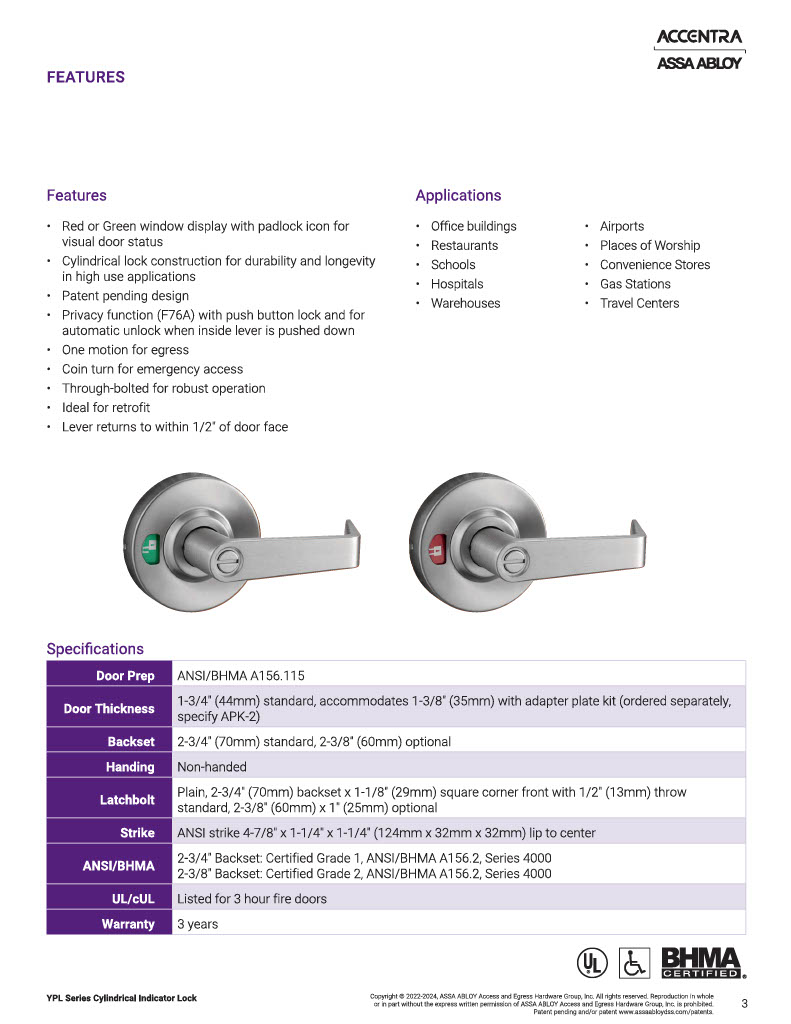

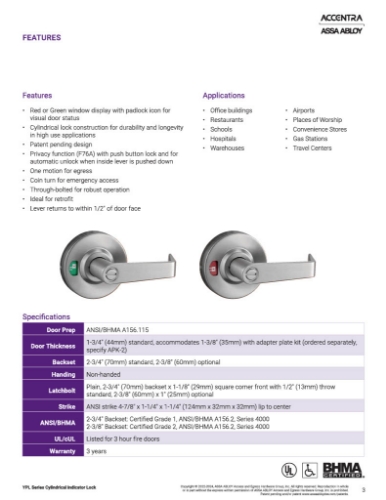

Red or Green window display with padlock icon for visual door statusCylindrical lock construction for durability and longevity in high use applicationsPatent pending designPrivacy function (F76A) with push button lock and for automatic unlock when inside lever is pushed downOne motion for egressCoin turn for emergency accessThrough-bolted for robust operationIdeal for retrofitLever returns to within 1/2" of door faceTechnical Specifications and Listings
Door Thickness:The YPL02 installs on 1-3/4" thick doors standard.
ADA:The YPL02 meets accessibility guidelines of the Americans with Disabilities Act and the requirements of the Uniform Federal Accessibility Standards and ANSI 117.1, all requiring ease of accessibility for the handicapped.
ANSI/BHMA:2-3/4" Backset: Certified ANSI/BHMA A156.2, Series 4000 Grade 1.
2-3/8" Backset: Certified ANSI/BHMA A156.2, Series 4000 Grade 2.
Fire Listings:UL/cUL Listed for up to 3 hours.Note: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Yale Locks and Hardware makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official(Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.
Installation:YPL02 Cylindrical locks conform to ANSI/BHMA Specifications
A156.115 which cover hardware preparations for steel doors and steel frames and A156.115-W which cover hardware preparations for wood doors with wood or steel frames.
Warranty:The YPL02 cylindrical lever lock carries a three-year warranty.
