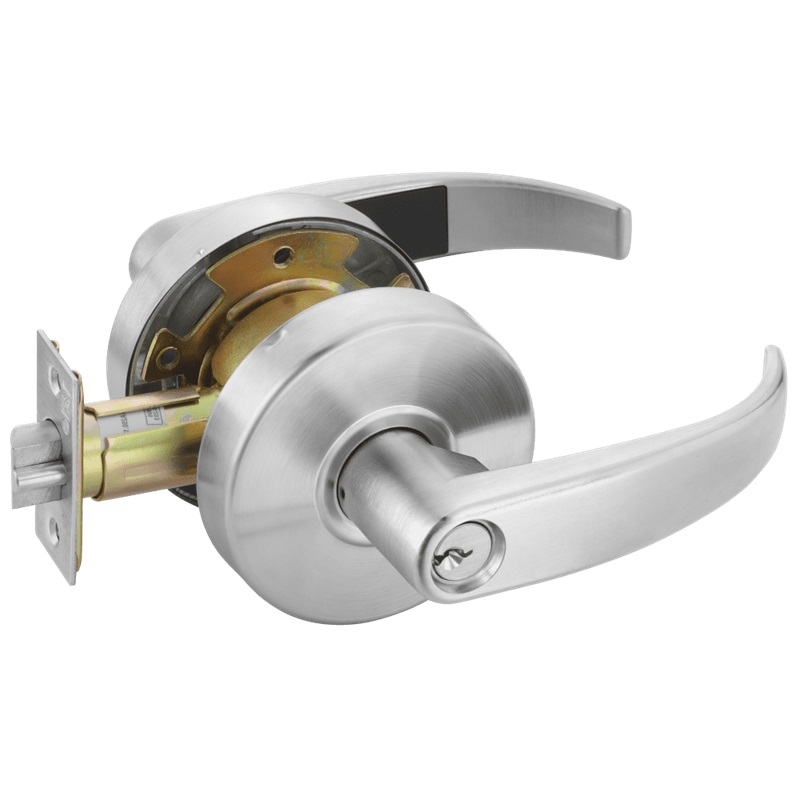

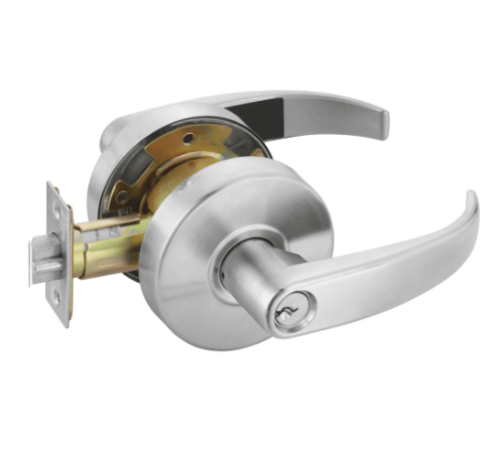

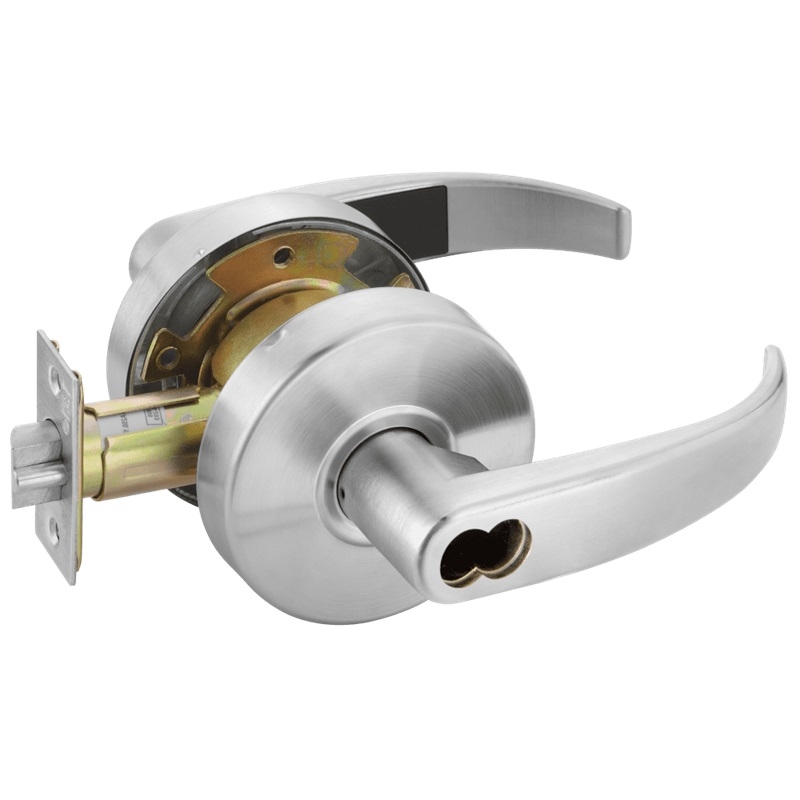

Accentra (Yale) PB4607LN Grade Entrance or Office Cylindrical Lock, Pacific Beach Lever

Accentra (Yale) PB4607LN Grade Entrance or Office Cylindrical Lock, Pacific Beach Lever

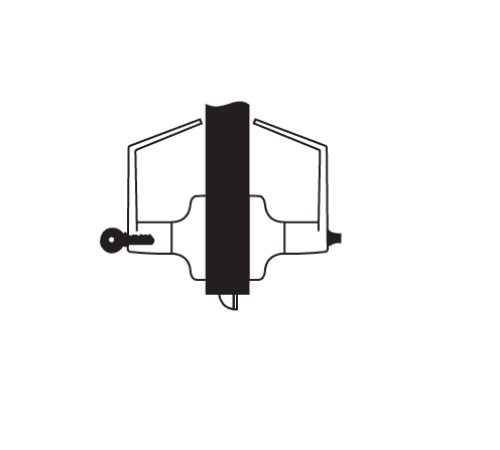

Function: 4607LN - Entrance or Office - F109 For entrance, general home or office doors. Deadlocking latchbolt. Either lever operates latchbolt (except when outside lever is locked from inside). Pushing turn button in inside lever locks outside lever. (Automatically releases when inside lever is turned or key is rotated in locked outside lever.) Outside lever may be retained in locked position by pushing and rotating turn button 90 clockwise to a horizontal position; not released until turn button is manually returned to the vertical position. Latchbolt is operated by key in outside lever or by rotating inside lever. Inside lever always active.

Features: Field reversible handing for easy installationRange of functions and options for a wide variety of commercial applications. Available in five trims and six finishes. ADA compliant for ease of accessibility.

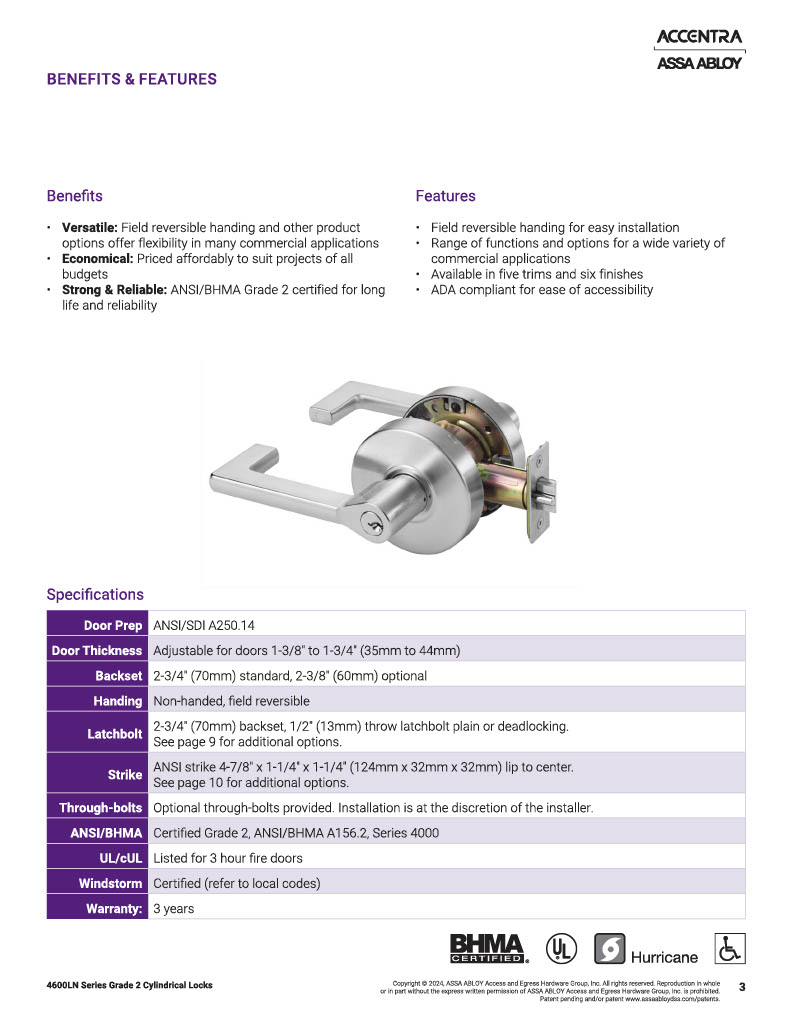

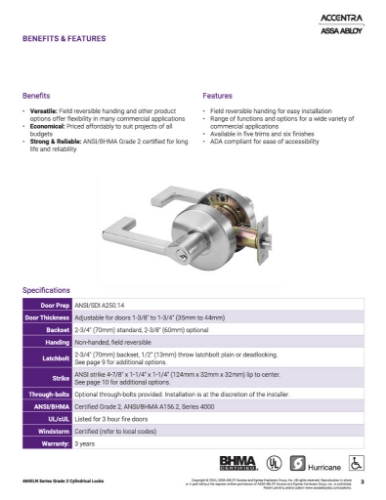

Benefits Versatile: Field reversible handing and other product options offer flexibility in many commercial applications

Economical: Priced affordably to suit projects of all budgets

Secure: Quality security from a trusted brand for over 170 years

Strong & Reliable: ANSI/BHMA Grade 2 certified for long life and reliability

Door Prep: ANSI/BHMA A156.115

Keying: All cylinders furnished standard 6-pin

Door Thickness: Adjustable for doors 1-3/8" to 1-3/4" (35mm to 44mm)

Backset: 2-3/4" (70mm) standard, 2-3/8" (60mm) optional

Handing: Non-handed, field reversible

Latchbolt: 2-3/4" (70mm) backset, 1/2" (13mm) throw latchbolt plain or deadlocking.

Strike: ANSI strike 4-7/8" x 1-1/4" x 1-1/4"(124mm x 32mm x 32mm) lip to center.

Through-bolts: Optional through-bolts provided. Installation is at the discretion of the installer.

ANSI/BHMA: Certified Grade 2, ANSI/BHMA A156.2, Series 4000

UL/cUL: Listed for 3 hour fire doors

Windstorm: Certified, check local codes.

Warranty: 3 years

Models: Accentra (Yale)  4600, Accentra (Yale) 4607AU 626, YAccentra (Yale) le 4607AU 605, Accentra (Yale) AU4607 626, Accentra (Yale) AU4607 626, Accentra (Yale) AU4607 613E, Accentra (Yale) 4607 626
