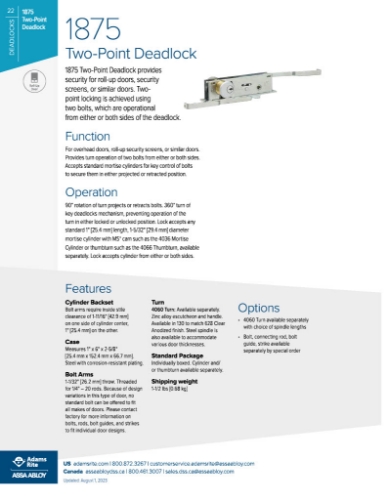

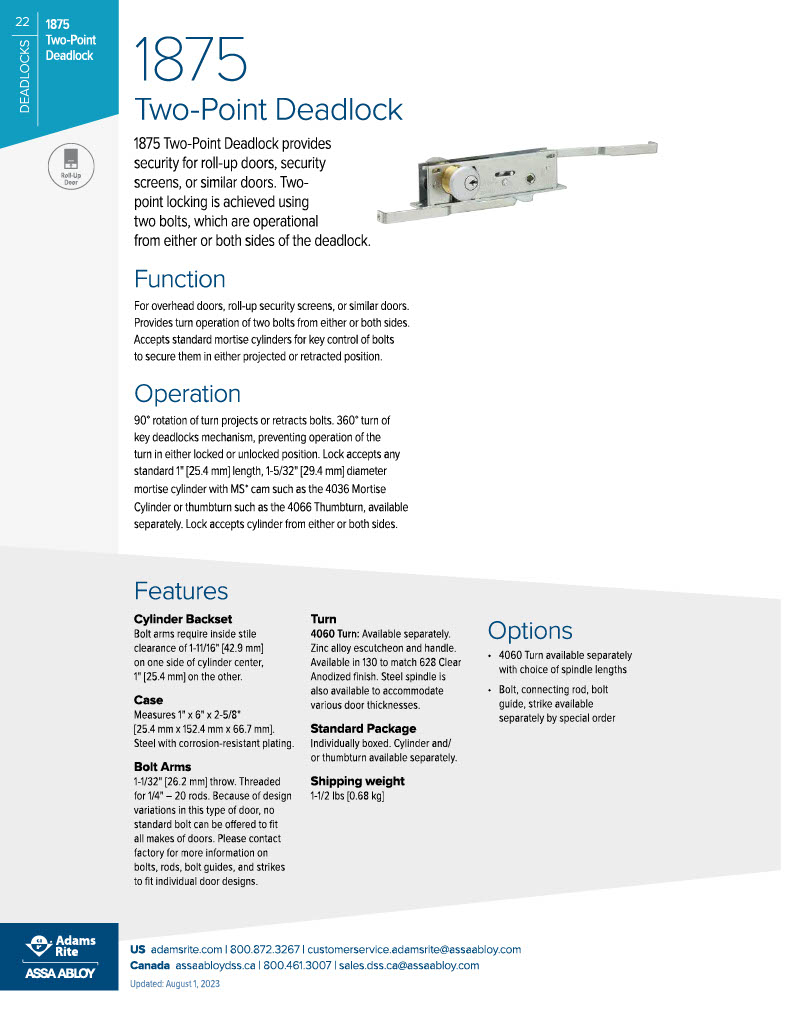

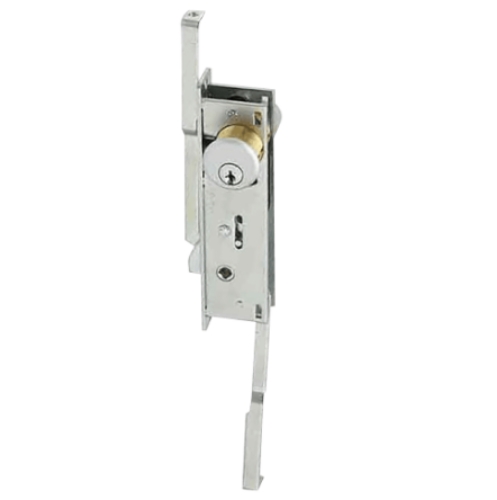

Adams Rite 1875-603-IB Two-point deadlock - Individually Boxed

Adams Rite 1875-603-IB Two-point deadlock - Individually Boxed - Zinc plated steel

Function:

For overhead “garage" doors, roll-up security screens, or similar doors. Provides turn operation of two bolts from either or both sides. Accepts standard mortise cylinders for key control of bolts to secure them in either projected or retracted position.

Operation:

90 Degree rotation of turn throws or retracts bolts. 360 Degree turn of key deadlocks mechanism, preventing operation of the turn in either locked or unlocked position.

Specifications:

Cylinder Backset: Bolt arms require inside stile clearance of 1-11/16" on one side of cylinder center, 1" on the other.

Case: Steel with corrosion-resistant plate, measures 1" x 6" x 2-5/8".

Bolt Arms: 1-1/32" throw. Threaded for 1/4" – 20 rods. Because of design variations in this type of door, no standard bolt can be offered to fit all makes of doors. Contact the Adams Rite factory concerning bolts, rods, bolt guides, and strikes to fit individual door designs.

4060 Turn: Zinc alloy escutcheon and handle. Finish is US26D. Steel spindle is also available to accommodate various door thicknesses.

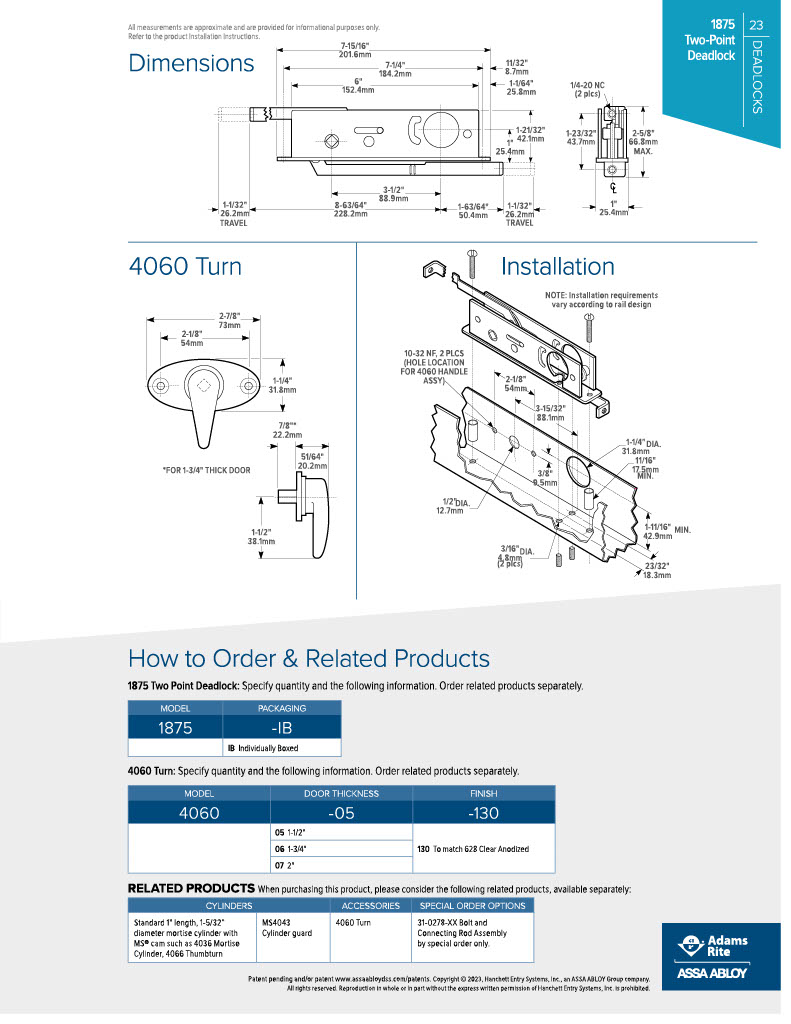

Cylinder Cam: 1875 Two-Point Deadlocks are operable by any standard 1-5/32" diameter mortise cylinder with MS® cam (not included), dimensioned as shown. Cylinders with MS® cams can be readily obtained from most cylinder manufacturers.

For Mortise CylindersClick Here.

Options: 4060 Turn shown is available with choice of spindle lengths. Bolts, connecting rods, strikes and Cylinders also available separately.
