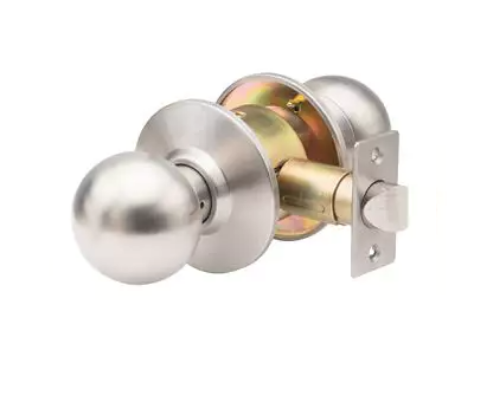

Imperial DL-SVB40 Privacy Knob Set

Imperial DL-SVB40 Privacy Grade 2 Knob Set

Function:Privacy latch - ANSI F76 Push button locking from interior, Lock can be opened by rotating interior lever or knob. Safety unlocks for emergencies.

Door Thickness:1 3/4" - 2"

Backset:2 3/4" - face 1 1/8"- 2 1/4"

Cylinder:Schlage "C" keyway

Keying:Schlage 6 pin keyed

Key:2 six pin nickel plated

Latch:1/2" projection stainless steel 3 hour UL

Bore: 2 1/8" hole retrofits all cylindrical locksets Strike: ANSI 1 1/4" - 4 7/8" strike

Non-handed and reversible

Warranty:Lifetime mechanical. 10 year finish.

Finish:US32D - US3

Model:Imperial DL-SVB40-US32D, DL-SVB40,DL-SVB40 US3, DL-SVB40 Passage, PASLOCK SV-B40 2 3/4 US3 ANSI STRIKE
