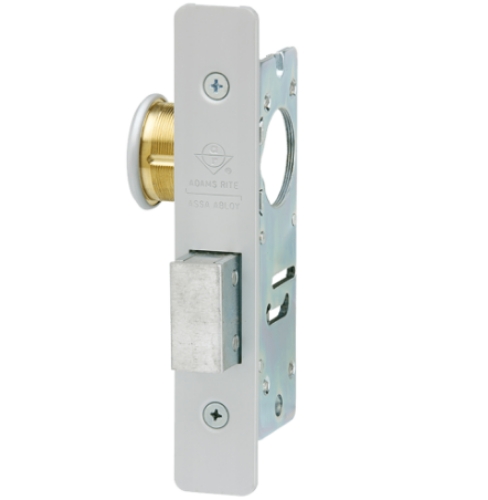

Adams Rite 4070 Short Throw Deadbolt - Flat Faceplate

Adams Rite 4070 Short Throw Deadbolt - Flat Faceplate

Function:

For installation where the long-throw MS® Deadlock cannot be accommodated, the smaller 4070 offers the longest practical throw for a conventionally projected bolt from a narrow stile. Operates with one-half key turn of any standard mortise type cylinder or cylinder type thumbturn. This product is not designed for use in bottom rail.

Operation:

180 Degree turn of key or thumbturn projects or retracts the bolt. Accepts any standard 1-5/32" mortise cylinder from either or both sides (not included). Cylinder must have special cam to fit.

For Mortise CylindersClick Here.

Specifications:

Cylinder Backset: 7/8", 31/32", or 1-1/8" only

Case: Steel with corrosion-resistant plating. 1" x 6" x depth. Depth varies by backset.   Bolt: 5/8" x 1-1/4" x 5/8" throw.

Handing: Non Handed

Cylinder Cam: Operable by any standard mortise cylinder with special cam.(not included)

Strike: In metal installations, a slot in door jamb serves as strike.

Standard Package: Individually boxed with machine screws for mounting. Cylinders and/or thumbturns available separately.

Model: 4070-10-313, 4070-20-313, 4070-30-313, 4070-10-628, 4070-20-628, 4070-30-628
