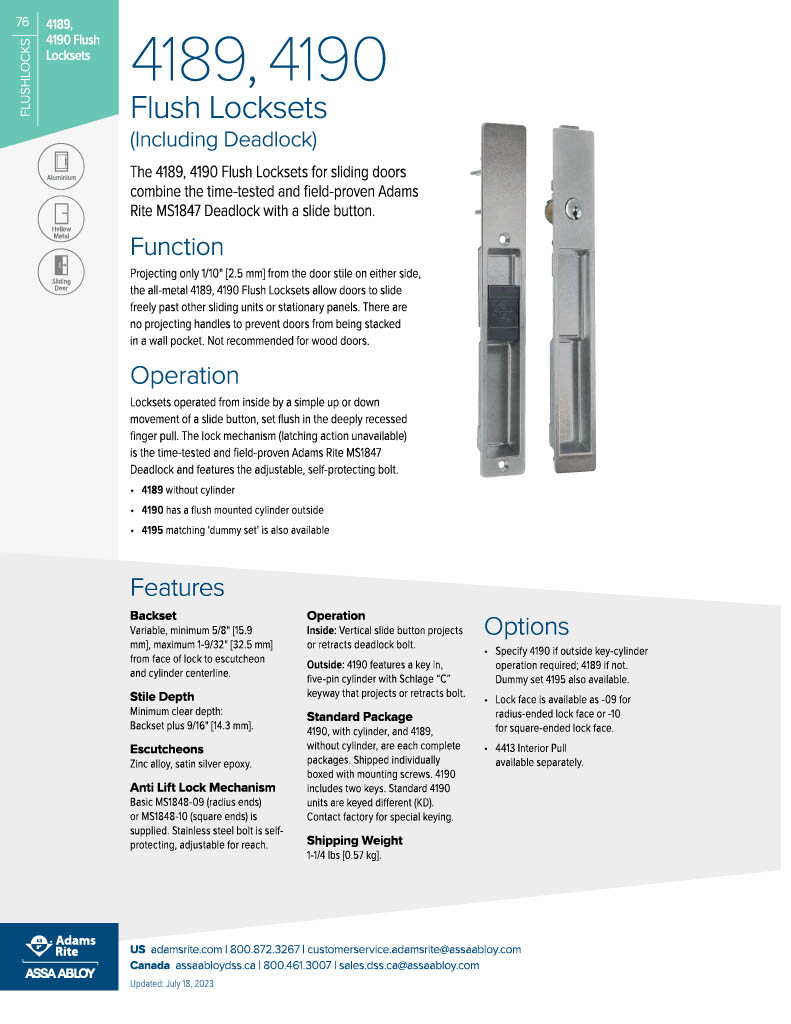

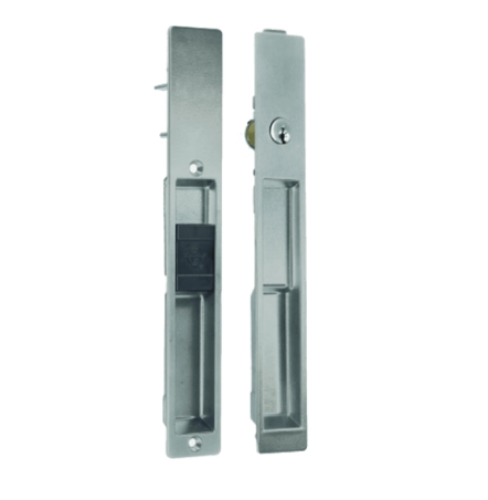

Adams Rite 4190-IB Flush Lockset for sliding doors - With Cylinder - Individually Boxed

Adams Rite 4190-IB Flush Lockset for sliding doors - With Cylinder - Individually Boxed

Outside Operation: Key in, five-pin cylinder with Schlage “C" keyway, projects or retracts bolt.

Function:

Projecting only 1/10" from the door stile on either side, 4190 lockset allows door to slide freely past other sliding units or stationary panels. There are no projecting handles to tear draperies or prevent the door from being “stacked" in a wall packet. 4190 has a flush mounted cylinder outside Not recommended for wood doors.

Operation:

lockset is operated from inside by a simple up or down movement of a slide button, set flush in the deeply recessed finger pull. The lock mechanism (latching action unavailable) is the time-tested and field-proven Adams Rite MS1847 and features the adjustable, self-protecting bolt. Matching “dummy set" is also available (4195).

Specifications:

Inside Operation: Vertical slide button projects or retracts deadlock bolt.

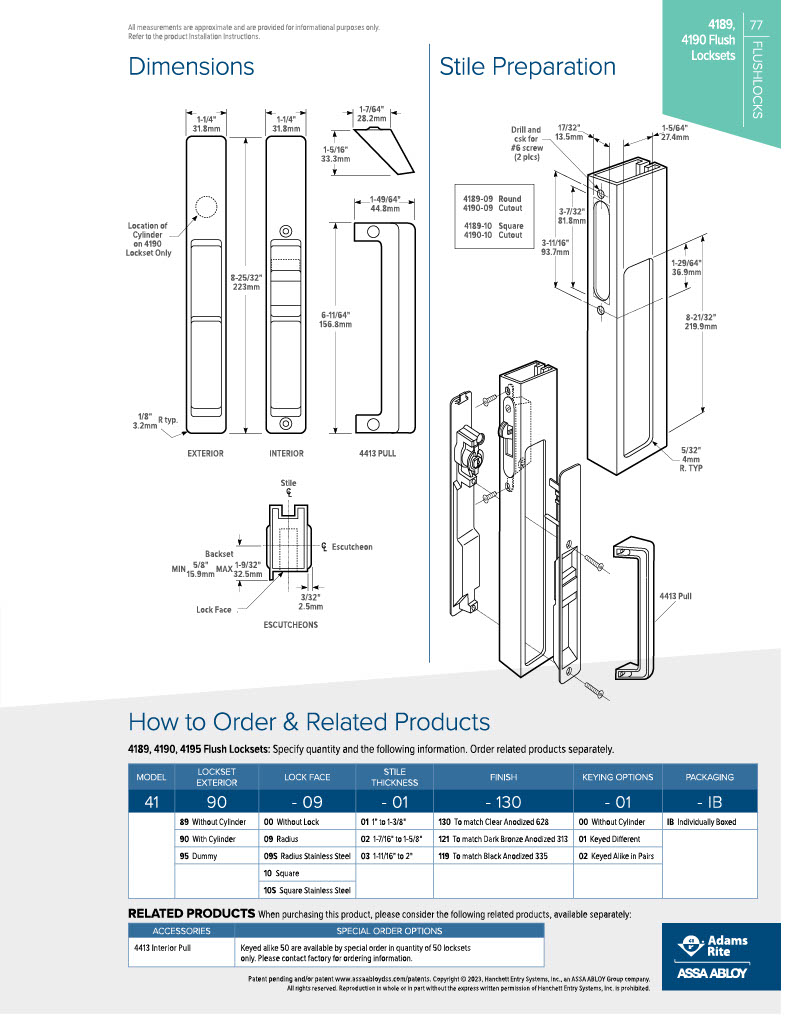

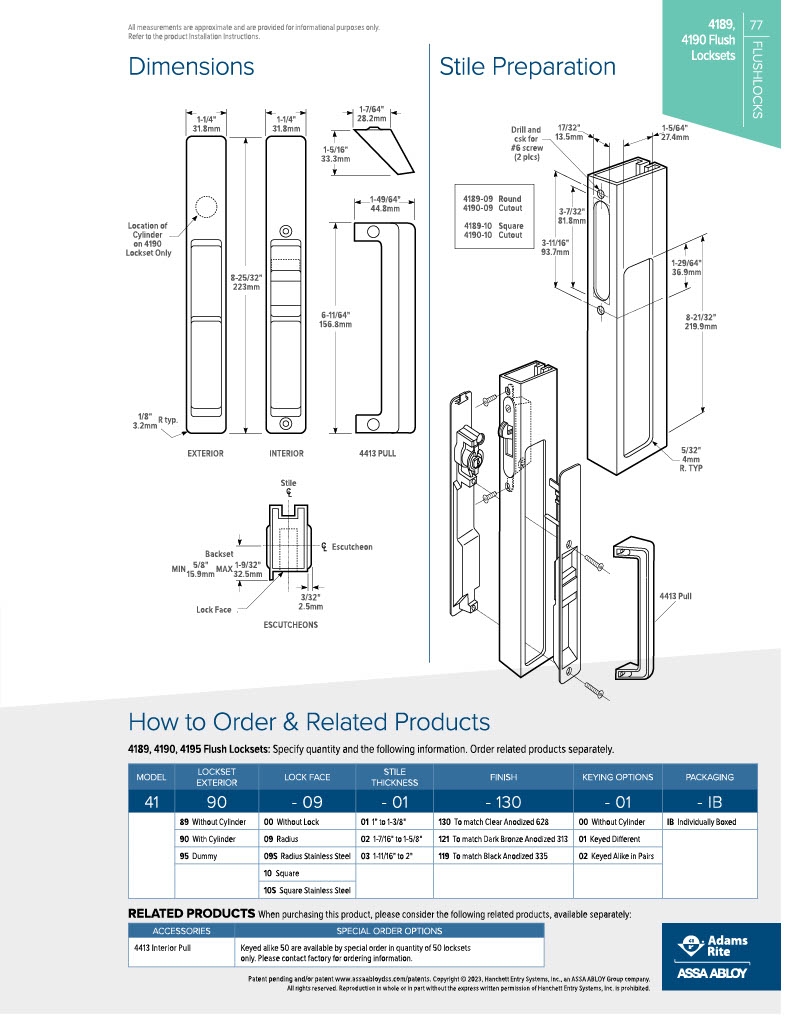

Backset: Variable, minimum: 5/8", maximum: 1-9/32" (from face to lock to escutcheon and cylinder centerline).

Stile Depth: Minimum clear depth: backset plus 9/16".

Anti-Lift Lock Mechanism: Basic MS 1848-09 (radius ends) or MS1848-10 (square ends) is supplied. Stainless steel bolt is self-protecting, adjustable for reach.

Escutcheons: Zinc Alloy, Satin Silver epoxy

Model:4190-10-1-119-IB,  4190-10-1-130-IB,  4190-09-01-119-IB,  4190-09-1-130-IB
