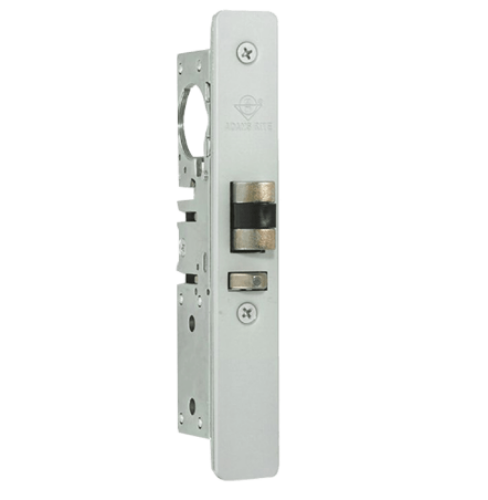

Adams Rite 4512 Standard Duty Deadlatch - Bevel faceplate

Adams Rite 4512 Standard Duty Deadlatch - Bevel faceplate

Function:

The 4512Standard Duty Deadlatch offers flexibility of traffic control during and after business hours. A reverse turn of the key while the bolt is held retracted retains the bolt to allow two-way traffic for hospitals, banks, stores, and other buildings which require free entrance at certain times and exit-only at other times. Interchangeable, without stile modification, with any MS1850A or MS1850S Deadlock of same backset and faceplate shape. Does not, however, provide the same maximum security level as the MS® Deadlock.

Operation:

Turn key or operate handle to retract spring-loaded latchbolt. To hold bolt retracted, push it in and secure by reverse turn of key. Uses any standard mortise cylinder with MS® dimensioned cam (not included).

For Mortise CylindersClick Here.

Specifications:

Bolt Holdback: While bolt is held fully retracted, a reverse turn of the key retains the bolt, allowing the door to be free swinging.

Cylinder Backset:  31/32" or 1-1/8"

Case: Measures 1" x 5-13/16" x depth. Depth varies by backset). Steel with corrosion-resistant plating.

Latchbolt: 1/2" x 1" x 1/2" throw. All metal with hardened steel internal pins. Handing is reversible without special tools.

Auxiliary Bolt: All metal. Deadlocks latch bolt to prevent “loiding" or case-knife entry.

Cylinder Cam: Operable by any standard mortise cylinder with MS® cam. Cylinders with MS® cams can be readily obtained from most cylinder manufacturers.

Options: Backset, faceplate shape, strike, handing, and finish must be specified when ordering.

Standard Package: Individually boxed with strike, and machine screws for mounting. Cylinders, paddles, and handles available separately.

Model: 4512-35-201-628, 4512-36-201-628, 4512-26-101-628, 4512-25-101-628, 4512-35-201-335, 4512-36-201-335, 4512-26-101-335, 4512-25-101-335, 4512-35-201-313, 4512-36-201-313, 4512-26-101-313, 4512-25-101-313
