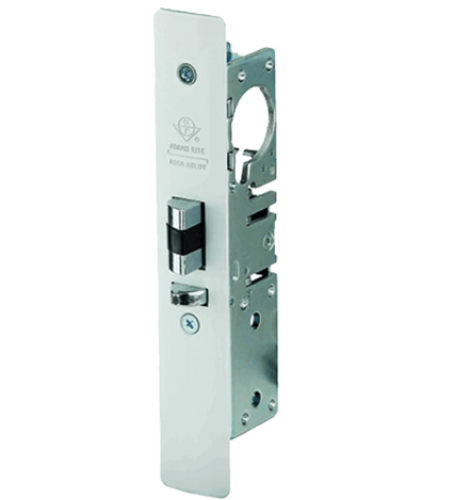

4530-35-201-628
1-Page1-4530
1-Page2-4530

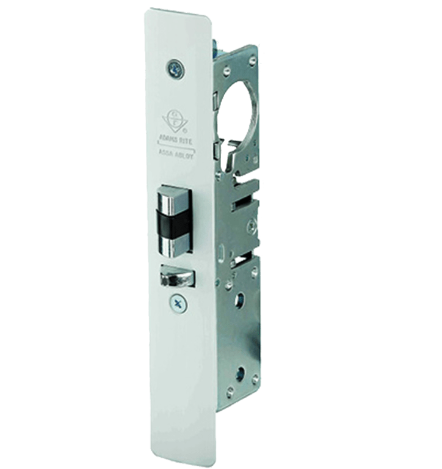

4530-35-201-628

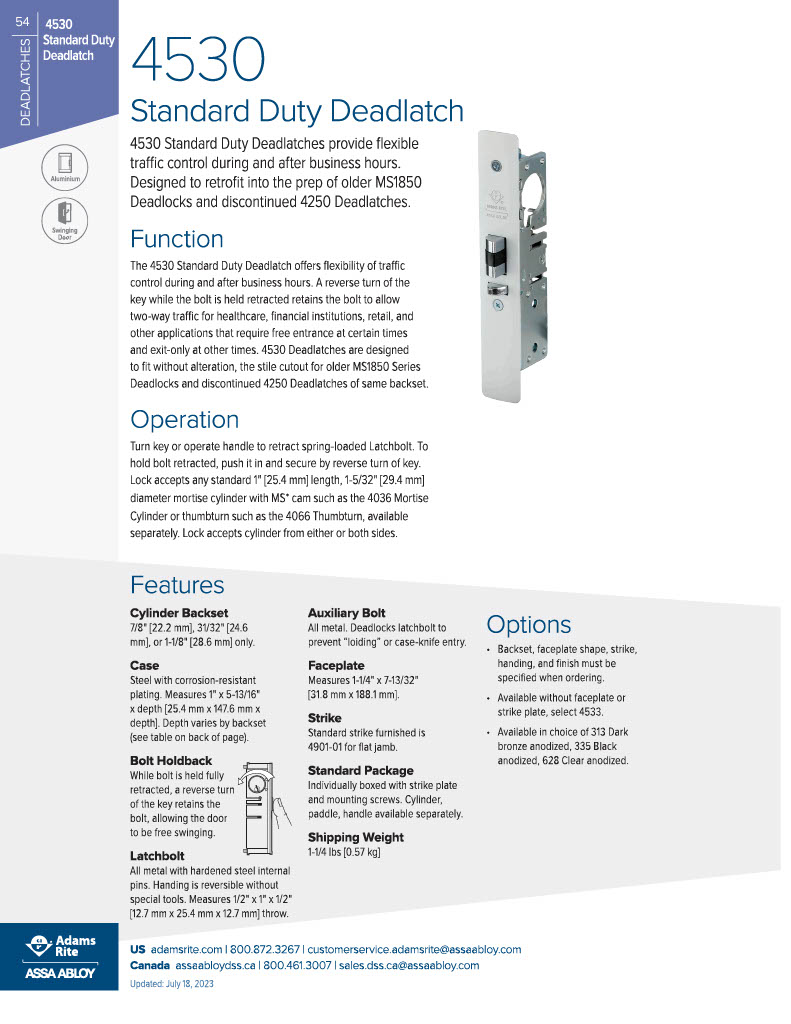

1-Page1-4530

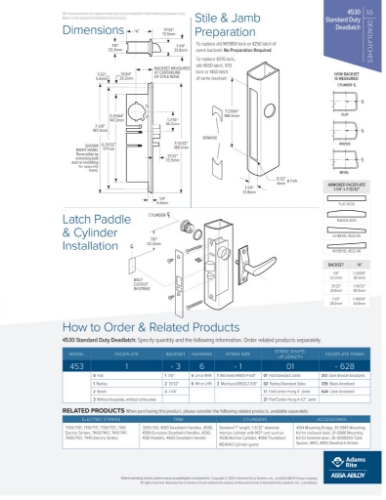

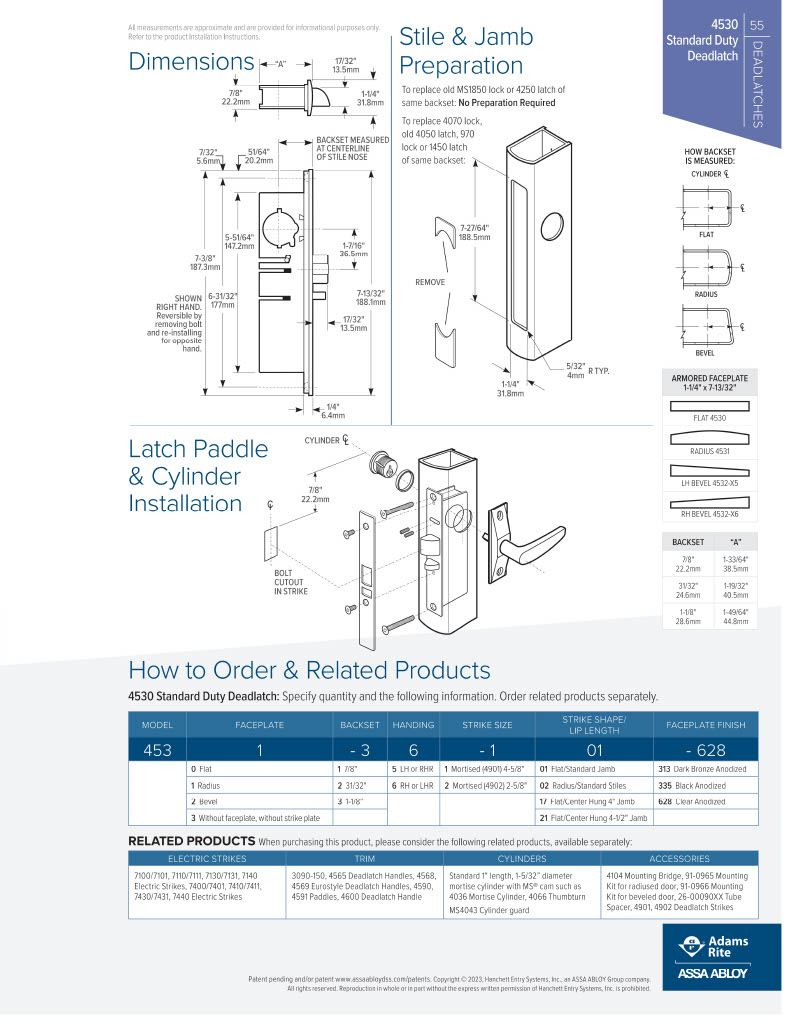

1-Page2-4530
naxt
prev

Product Details

Adams Rite 4530 Standard Duty Deadlatch - Flat faceplate

Function:

The 4530 Standard Duty Deadlatch offers flexibility of traffic control during and after business hours. A reverse turn of the key while the bolt is held retracted retains the bolt to allow two-way traffic for hospitals, banks, stores, and other buildings which require free entrance at certain times and exit-only at other times. 4530 Deadlatches are designed to fit without alteration, the stile cutout for older MS1850 Deadlocks and 4250 Deadlatches of same backset.

Operation:

Turn key or operate handle to retract spring-loaded latch bolt. To hold bolt retracted, push it in and secure by reverse turn of key. Uses any standard mortise cylinder with MS® dimensioned cam (not included).

For Mortise CylindersClick Here.

Specifications:

Bolt Holdback: While bolt is held fully retracted, a reverse turn of the key retains the bolt, allowing the door to be free swinging.

Cylinder Backset: 7/8", 31/32", or 1-1/8" only

Case: Measures 1" x 5-13/16" x depth. Depth varies by backset. Steel with corrosion-resistant plating.

Latchbolt: 1/2" x 1" x 1/2" throw. All metal with hardened steel internal pins. Handing is reversible without special tools.

Auxiliary Bolt: All metal. Deadlocks latchbolt to prevent “loiding" or case-knife entry.

Faceplate: Measures 1-1/4" x 7-13/32".

Cylinder Cam: Operable by any standard mortise cylinder with MS® cam. Cylinders with MS® cams can be readily obtained from most cylinder manufacturers.

Options: Backset, faceplate shape, strike, handing, and finish must be specified when ordering.

Model:4530-15-101-628, 4530-25-101-628, 4530-35-101-628, 4530-26-101-628, 4530-26-101-628, 4530-36-101-628, 4530-15-201-628, 4530-25-201-628, 4530-35-201-628, 4530-26-201-628, 4530-26-201-628, 4530-36-201-628, 4530-15-101-313, 4530-25-101-313, 4530-35-101-313, 4530-26-101-313, 4530-26-101-313, 4530-36-101-313, 4530-15-201-313, 4530-25-201-313, 4530-35-201-313, 4530-26-201-313, 4530-26-201-313, 4530-36-201-313

Adams Rite 4530 Standard Duty Deadlatch - Flat faceplate

SKU: 4530

In Stock

$99.18

Backset *

Handing *

Strike *

Finish *

About this item

4530 Standard Duty Deadlatches provide flexible traffic control during and after business hours. Designed to retrofit into the prep of older MS1850 Deadlocks and 4250 Deadlatches.

Resources

No resources added to this product.

Adams Rite 4530 Standard Duty Deadlatch - Flat faceplate

Function:

The 4530 Standard Duty Deadlatch offers flexibility of traffic control during and after business hours. A reverse turn of the key while the bolt is held retracted retains the bolt to allow two-way traffic for hospitals, banks, stores, and other buildings which require free entrance at certain times and exit-only at other times. 4530 Deadlatches are designed to fit without alteration, the stile cutout for older MS1850 Deadlocks and 4250 Deadlatches of same backset.

Operation:

Turn key or operate handle to retract spring-loaded latch bolt. To hold bolt retracted, push it in and secure by reverse turn of key. Uses any standard mortise cylinder with MS® dimensioned cam (not included).

For Mortise CylindersClick Here.

Specifications:

Bolt Holdback: While bolt is held fully retracted, a reverse turn of the key retains the bolt, allowing the door to be free swinging.

Cylinder Backset: 7/8", 31/32", or 1-1/8" only

Case: Measures 1" x 5-13/16" x depth. Depth varies by backset. Steel with corrosion-resistant plating.

Latchbolt: 1/2" x 1" x 1/2" throw. All metal with hardened steel internal pins. Handing is reversible without special tools.

Auxiliary Bolt: All metal. Deadlocks latchbolt to prevent “loiding" or case-knife entry.

Faceplate: Measures 1-1/4" x 7-13/32".

Cylinder Cam: Operable by any standard mortise cylinder with MS® cam. Cylinders with MS® cams can be readily obtained from most cylinder manufacturers.

Options: Backset, faceplate shape, strike, handing, and finish must be specified when ordering.

Model:4530-15-101-628, 4530-25-101-628, 4530-35-101-628, 4530-26-101-628, 4530-26-101-628, 4530-36-101-628, 4530-15-201-628, 4530-25-201-628, 4530-35-201-628, 4530-26-201-628, 4530-26-201-628, 4530-36-201-628, 4530-15-101-313, 4530-25-101-313, 4530-35-101-313, 4530-26-101-313, 4530-26-101-313, 4530-36-101-313, 4530-15-201-313, 4530-25-201-313, 4530-35-201-313, 4530-26-201-313, 4530-26-201-313, 4530-36-201-313
