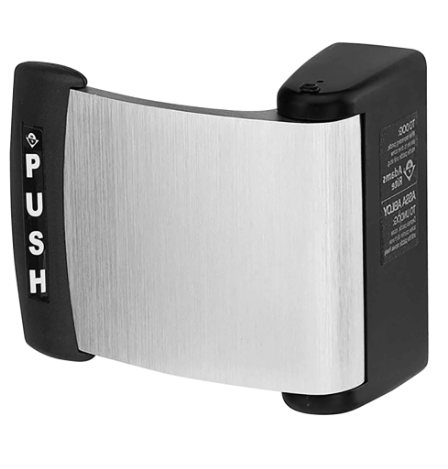

Adams Rite 4591M-02 Deadlatch Paddle with switch For The 4300/4500/4900 Latch Series - Push To Left

Adams Rite 4591M-02 Deadlatch Paddle with switch For The 4300/4500/4900 Latch Series - Push To Left Operation

Function:

An alternative to knob or lever handles. Makes opening a latched door as natural as opening an unlatched one – just pull in the direction the door swings. Available for any Adams Rite 4300, 4500 or 4900 Series Deadlatch. Operation:

Push To Left:Use**outside of left hand door or inside of right hand reverse

Monitor Switch:Paddle without latch drive mechanism but with switch that can be wired to make or break a low voltage circuit

Specifications:

Paddle: Extruded aluminum, 628 Clear Anodized finish (US28). 313 Dark Bronze Anodized or 335 Black Anodized are available.

Escutcheon: Zinc allow with black finish. Houses steel operating mechanism. Secured to door stile with special binder posts that extend into the escutcheon to rigidly resist torque loads in any direction.

Cam Plug: Furnished for use with 4300, 4500 and 4900 Series Deadlatches.Secured in latch body by cylinder setscrew, plug is also rigidly tied to escutcheon by hardened steel pins.

Paddle Dogging: Turning hex key in escutcheon holds the paddle down, leaving door free-swinging. Dogging key provided

Model: 4591M-02-00-628, 4591M-02-00-313
