Product Details

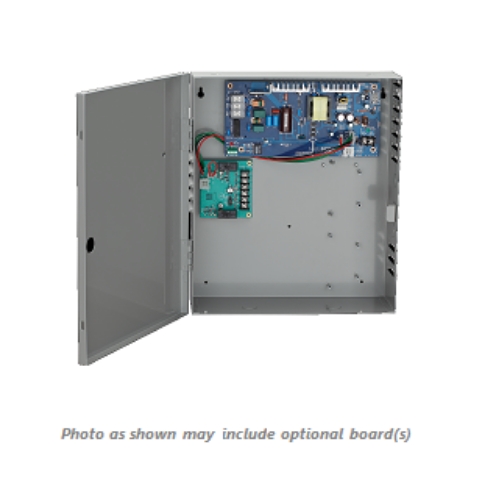

Von Duprin PS902-4RL Base Power Supply (2A @ 12/24 VDC Field Selectable), 4 Relay Board Integrated Logic for Controlling Security Interlocks, Auto Operators and Time Delays
*
*Overview:
The Von Duprin PS902, 2-amp power supply is designed to deliver a highly filtered and regulated "clean" output to protect downstream devices. The PS902 is factory and field configurable to suit specific needs. Separate battery management extends battery life and ensures consistemt output.
900-4RL:4 relay distribution board with logic is field configurable for time delay function, auto operator, security interlock
Number of connectors on power supply for the following: 2 ampsDistribution boards:
1
Battery back-up board: 1
Output*:*
2 ampClean, consistent power output helps protect the sensitive circuitry of downstream productsOverload protection prevents too much current being pulled by an overload of devices12/24 VDC output field selectable with plug-in jumper Externally visible LED indicator provides visual status on AC inputAbility to provide continual power with battery backupInput:
Universal 120-240 VAC, fused primary inputExternally visible AC input indicator with isolated SPDT contactsBattery back-up board auto-selects voltageLED indicator provides visual status on DC outputInstallation

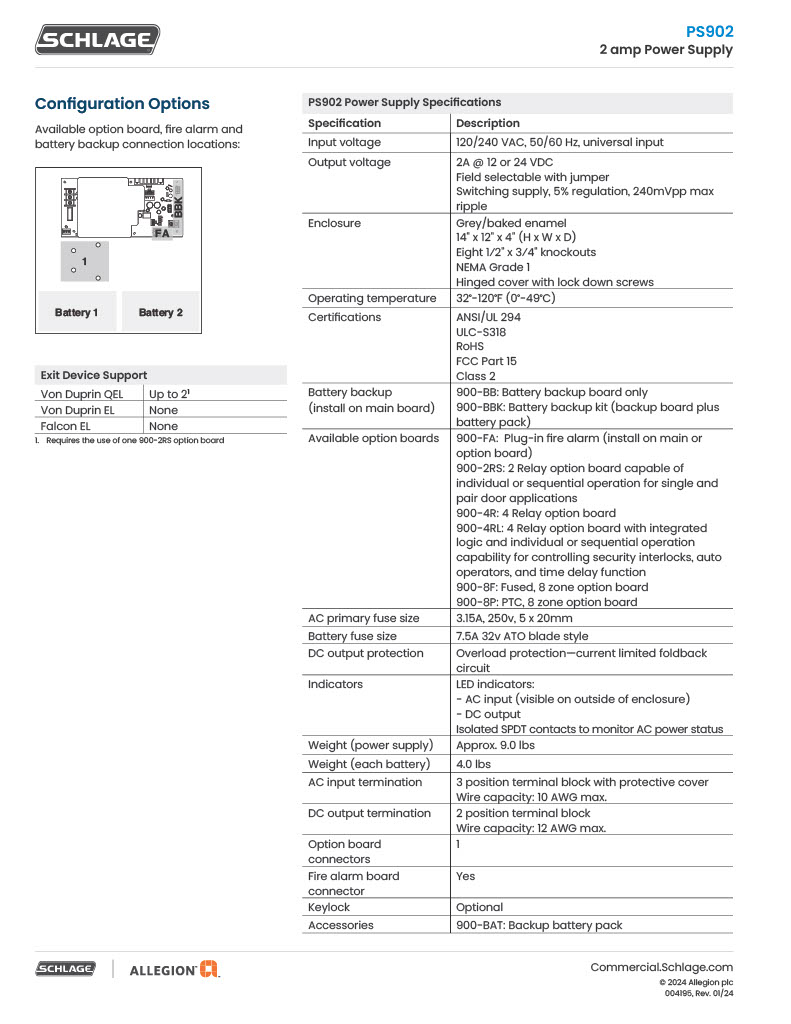

Order to specification or field configure; option boards use polarized plug-in connectors to simplify in-field expansionsOption boards enable basic fuse protection, simple relay, advanced logic with sequencing and timing, panic device control, fire alarm relay and battery backupCabinet accommodates 2 batteries and up to 2 option boards, plus fire alarm relay and battery backup boards; see Configuration options for details
**Option boards:
**900-4R: 4 relay controlled output board to power multiple devices
900-4RL: 4 relay distribution board with logic is field configurable for time delay function, auto operator, security interlock
900-8F: Provides 8 individually fuse-protected outputs, giving the flexibility to power multiple devices and provide another layer of protection
900-FA: Emergency interface relay integrates with fire alarm and is used to cut power in case of emergency
900-BB: Battery backup
900-2RS: 2 relay EL panic device control board (PS914 only)
900-BBK: Battery backup kit includes two 7A/hr batteries and provides up to four hours of backup power when cycled every 5 minutes at full load
Certifications:
UL 294 certified the standard for access control
Class 2 rated
Von Duprin PS9024RL, PS902-RLBB, PS902 4RL,Schlage PS9024RL, Schlage PS902-RLBB, PS902 4RL
