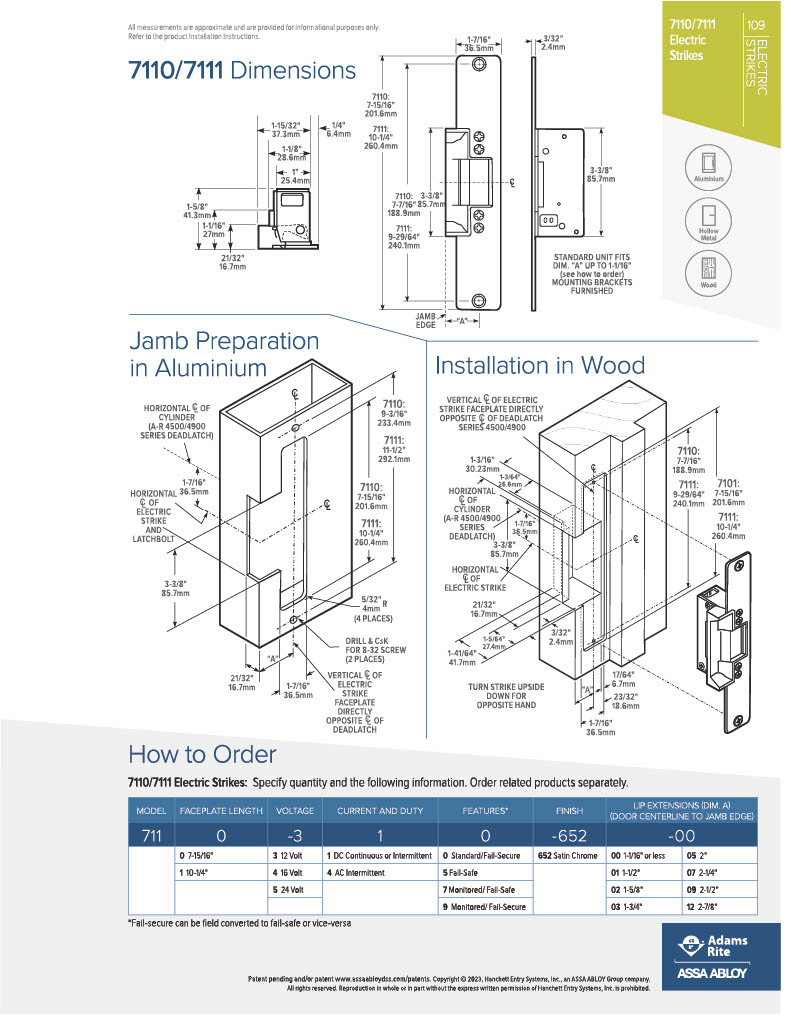

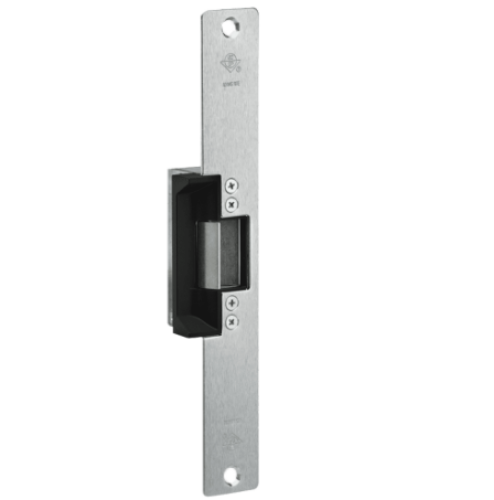

Adams Rite 7111-652 Electric Strike - For Wood, H.M. And Aluminum Jamb - 10-1/4" faceplate - Satin Chrome

Adams Rite 7111-652 Electric Strike - For Wood,*H.M. And* Aluminum Jamb - 10-1/4" faceplate  -Satin Chrome

Description:

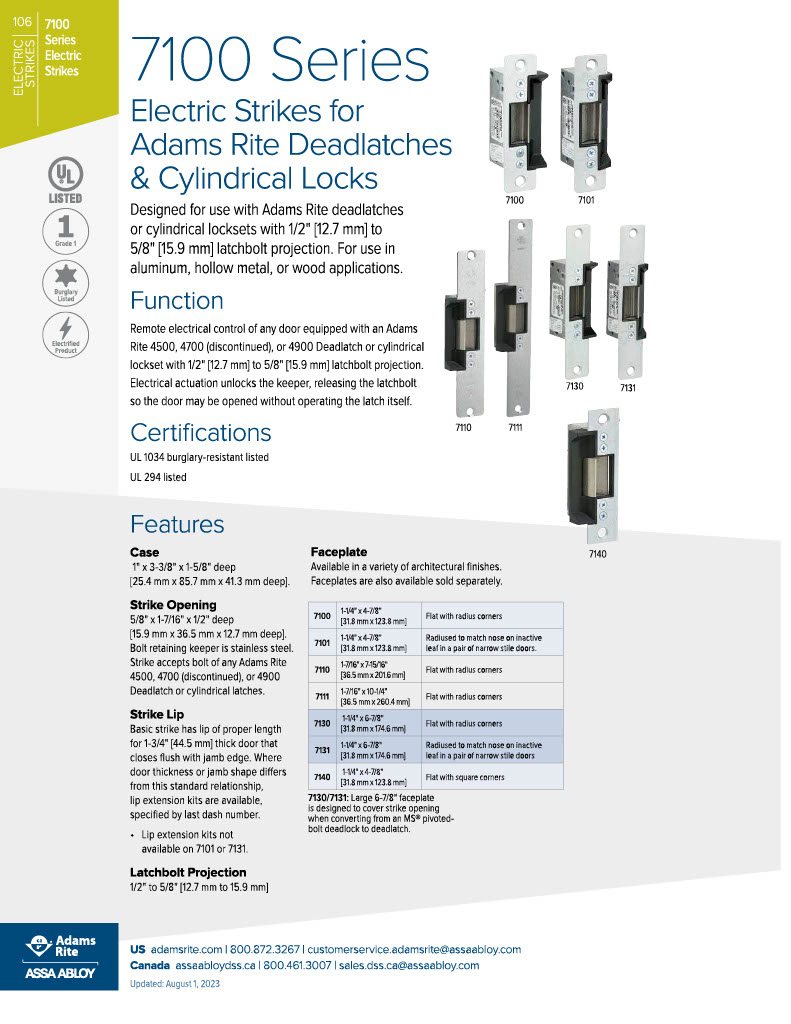

7111 Electric Strike with 10-1/4" faceplate is designed for Adams Rite deadlatches or cylindrical locksets with 1/2" to 5/8" latchbolt projection. For use in hollow metal, wood and aluminum door jambs.

Function:

Replaces earlier 002, 7510, or 7810 electric releases in either metal or wood jambs for remote electrical control of any door equipped with an Adams Rite 4500, 4700, or 4900 Series (or similar) Deadlatch or cylindrical (key-in-knob/lever) type lockset with 1/2" to 5/8" latchbolt projection. Electrical actuation unlocks strike jaw, releasing latchbolt so door can be opened without operating latch itself. Extremely compact mechanism fits into jamb sections as shallow as 1-5/8".

Specifications:

Fail-Safe/Fail-Secure: Field convertible from one mode to the other. However, AC intermittent solenoid must not be used continuously in either.

Case: Approximately 1" x 3-3/8" x 1-5/8" deep.

Strike Opening: 5/8" x 1-7/16" x 1/2" deep. Bolt retainer jaw is stainless steel. Strike accepts bolt of any Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical latches

Faceplate: 7111 faceplate measures 1-7/16" x 10-1/4".

Voltage: Available in 12 or 24 volt AC and DC.DC continuous units are silent, AC intermittent units “buzz" on operation.

Standard Package: Individually boxed with mounting screws, mounting clips, and adhesive shims to accommodate jamb or stile extrusion thickness greater or less than nominal 1/8".

Model:7111-310652, 7111-540652, 7111-440652, 7111-510652, 7111-315652, 7111-545652, 7111-445652, 7111-515652, 7111310652, 7111-54-0-652, 7111-440-652, 7111510652, 7111 315652, 7111-54-5-652, 7111-445-652, 7111-51-5-652
