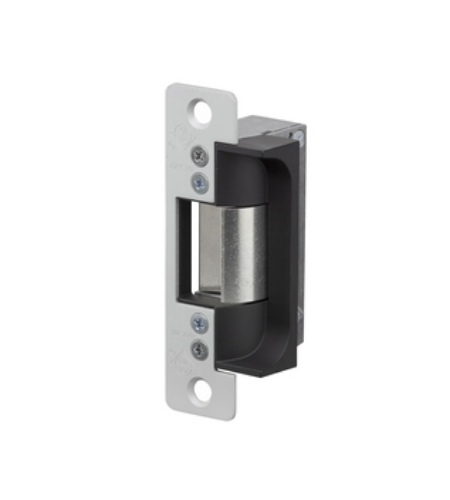

Adams Rite 7160 Electric Strike For Mortise or Cylindrical Locks, Flat Faceplate W/ radius corner - 4-7/8", For Alum Jamb

Adams Rite 7160 Electric Strike For Mortise or Cylindrical Locksets, Flat Faceplate W/ radiused corners,*For Aluminum Jamb - * 4-7/8" faceplate

Description:

7160 Electric Strikes with 4-7/8" faceplates are designed for mortise or cylindrical type locksets with up to 3/4" latchbolt projection without deadbolt. For use in aluminum jambs.

Function:

Remote electrical control of any door equipped with a mortise or cylindrical type lockset with up to 3/4" latchbolt projection without deadbolt. Electrical actuation unlocks strike jaw, releasing latchbolt so door can be opened without operating latch itself. Extremely compact mechanism fits into aluminum jamb (or opposing door) sections as shallow as 1-7/8". Fits existing prep for discontinued Adams Rite 7560, 7860 Electric Strikes.

Specifications:

Fail-Safe/Fail-Secure: Field convertible from one mode to the other. However, AC intermittent solenoid must not be used continuously in either.

Case: Approximately 1" x 3-3/8" x 1-7/8" deep.

Strike Lip: Basic 7160 strike has lip of proper length for 1-3/4" thick door that closes flush with jamb edge.

Strike Opening: 3/4" x 1-7/16" x 5/8" deep. Bolt retainer jaw is stainless steel. Strike location must be centered on latchbolt.

Faceplate: Measures 1-1/4 x 4-7/8" Faceplate is flat, with radiused corners.

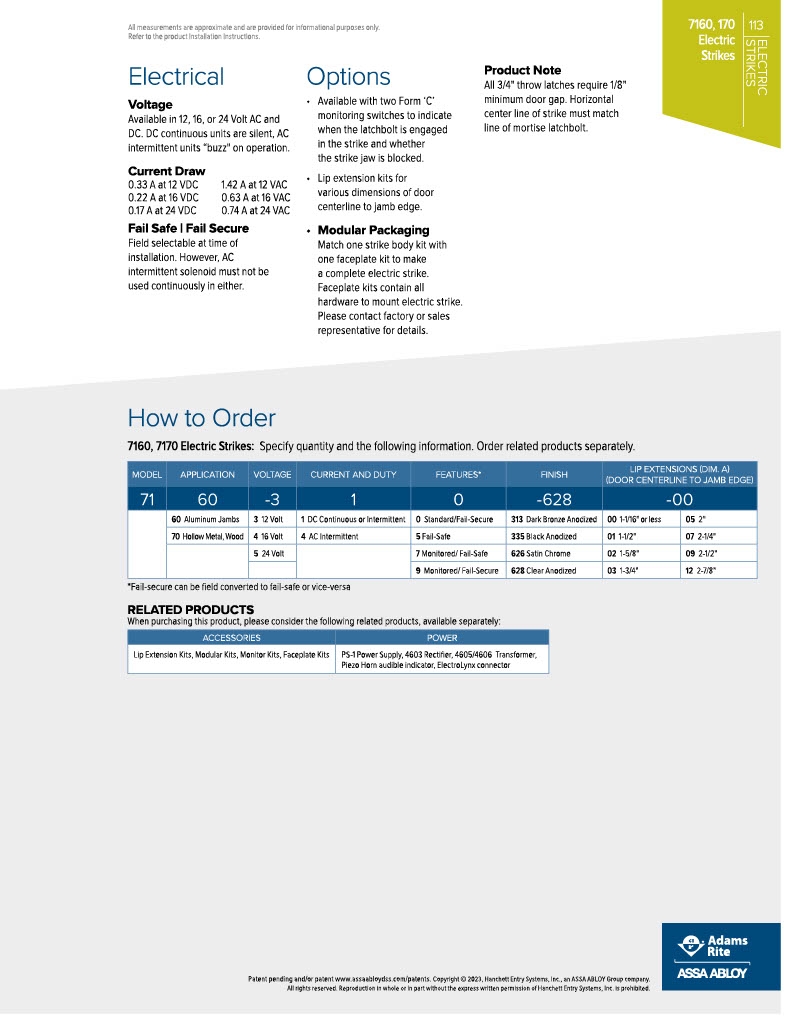

Voltage: Available in 12 or 24 volt AC and DC. DC continuous units are silent, AC intermittent units “buzz" on operation.

Standard Package: Individually boxed with mounting screws, mounting clips, and adhesive shims to accommodate jamb extrusion thickness greater or less than nominal 1/8 inch.

Model:7160-310313, 7160-440628, 7160-315628, 7160-445313
