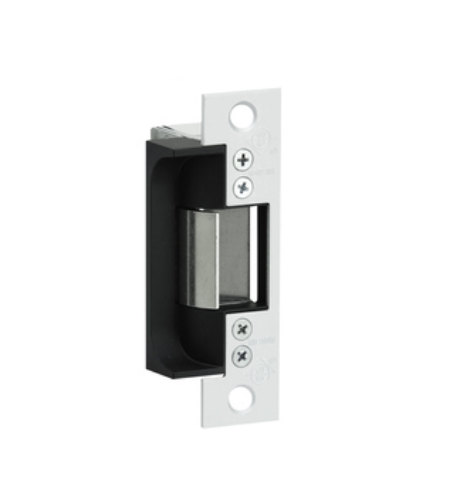

Adams Rite 7170 Electric Strike For Mortise or Cylindrical Locks, Flat Faceplate w/ Square Corner - 4-7/8", For H.M. & Wood Jamb

Adams Rite 7170 Electric Strike For Mortise or Cylindrical Type Locksets*- Flat Faceplate w/ Square Corners - For Hollow Metal & Wood Jamb - 4-7/8" faceplate*

Description:

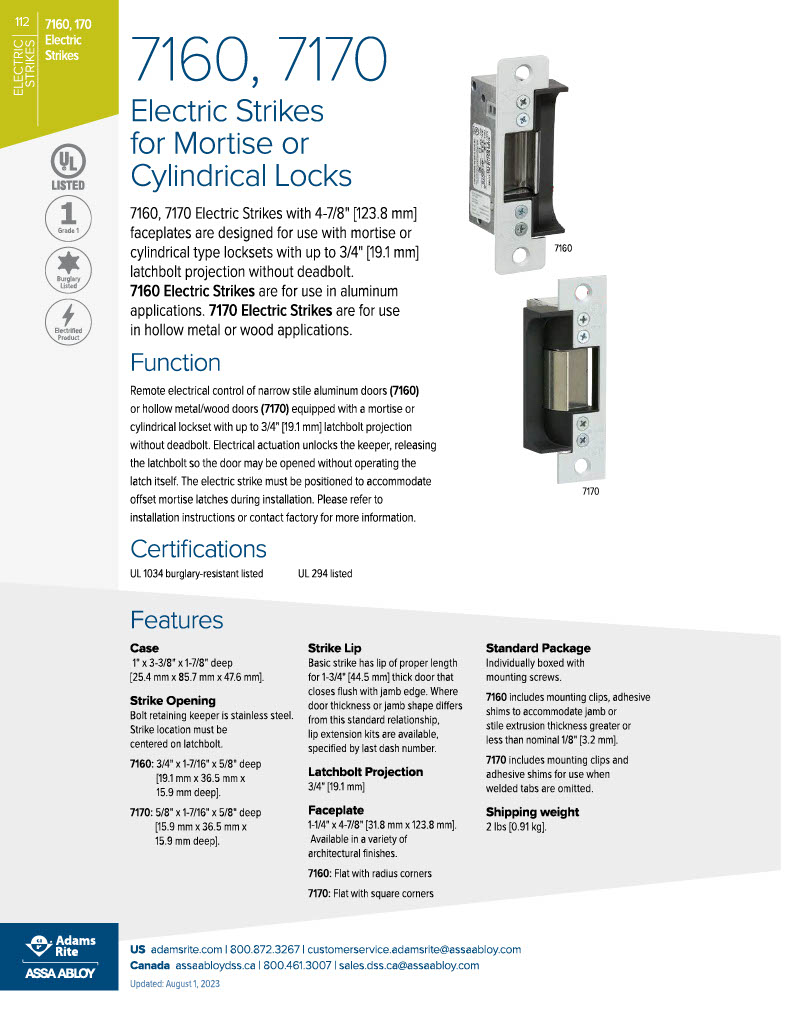

7170 Electric Strikes with 4-7/8" faceplates are designed for mortise or cylindrical type locksets with up to 3/4" latchbolt projection without deadbolt. For use in hollow metal or wood door jambs.

Function:

Remote electrical control of any door equipped with a mortise or cylindrical type lockset with up to 3/4" latchbolt projection without deadbolt. Electrical actuation unlocks strike jaw, releasing latchbolt so door can be opened without operating latch itself. Extremely compact mechanism fits into hollow metal jamb sections as shallow as 1-7/8". Fits existing prep for discontinued Adams Rite 7560AN, 7570, 7860AN, 7870 Electric Strikes. The electric strike must be positioned to accommodate offset mortise latches during installation.

Specifications:

Fail-Safe/Fail-Secure: Field convertible from one mode to the other. However, AC intermittent solenoid must not be used continuously in either.

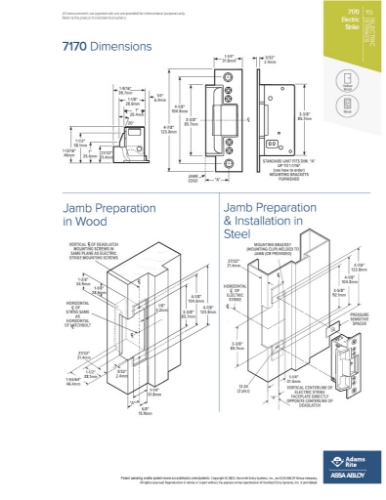

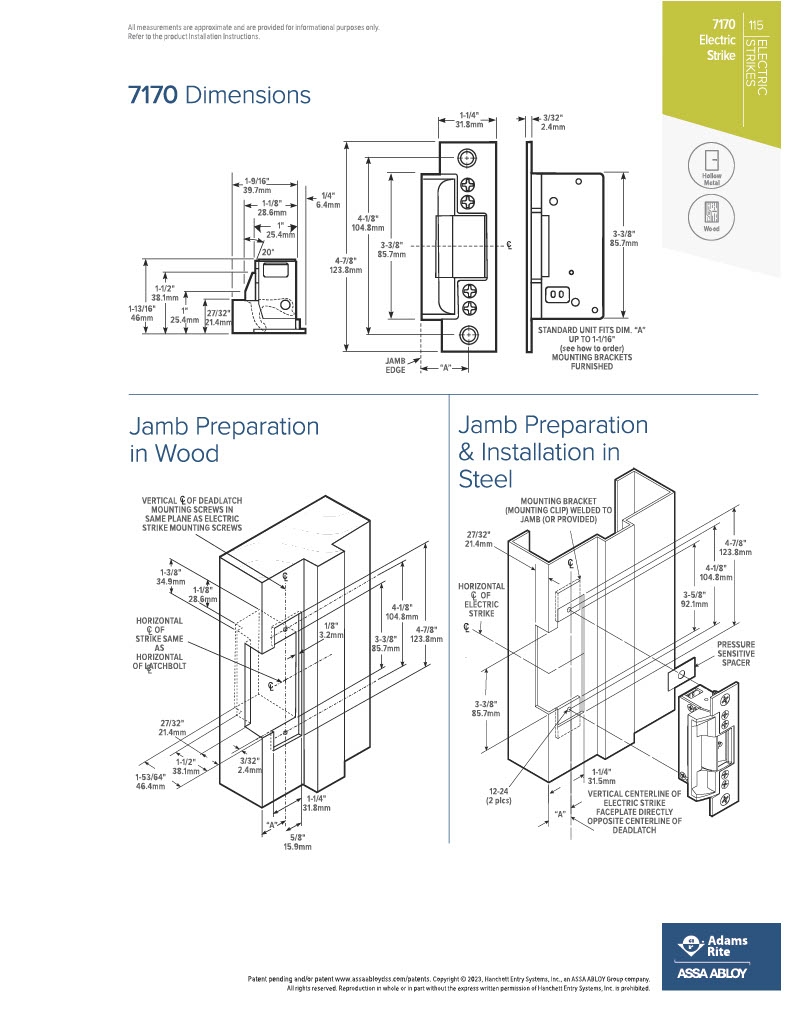

Case: Approximately 1" x 3-3/8" x 1-7/8" deep.

Strike Lip: Basic 7170 strike has lip of proper length for 1-3/4" thick door that closes flush with jamb edge.

Strike Opening: 5/8" x 1-7/16" x 5/8" deep. Bolt retainer jaw is stainless steel.

Faceplate: Measures 1-1/4 x 4-7/8" Faceplate is flat, with square corners.

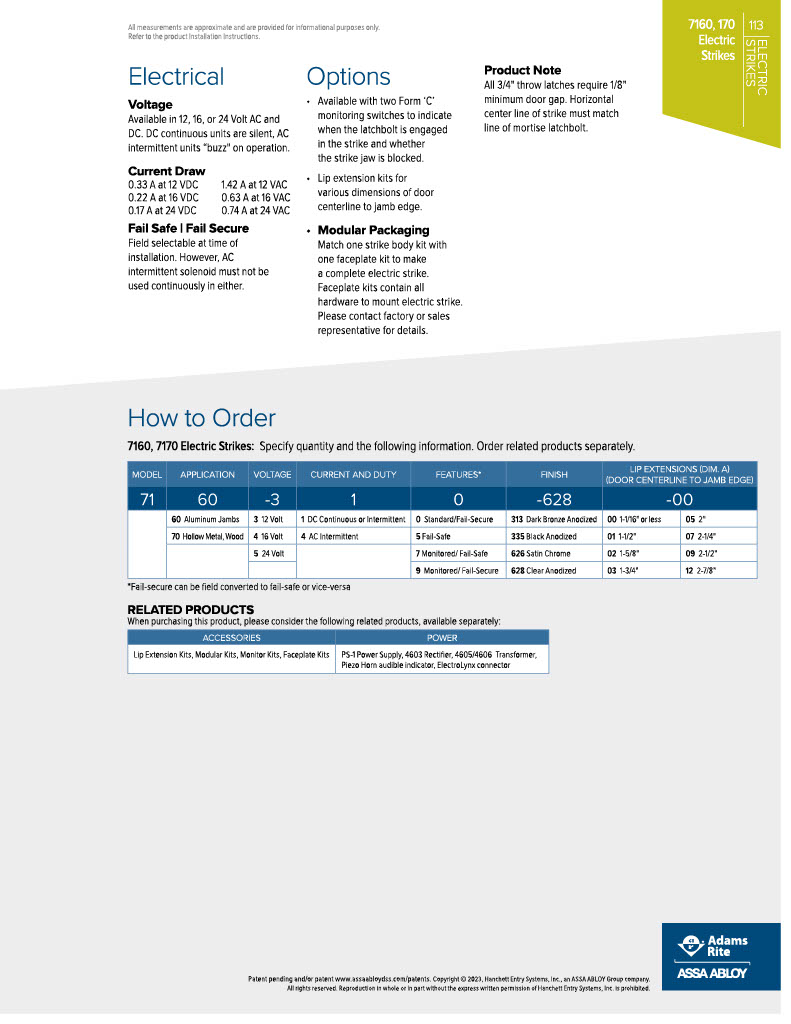

Voltage: Available in 12 or 24 volt AC and DC. DC continuous units are silent, AC intermittent units “buzz" on operation.

Standard Package: Individually boxed with mounting screws. Includes mounting clips and adhesive shims for use where welded tabs are omitted.

 Model:7170-310313, 7170-440628, 7170-315628, 7170-445313,  7170-510313, 7170-510628, 7170-515628, 7170-515313
