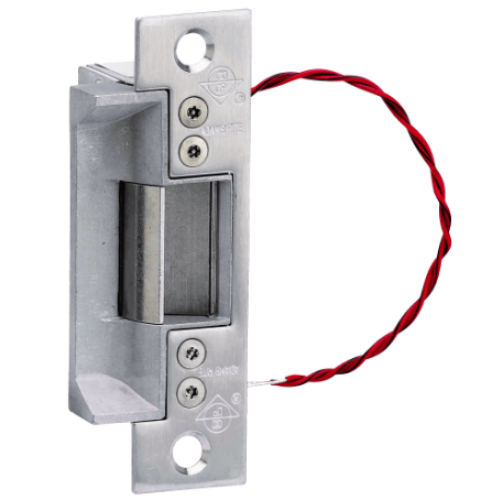

Adams Rite 7240-630 Fire Rated Electric Strike For Cylindrical Locks - For Hollow Metal Jamb - 4-7/8" faceplate - Satin Stainless

Adams Rite 7240-630 Fire Rated Electric Strike For Cylindrical Locks - For Hollow Metal Jamb - 4-7/8" faceplate*- Satin Stainless*

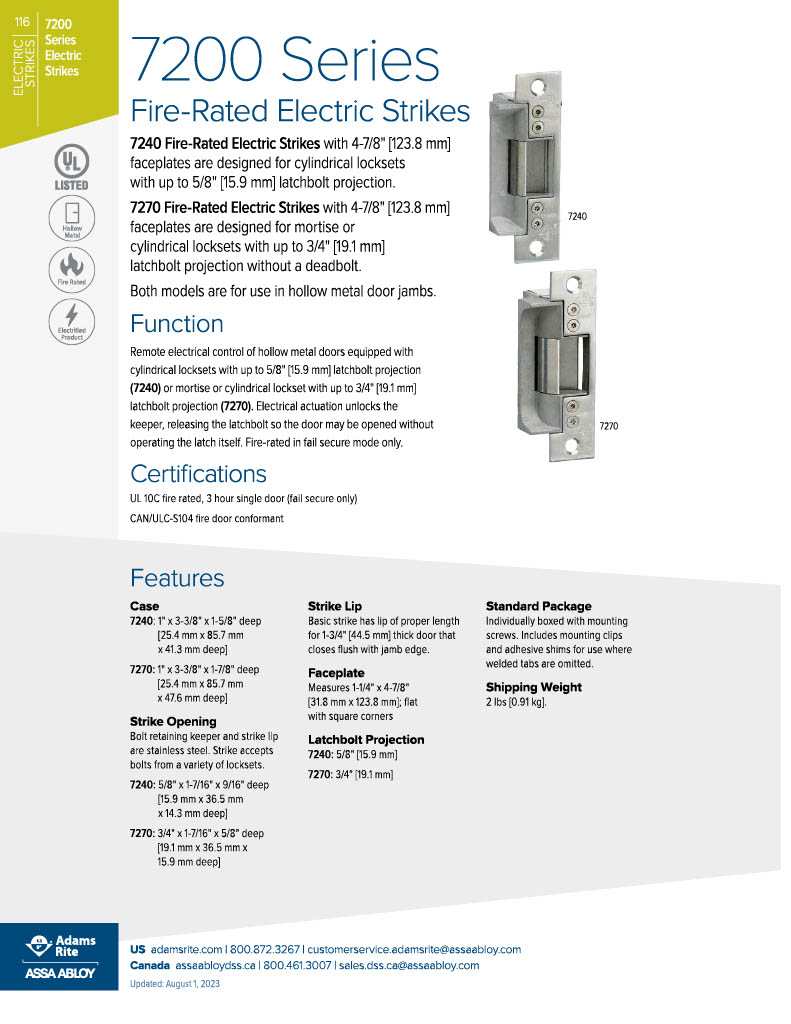

Description:

7240 Fire-Rated Electric Strike with 4-7/8" faceplate is designed for cylindrical locksets with up to 5/8" latchbolt projection. For use in hollow metal door jambs.

Function:

Remote electrical control of any door equipped with cylindrical (key-in-knob/lever) type locksets with up to 5/8" latchbolt projection. Electrical actuation unlocks strike jaw, releasing latchbolt so door can be opened without operating latch itself. Extremely compact mechanism fits into jamb sections as shallow as 1-21/32". Fire-rated in fail-secure mode.

Specifications:

UL10C, CAN/ULC-S104, fire rated 3 hr.

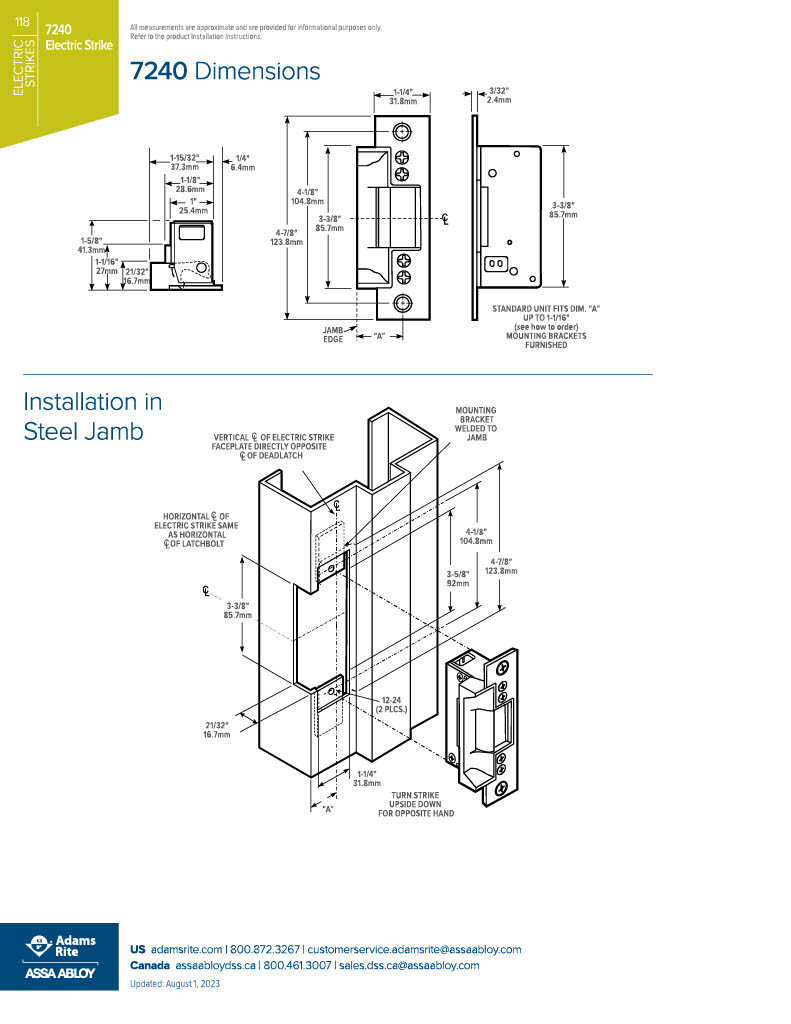

Case: Approximately 1" x 3-3/8" x 1-5/8" deep.

Strike Lip: Basic 7240 strike has lip of proper length for 1-3/4" thick door that closes flush with jamb edge.

Strike Opening: 5/8" x 1-7/16" x 9/16" deep. Bolt retainer jaw and strike lip are stainless steel. Strike accepts bolt from a variety of latchsets.

Faceplate: Measures 1-1/4 x 4-7/8". Faceplate is flat, with square corners.

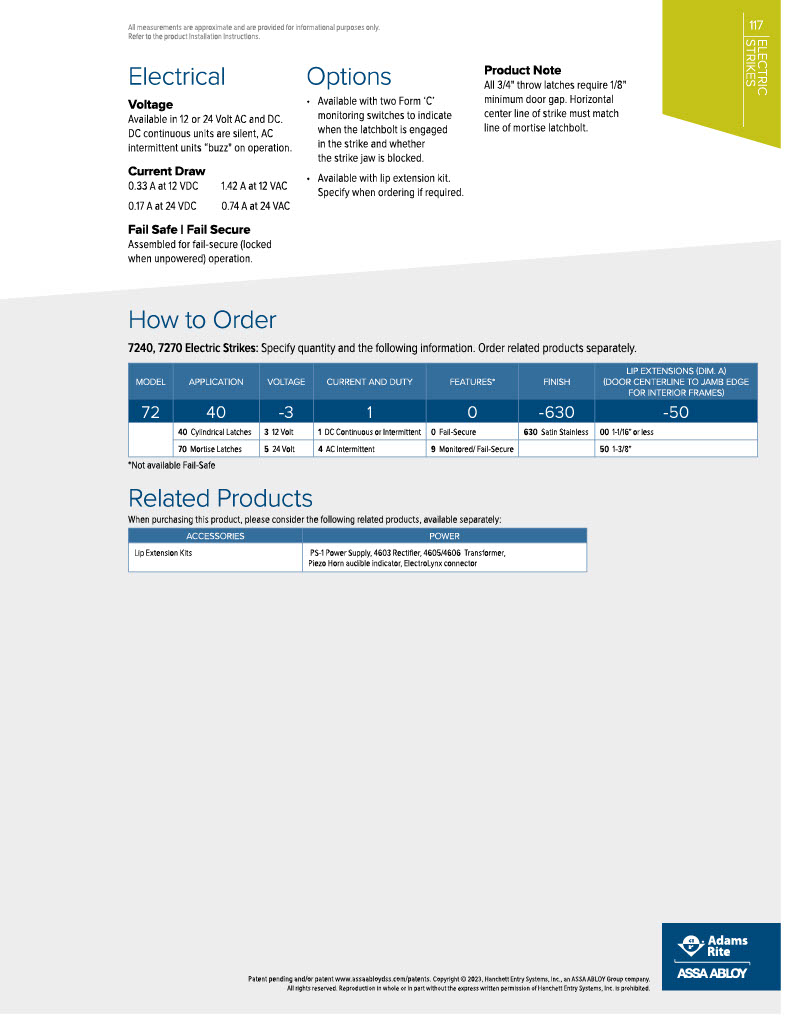

Voltage: Available in 12 or 24 volt AC and DC. DC continuous units are silent, AC intermittent units “buzz" on operation.

Standard Package: Individually boxed with mounting screws. Includes mounting clips and adhesive shims for use where welded tabs are omitted.   Model:  7240-310630, 7240-440630, 7240-510630
