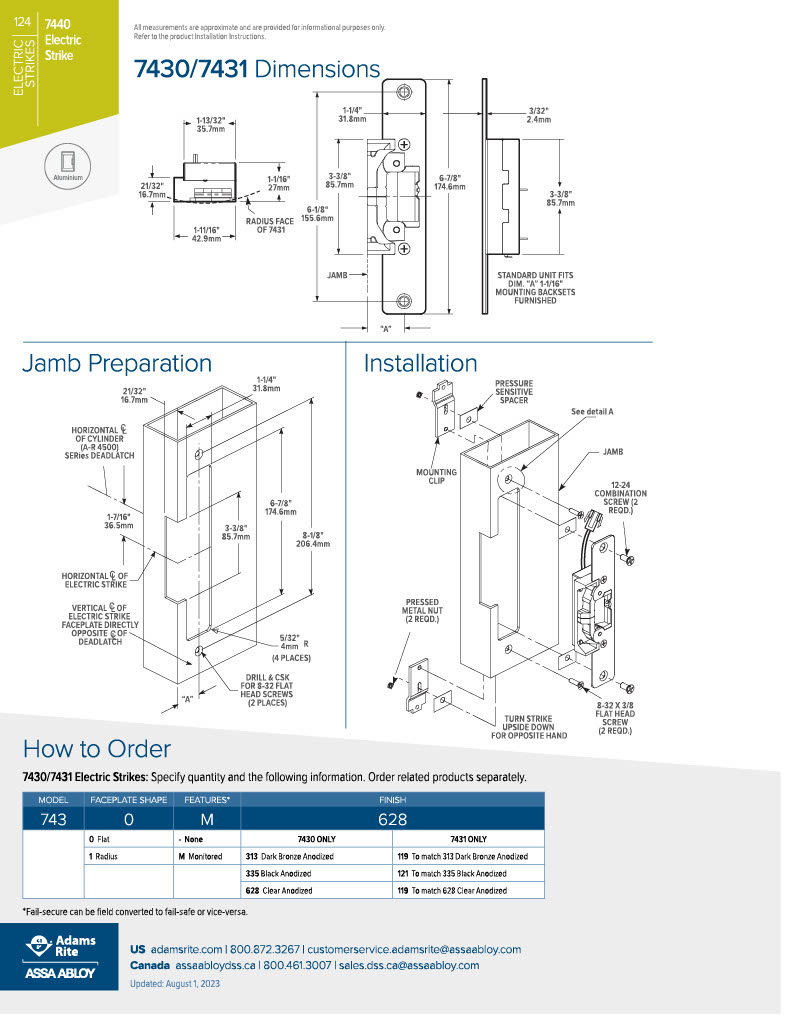

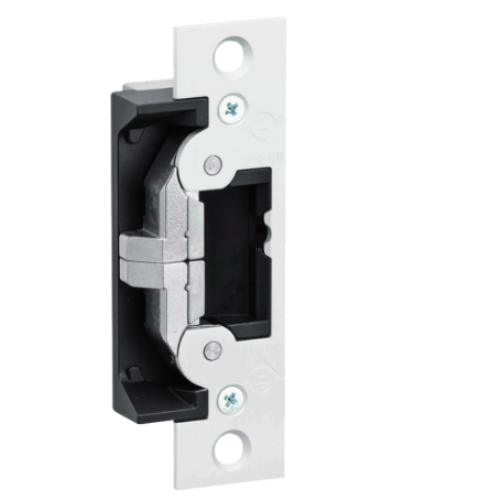

Adams Rite 7431 Ultraline Electric Strike - Radius Faceplate - For Aluminum Jamb - 6-7/8" faceplate

Adams Rite 7431 Ultraline Electric Strike - Radius Faceplate - For Aluminum Jamb - 6-7/8" faceplate

Description:

7430, 7431 Electric Strikes with 6-7/8" faceplates are designed for Adams Rite deadlatches or cylindrical locksets with 1/2" to 5/8" latchbolt projection. For use in aluminum jambs and stiles. Opens electrically under 35 lbs. of preload.

Function:

Remote electrical control of any narrow stile or hollow metal door equipped with an Adams Rite 4500, 4700, or 4900 Series (or similar) Deadlatch or cylindrical (key-in-knob/lever) type lockset with 1/2" to 5/8" latchbolt projection. Large faceplate is designed to cover strike opening when converting from an MS® pivoted-bolt deadlock to a deadlatch. Electrical actuation unlocks strike jaw, releasing latchbolt so door can be opened without operating latch itself. Extremely compact mechanism fits into jamb sections as shallow as 1-1/16". Direct upgrade for Adams Rite 7130 Electric Strikes.

This non-handed strike features an ultra-compact design and an adjustable stainless steel split-jaw with over 1500 lbs. of holding force in fail-secure mode. The strike releases electrically with up to 35 lbs. of door “preload" (pressure exerted on doors by air conditioning systems, warping or misaligned hardware which can disable common electric strikes). Single solenoid operates on 12, 16, or 24 VDC power. Strikes are equipped with a quick connect plug-in type connector.

Specifications:

Voltage: Field selectable to match power source of 12, 16, or 24 VDC.16 DC requires adapter (P/N VA 7400-16VDC) 4603 Rectifier is required to convert low voltage AC current to DC current of same voltage. Please contact factory when using in AC mode.

Fail-Safe/Fail-Secure: Field selectable at time of installation.

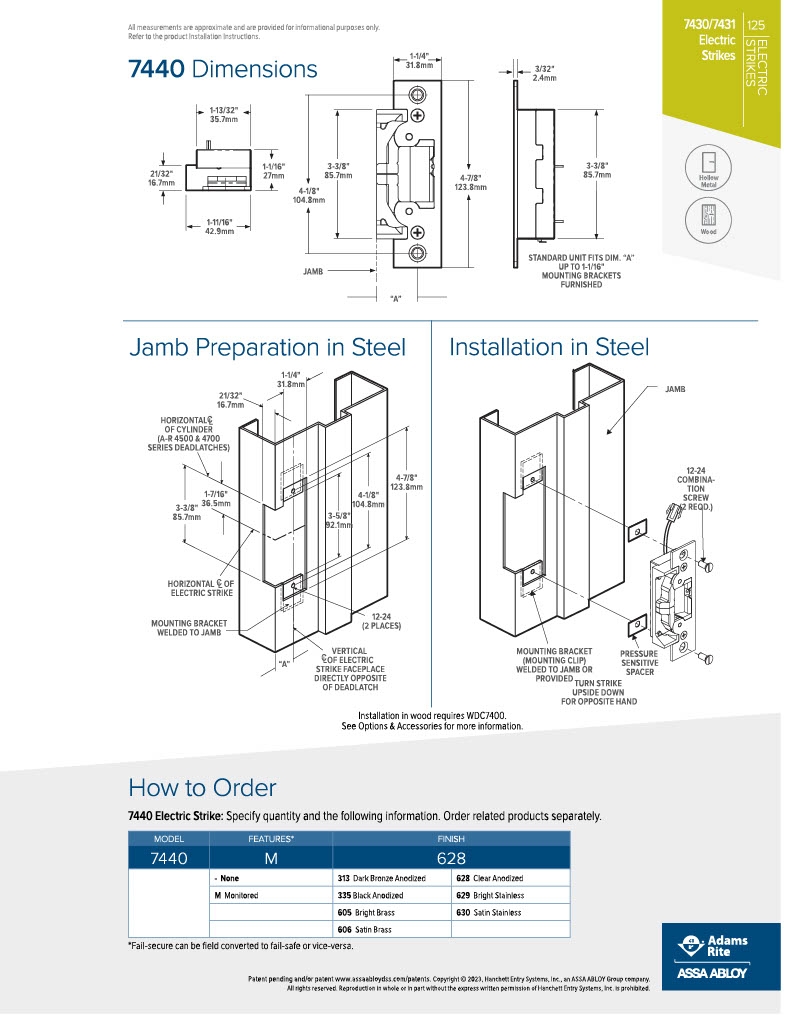

Case: Approximately 1" x 3-3/8" x 1-1/16" deep.

Strike Lip: Basic 7400 electric strike has lip of proper length for 1-3/4" thick door that closes flush with jamb edge.

Strike Opening: 5/8" adjustable x 1-7/16" x 1/2" deep. Bolt retainer jaw is stainless steel. Strike accepts bolt of Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical latches.

Faceplate: Measures 1-1/4" x 6-7/8". 7431 has Radius faceplate

Model:7431-119, 7431-121, 7431-130

Related Categories

• Electric Strikes
