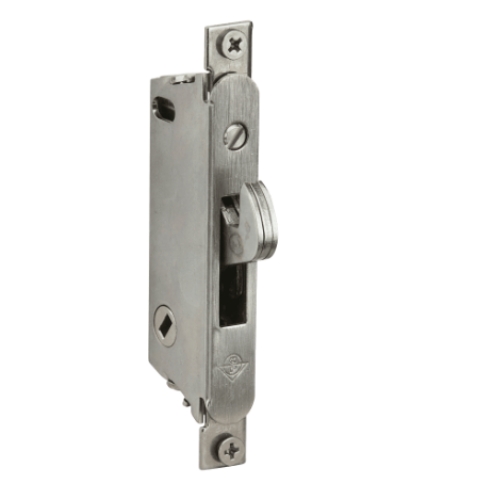

Adams Rite MS1847-630 MS Deadlock - 45 Degree - Rectangular Face

Adams Rite MS1847-630*MS* Deadlock - 45 Degree - Rectangular Face - stainless steel

Description:

The MS1847 is a compact lock designed to fit within very narrow sliding door stiles without compromising the high degree of security these doors need.

The sturdy stainless steel bolt has two important features not usually found in sliding door hardware. First, it is adjustable: a full 3/16" lengthening or shortening of bolt projection is possible by turning an exposed screw in the face of the lock. This can compensate for considerable misalignment between door and jamb. Second, the MS1847 bolt is self-protecting: if the door is closed with the bolt in the locked position, the bolt will retract immediately on contact with the jamb, thus preventing damage or accidental lock-out.

Operation:

Cylinder pulls are available for keyed operation. Three hub slot positions allow installation even where jamb and stile design provides severely limited turn clearance.

Specifications:

Case: Stainless steel, measures 1/2" x 3-3/16" x 1-1/8".

Anti-Lift Bolt: Three-ply laminated stainless steel. Designed to withstand approximately one-half ton force. Anti-lift bolt stops both door-from-jamb pry bar attacks and attempts to lift the door from its track.

Face shape: Rectangular ends

Standard Package: Case-packed with machines screws for mounting.

Related Categories

• Storefront Bolts and Latches
