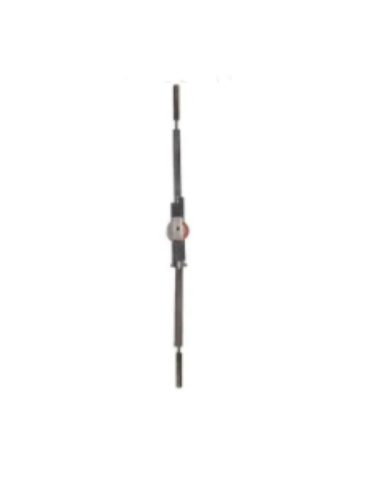

Adams Rite MS1880-682 Two-Point Flush Bolt

Adams Rite MS1880-682 Two-Point Flush Bolt, HourGlass Shaped Turn, Satin Chrome * Function:*

Used instead of flip-lever flushbolts in the inactive leaf of paired doors, the MS1880 Two-Point Flushbolts offer greater convenience: one operation instead of two.They also promote security by removing an element of human error.

A positive blocking device makes it impossible to turn the key in the active door unless the inactive leaf has first been secured. The MS1880 must be installed in conjunction with a pivoted bolt MS deadlock.

Cannot be unlocked when pivoted bolt is inlocked position. Not to be used as a standalone locking mechanism.

Operation:

Turn knob or lever 180 degree clockwise to throw hardened steel bolts into header and threshold and clear strike opening so pivoted MS bolt can enter from active door. Counterclockwise turn retracts vertical bolts and blocks entry of pivoted bolt. Operates in conjunction with any MS pivoting deadlock.

Features:

Header | Threshold Bolt:Hexagonal 3/8" [9.5 mm] flat to flat. Stainless steel. Guides furnished. Bolt throw is 23/32" [18.3 mm]. Strike required in metal headersand thresholds is 1/2" [12.7 mm] diameter hole. For wood installation, two 4005 Strikes are required,available separately.

Interlock:All steel mechanism includes device to prevent entry of pivoted bolt until vertical bolts are locked and conversely, to prevent unlocking of vertical bolts when pivoted bolt is locked.

Turn Lever | Indicator: MS1880 has an hourglass-shaped turn for firmer finger grip. Red background indicator has aluminum letters reading "LOCKED" when secure. No message shown when unlocked. MS1881 has a teardrop-shapedturn with red letters on clear decal indicating unlock direction only.

Turn Height:Matches cylinder height of MS lock in active door.

Standard Package:Individually boxed with bolt guides and screws.

Shipping weight:2 lbs [.91 kg]

Options:

For wood header or threshold, 4005 Strikeavailable separately.

For doors over 84" [2,133.6 mm] up to 120" [3,048 mm].

Tall Door Kit TDK-1880available separately.

Available in choice of powder coat 119 to match 335 Black anodized, 121 to match 313 Dark bronze anodized, and US26D (682) Satin chrome.

Related Products:  When purchasing this product, please consider the following related products, available separately:

Accessories:  TDK-1880 Tall Door Kit, 4005 Wood Strikes Deadlocks: 1850S-020, MS1850S, MS1850S-050, MS1950, MS1950-050 Series Deadlocks
