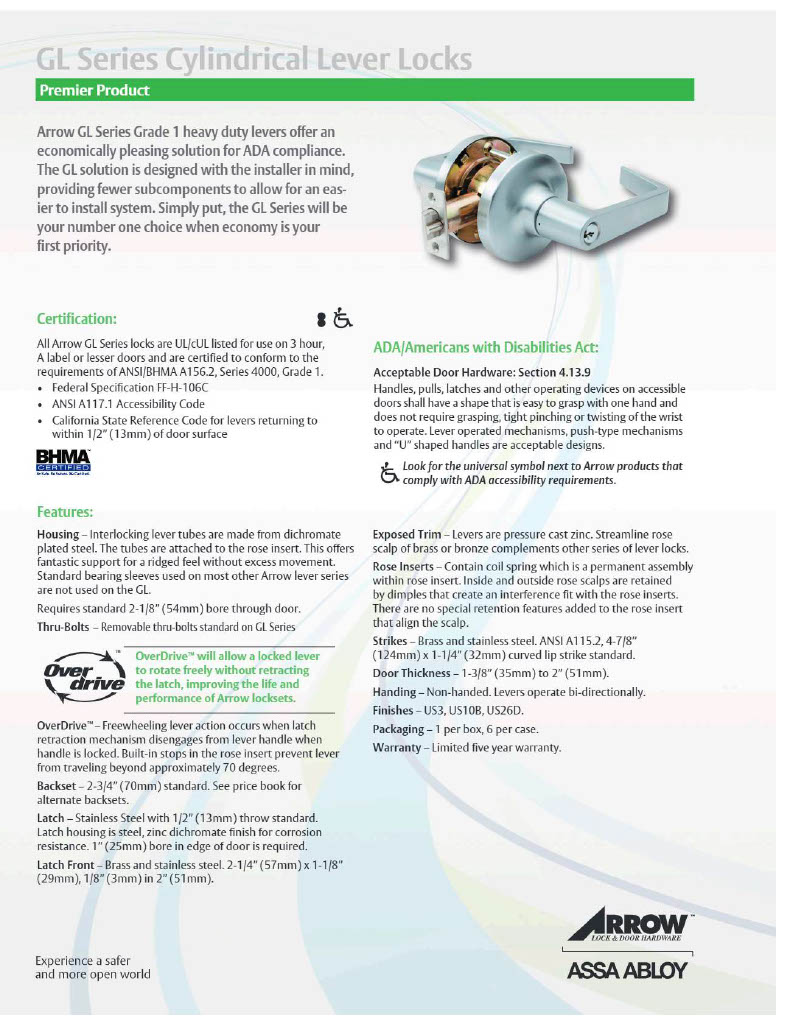

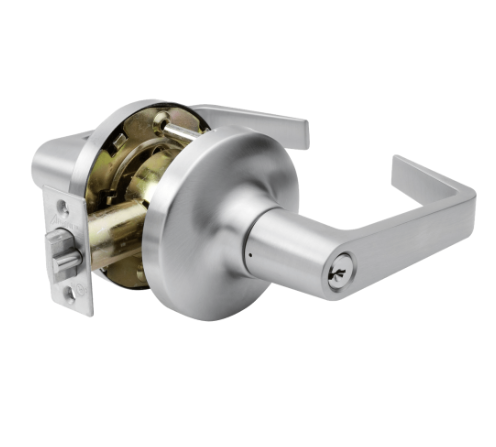

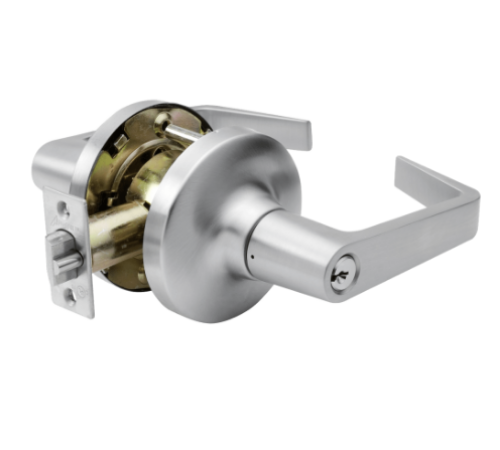

Arrow GL97SR26D - Intruder/Classroom Lever Lock - Satin Chrome

Arrow GL97SR26D - Intruder/Classroom Lever Lock - Satin Chrome

Intruder/Classroom Lock -ANSI-F110

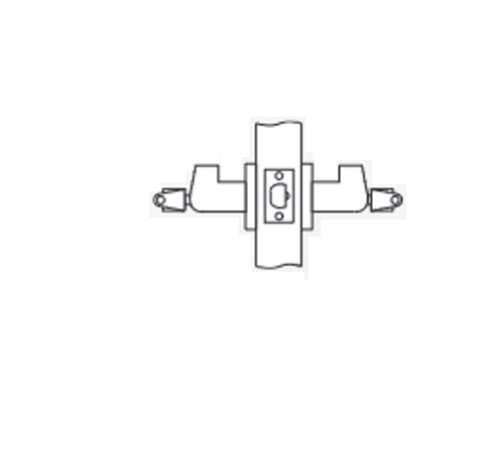

Deadlocking latch bolt operated by lever from either side. Key either inside or outside locks or unlocks outside lever. Inside lever always operates latchbolt.

OverDrivewill allow a locked lever to rotate freely without  retracting the latch, improving the life and performance of  Arrow locksets.

Finish:26D - Satin Chrome

ANSI/BHMA A156.2, Series 4000, Grade 1

Backset:2-3/4" (69.85mm) standard. Requires standard 2-1/8" (53.97mm) bore through door.

Door Thickness:1-3/8" (34.92mm) to 2" (50.8mm).

Cylinders:ConventionalGL Series locksets are supplied standard with Arrow A keyway, 6 pin cylinder, various levels of masterkeying are available. Conventional cylinders are available in a Schlage C keyway. Supplied with two nickel silver keys.

Latch front:Stainless Steel. 2-1/4" (57.15mm) x 1-1/8" (28.57mm), 1/8" (3.175mm) in 2" (50.8mm).

Strike:Stainless steel. ANSI A115.2, 4-7/8" (123.82mm) x 1-1/4" (31.75mm) curved lip strike standard.

Handing:Non-handed. Levers operate bi-directionally.

Mounting:Thru-bolts within 2-1/8" (53.97 mm) cross bore. Contains two support plates which secure to face of door as well as accept thru-bolts from inside rose assembly.

Model: GL97, GL97SR, GL97SR26D, GL97, GL97 SR, GL97 SR 26D, GL97, GL97-SR, GL97-SR-26D, GL97, GL97SR, GL97SR26D, GL97, GL97 SR Arrow, GL97 SR 26D Arrow, GL97 Arrow, GL97-SR Arrow, GL97-SR-26D Arrow Arrow GL97, Arrow  GL97SR, Arrow  GL97SR26D Arrow GL97, Arrow  GL97-SR, Arrow  GL97-SR-26D

Housing:Interlocking lever tubes are made from dichromate plated steel. The tubes are attached to the rose insert. This offers fantastic support for a ridged feel without excess movement. Standard bearing sleeves used on most other Arrow lever series are not used on the GL.

Latch:Stainless Steel with 1/2" (12.7mm) throw standard. Latch housing is steel, zinc dichromate finish for corrosion resistance. 1" (25.4mm) bore in edge of door is required.

Exposed Trim -Levers are pressure cast zinc. Streamline rose scalp of brass or bronze complements other series of lever locks.

Rose Inserts -Contain coil spring which is a permanent assembly within rose insert. Inside and outside rose scalps are retained by dimples that create an interference fit with the rose inserts. There are no special retention features added to the rose insert that align the scalp.

Certification & Compliance: ANSI/BHMA A156.2, Series 4000, Grade 1 Underwriters Laboratories (UL and CUL) listed for use on 3 hour, A label single swinging doors. Federal Specification FF-H-106C ANSI A117.1 Accessibility Code California State Reference Code for levers returning to within 1/2" (12.7mm) of door surface.

*Warranty*Limited five year warranty.
