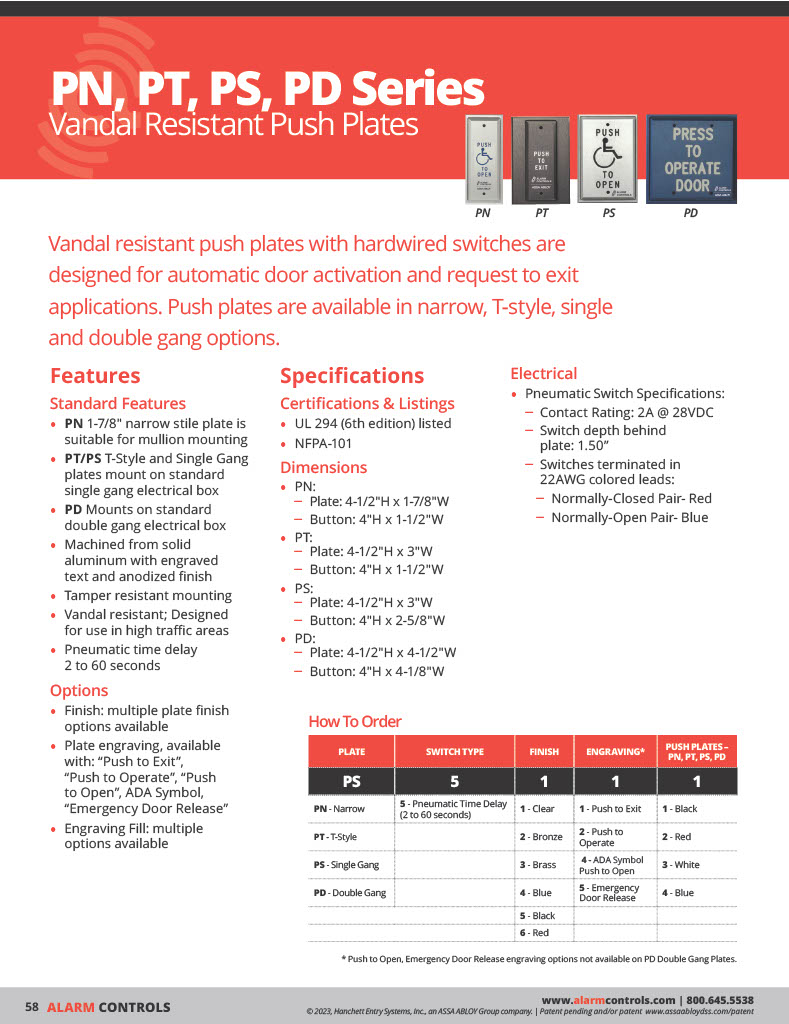

Alarm Controls PS5-133 Push Plate, Single Gang, Pneumatic Time Delay, 2-60 Sec, "PUSH TO OPEN", White Fill, Aluminum
Product Details
Alarm Controls PS5-133 Push Plate, Single Gang, Pneumatic Time Delay, 2-60 Sec, "PUSH TO OPEN", White Fill, Aluminum
PS Single gang plate mounted on standard single gang electrical box.
Machined from solid aluminum with engraved text and anodized finish.
Tamper resistant mounting.
Vandal resistant; Designed for use in high traffic areas.
Certifications & Listings:
UL 294 (6th edition) listed.
NFPA-101
Dimensions:
PS: Plate: 4-1/2"H x 3"W, Button: 4"H x 2-5/8"W.
Contact Rating: 2A at 12 VDC
Switch Depth Behind Plate: 1.50"
PS5-133 ALARM CONTROLS, ALARM CONTROLS PS5-133, PS5-133
