Product Details

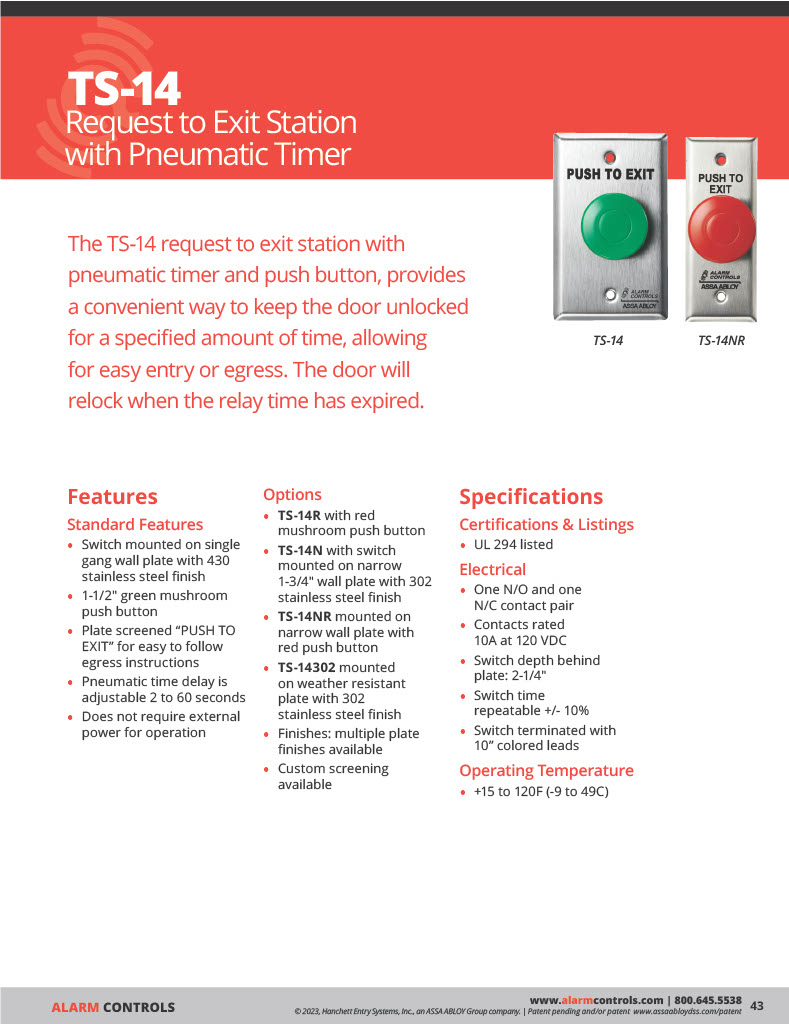

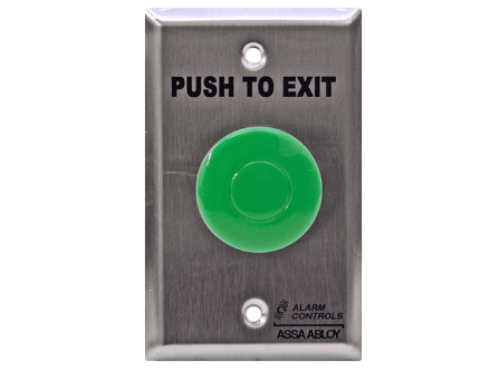

Alarm Controls TS-14 Pneumatic time delay Switch - 1-1/2" mushroom button
Description & Features
Pneumatic time delay operator does not require power for timing function.
▪ Single Gang
▪ 1.5" Green mushroom button
▪ One Normally-Open contact pair and one Normally-Closed contact pair
▪ Contacts rated 10A @ 35VDC
▪ Time range settable between 2 and 60 seconds
▪ Switch time is repeatable ±10%
▪ Switch mounted on a single gang stainless steel electrical plate
▪ UL listed components
▪ Temperature range +15 Degree F to +120 Degree F
▪ Switch depth 2.25" behind plate
