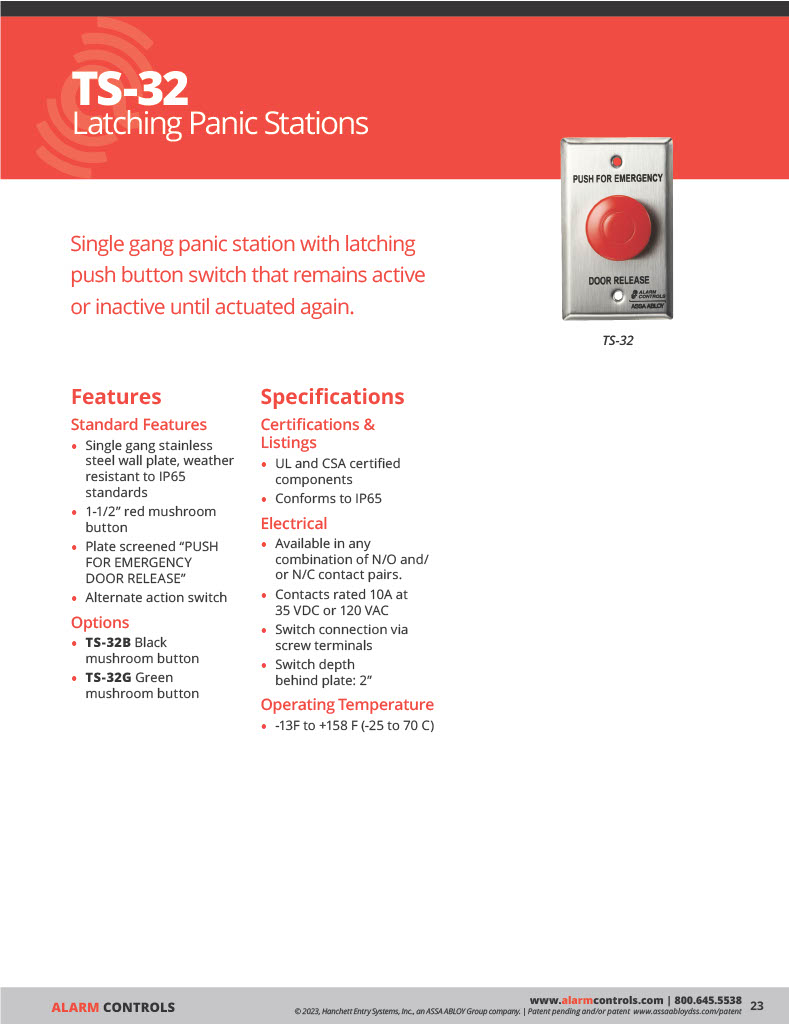

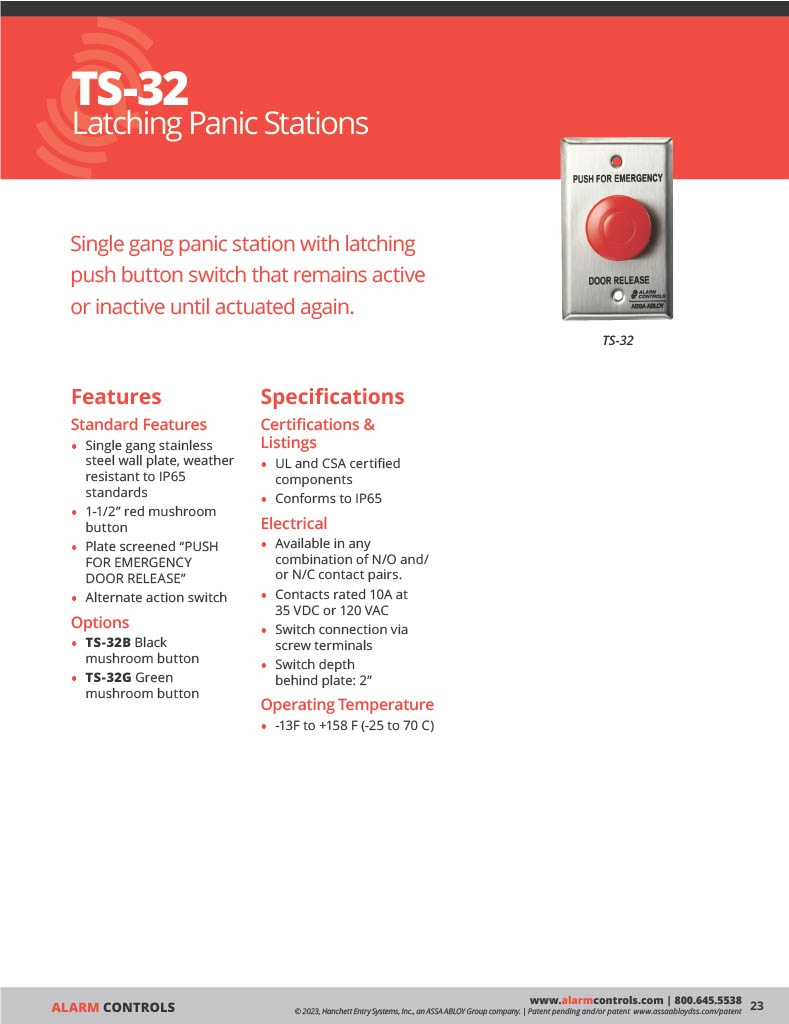

Alarm Controls TS-32 1-1/2" Red Mushroom Button, "PUSH FOR EMERGENCY DOOR RELEASE", Latching

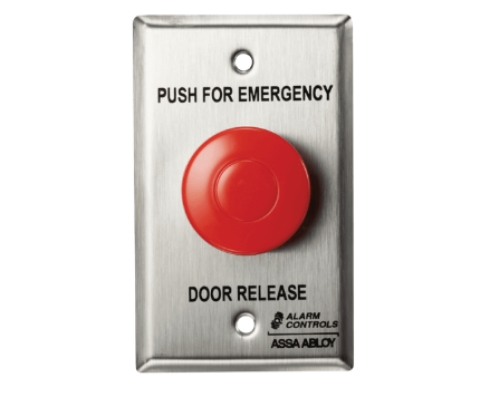

Alarm Controls TS-32 1-1/2" Red Mushroom Button, "PUSH FOR EMERGENCY DOOR RELEASE", Latching Panic Station

Features

Single gang stainless steel wall plate, weather resistant to IP65 standards.

1-1/2" red mushroombutton.

Plate screened "PUSH FOR EMERGENCY DOOR RELEASE".

Alternate action switch.

Certifications & Listings: UL and CSA certified components Conforms to IP65

Electrical:

Available in any combination of N/O and/or N/C contact pairs.

Contacts rated 10A at 35 VDC or 120 VAC.

Switch connection via screw terminals.

Switch depth behind plate: 2"

Operating Temperature: -13F to +158 F (-25 to 70 C)
