Alarm Lock ALPCI2U Trilogy PC Software & Cable with USB

Alarm Lock AL-PCI2-U Software & Cable Kit with USB for Trilogy Digital Locks

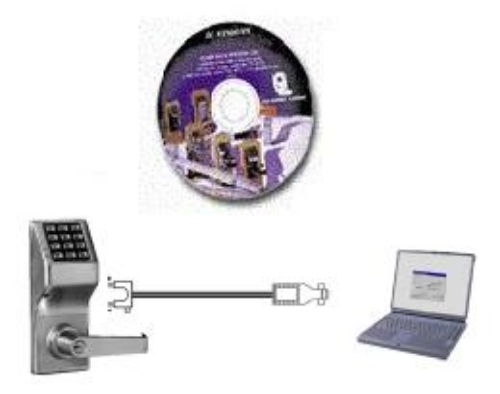

The AL-PCI2-U is an interface cable that allows high speed communication between a PC running DL-Windows software and a compatible Trilogy Digital Lock, Data Transfer Module, or an AL-PRE proximity card reader. Using the AL-PCI2, the PC can upload or download programming to/from the lock, and upload event history.

Note:Requires DL-WINDOWS Software version 3.02 or higher.

AL-PCI2-U USB Trilogy PC SoftwareKitWindows-format software kit used to program Trilogy lock, codes, schedules, view audit trail reports. Kit includes DLWINDOWS software and (required) computer interface cable for use on serial port or USB Port.

SPECIFICATIONS

Input Power:Supplied by the PC and lock connections

Dimensions:25/8"L x 1""H x"W with 5' cord

SYSTEM REQUIREMENTS

IBM PC or compatible desktop or notebook computer with 233 MHz or faster processor.

At least 10 Mb available on hard drive

At least 64 MB of RAM memory

Microsoft Windows 95, 98, NT4.0 or higher

DL-Windows

One unused RS-232 Serial Communications port (Com 1"

4), or USB Port (see NOTE 1).

OPERATION

For details regarding the use of the AL-PCI2, refer to DLWindows User Guide OI237.

Model: AL-PCI2-USB, ALPCI2-USB, ALPCI2USB, , PCI2U, AL-PCI2-U
