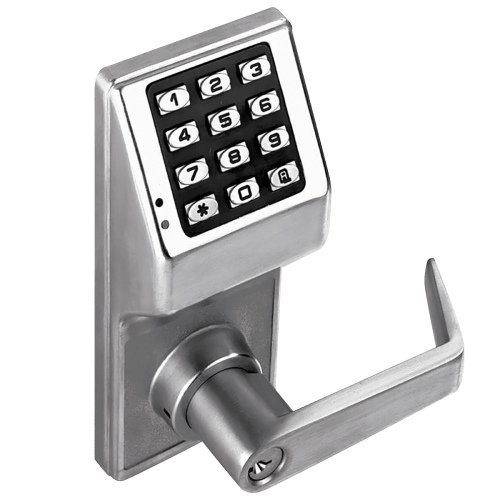

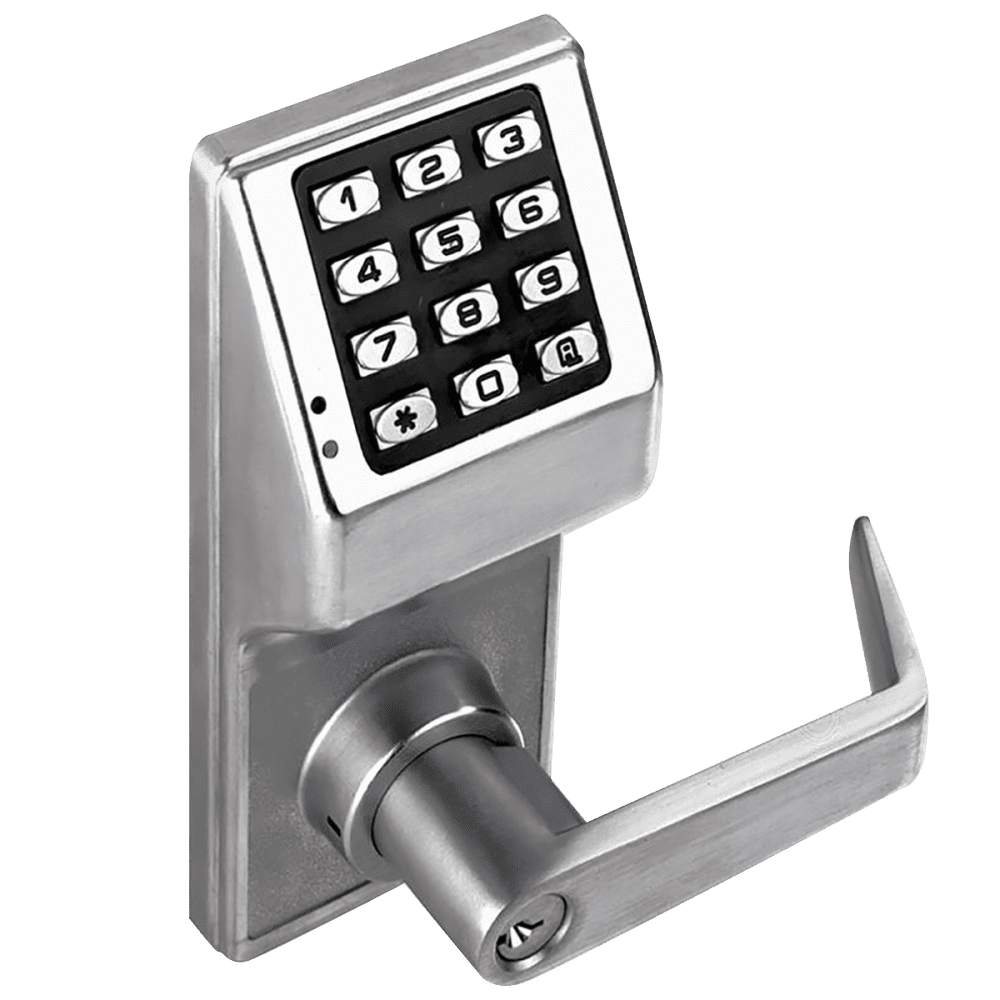

Alarm Lock, Trilogy DL2700 26D Electronic Digital Lock - Satin Chrome

Alarm Lock, Trilogy DL2700 26D Electronic Digital Lock - Satin Chrome

DL2700 Series:

Holds up to 100 user codes, 1 Master, 10 Manager codes & up to 3 one time user codes

Individual, group or total user lockout codes

Easy passage mode by manager and/or master

Lever Styles: 00 Straight Lever

Door Thickness: Fits 1 5/8" to 1 7/8"

Backset: 2 3/4" (2 3/8" also available)

Strike: 1 1/8" x 2 3/4" T strike & 1 1/4" x 4 7/8" ASA strike included

Latchbolt: UL Listed, fire rated 3 hours, 1/2" throw reversible

Handing: Non-handed

POWER: 5 AA alkaline batteries are now rated at120,000 cycles, supplied. Audible low battery alert,visual and audible entry indicators, unique FlexDrivemotor.

Keypad: All metal, 12 button. All functions programmed through keypad.

Door prep: Standard ANSI A115 Series prep, modified byadding additional through-bolt holes

Compliances: BHMA Certified Grade 1 heavy duty cylindrical lockset. UL listedUL Listed 10C Positive Pressure Specification. FCCCertified . ADA compliant levers

Cylinder: 6 pin solid brass, SC1 keyway, furnished with allkey override locks.

Models: Alarm Lock,Trilogy, DL2700, DL270026D, DL2700-26D, DL2700US26D, DL2700 US26D, DL2700 26D, Satin Chrome
