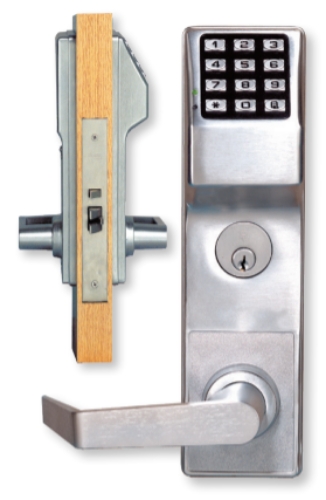

Alarm Lock Trilogy DL2700CR US26D Pushbutton Mortise Door Lock, 100 Users, Satin Chrome

Alarm Lock Trilogy T2 DL2700CR US26D Pushbutton Mortise Door Lock, Classroom Function, 100 Users, Satin Chrome

Functions:

Classroom Functions Features Stainless Steel Latch Bolt With 3/4" Projection And Deadlocking Latch.

1 3/8" (3.5 cm) mortise cylinder supplied.

Handing:Handed, Field Reversible

All DL2700CR mortise locks are weather-resistant.

Holds up to 100 user codes, 1 Master, 10 Manager codes & up to 3 one time user codes.

Individual, group or total user lockout codes.

Easy passage mode by manager and/or master.

Lever Styles:00 Straight Lever.

Door Thickness:Fits 1 5/8" to 1 7/8".

Backset:2 3/4".

Strike:1 1/4" x 4 7/8" ASA strike included.

POWER:5 AA alkaline batteries are now rated at120,000 cycles, supplied.

Keypad:All metal, 12 button. All functions programmed through keypad.

Door prep:Standard ANSI A115 mortise prep, modfified by adding additional through-bolt holes.

Compliances:steelcase lock body meets BHMA specifications for grade 1 locks UL listed 10C positive pressure specification. FCC certified ADA compliant levers.

Cylinder:1 3/8" mortise cylinder supplied, will accept 1 3/8" to 1 1/2" mortise cylinder.

Models: Alarm Lock,Trilogy, DL2700CR, DL2700CR26D, DL2700CR-26D, DL2700CRUS26D, DL2700CR US26D, DL2700CR 26D, Satin Chrome
