Alarm Lock Trilogy DL2700LDIC US26D Pushbutton Cylindrical Door Lock, 100 Users, LocDown Straight Lever, SFIC Prep, Less Core
Product Details
Alarm Lock DL2700LDIC US26D Pushbutton Cylindrical Door Lock, 100 Users, LocDown Straight Lever, SFIC Prep, Less Core, Satin Chrome

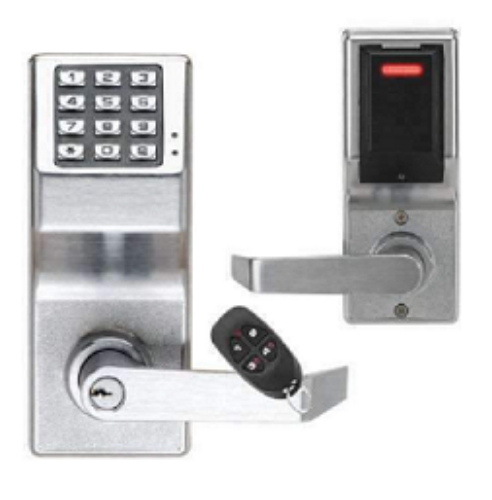

DL2700LD WITH LOCK-DOWN INDICATOR LIGHT BAR & KEYFOB
Lockdown up to four locks with one compact remote keyfob - Pocket-sized, just
over 2"(one included with DL2700LD).
At the first sign of trouble, faculty & staff can remotely press their pocket-sized keyfob's button to lock out unauthorized access, instantly locking-down a classroom or area, while remaining safely within the room. (Keyfob activation up to 100' away, depending on building construction.) For multi-classroom users, up to 50 keyfobs can be supported on each lock and each keyfob can control up to four locks.
With Trilogy's lockdown function, only users with a security level of Master or Manager are allowed access and can unlock the lock. All other basic user codes are denied access during emergency lock down. Instantly, a return to normal command, however, can be sent from a keyfob, re-enabling authorized teachers/staff and first responders outside the classroom, thus disabling emergency lockdown at any time.
Bright visual lockdown indicator bar on inner door confirms security activation to
occupants; Outside small indicator light flashes and/or optionally beeps when
in lockdown.Grade 1 Durability. Grade 1 Lockset , rugged all metal keypad.
Up to 100 different user codes (3-5 digits). Master, manager and emergency, plus 3
service codes. 100% fingertip programmable, easy installation in less than an hour (Modified ANSI 115 Prep simply retrofits standard locksets.). Individual, group or total user code enable/disable. Passage mode, too. Long-life battery operated; uses 5 standard AA batteries. Non-handed for easy installation and versatility.
REMOTE KEYFOB FOR LOCKDOWN:4-Button Keyfob (2 3/8" x 1 1/4" x 1/2"), controls up to 4 locks and uses replaceable battery, One included with DL2700LD Lock; up to 50 can be supported on each lock. Additional keyfobs, order part no. RR-4KEYFOB. Portable keyfob range up to 100', depending on building
construction constraints.
INDICATORS:Activating LocDown mode via keyfob illuminates a
large,red super-bright indicator bar on lock back, & red indicator
light, on front. Additional, audible lock-down indicator tone is a
programmable option. Routine momentary green visual/audible
entry indicator activated with authorized lock usage; visual indicator
warns of low battery condition.
OPERATION:Clutch mechanism permits turning lever without
retracting latch and reduces stress on lock bodies and spindle.
Outside lever free turning in locked position. Entering access code,
key bypass, or remote bypass will allow lever to retract latch. Inside
lever always instant egress.
DOOR THICKNESS:1 5/8" to 1 7/8" Other thicknesses. Please
consult Alarm Lock.
BACKSET:2 3/4" Standard.
KEYPAD:All metal, 12 button programmable for multi-level access
functions including group or individual user codes, master and management codes, passage and emergency or service codes, lockout and remote override capability and allowable entry time from 5 to 20 seconds. 4 Different keypad tones and keypad may be silenced.
STANDARD KEY OVERRIDE CYLINDERS:Solid brass 6 pin tumbler
cylinder pinned 5, SC1 keyway, furnished in all locks. Additional
tailpieces included: HW580 fits Schlage, Corbin/ Russwin CL,
Sargent 480 Series, ASSA65-611. Model HW620 fits Ilco and Lori cylinders.
INTERCHANGEABLE CORE MODELS:Accepts 6 & 7 Pin Cylinders
from: Best, Arrow, KSP, Medeco Keymark & Kaba Peaks. Also
available IC Core models for Yale, Medeco, Sargent, Corbin/
Russwin CL and Schlage. Alarm Lock Tailpiece is supplied; IC Core is
not included.
LATCHBOLT:UL Listed, fire rated, 3 hours, 1/2" throw, solid brass,
deadlocking. Reversible. Adjustable front for flat or beveled doors.
STRIKE:1 1/8'' x 2 3/4" T strike & 1 1/4" x 4 7/8" ASA strike
included. With screws for wood or metal jambs.
LATCH FRONT:1 1/8" x 2 1/4" wrought brass or stainless steel.
HANDING:Non-handed.
FINISH:US26D satin chrome.
POWER:5 AA alkaline batteries (supplied), provide up to 5 years
long battery life &/or approximately 75,000 cycles, typ. engaging
Trilogy's unique Flex Drive motor, depending on actual lock
usage. Audible low battery alert.
DOOR PREP:Standard ANSI A115 Series Prep, modified by adding
additional through-bolt holes. Cleanly, simply retrofits standard locksets.
COMPLIANCES:Grade 1, heavy duty cylindrical lockset, UL listed
and FCC certified. ADA compliant leversets.
Models: Alarm Lock,Trilogy, DL2700LDIC, DL2700LDIC26D, DL2700LDIC-26D, DL2700LDICUS26D, DL2700LDIC US26D, DL2700LDIC 26D, Satin Chrome
