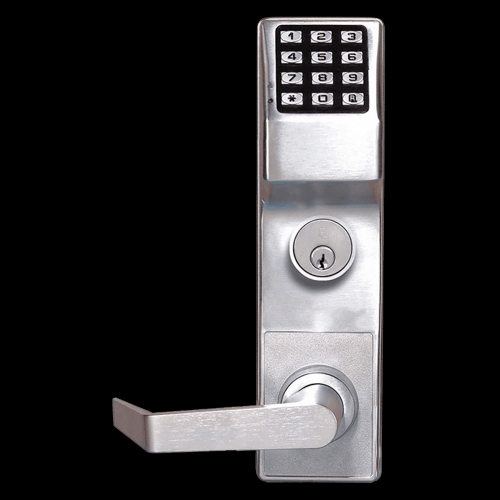

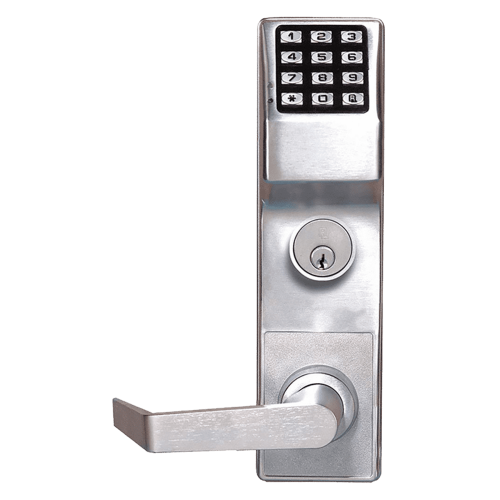

ALARM LOCK Trilogy ETDL27 S1G T2 Series Exit trim, Straight Handle

About this item

The Alarm Lock Trilogy ETDL27 S1G is a standalone electronic pushbutton exit trim that adds keypad access control to any compatible panic exit device without running wire to the door. The ETDL27 is the T2 Series version of the Trilogy exit trim, with 2,000 user codes, 500 timed lock/unlock schedules, and a 40,000-event time-and-date-stamped audit trail. Generic rim cylinder and adapter kit are included. The S1G designation identifies the straight handle lever design. Exit devices and panic bars must be ordered separately.

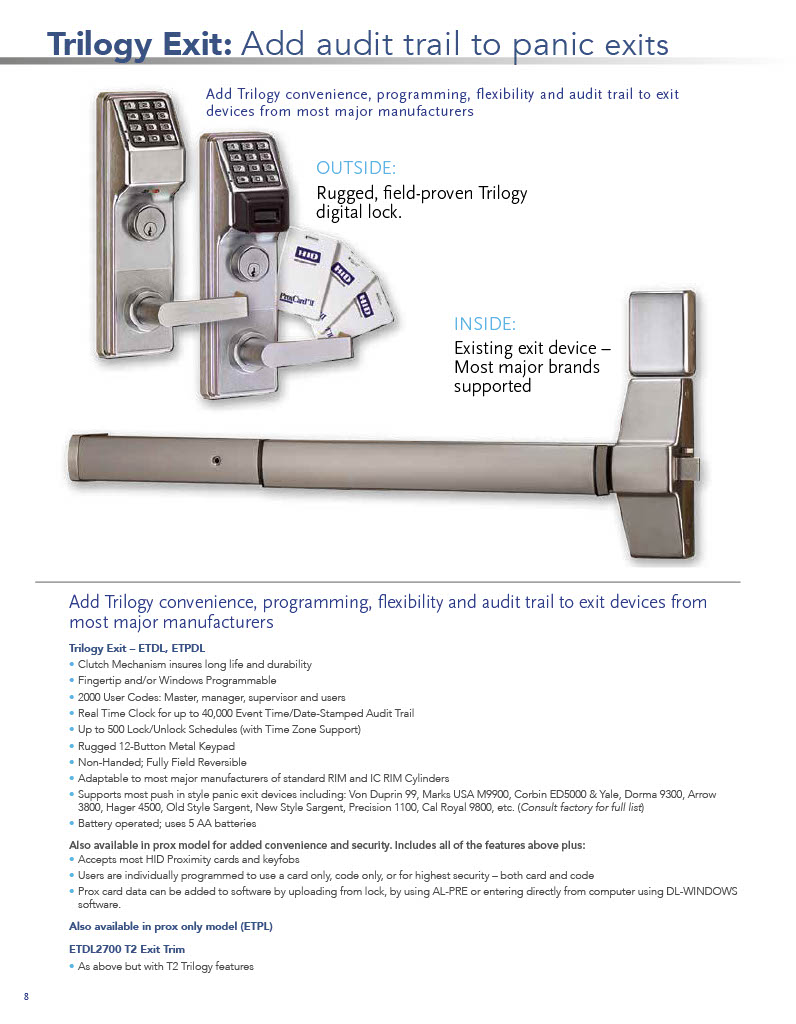

Trilogy ETDL27 Exit Trim: Keypad Control for Panic Bar Door

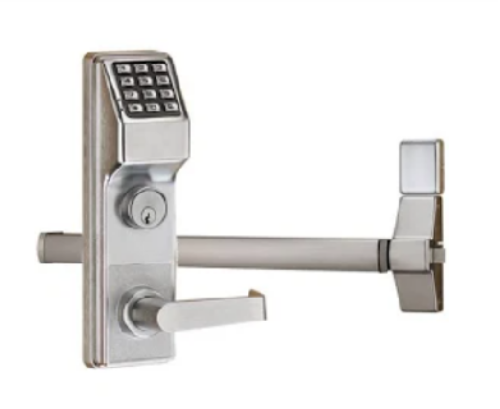

The ETDL27 mounts as exterior trim on an existing panic exit device, adding electronic keypad control to the outside lever while keeping the interior panic bar always active for instant egress. The clutch mechanism inside the trim permits the lever to turn without retracting the latch when the lock is in secured mode. When a valid user code is entered on the 12-button metal keypad, the clutch engages and allows the lever to retract the latch for entry. The key override rim cylinder provides a mechanical bypass when power fails or the keypad is unavailable. The battery housing mounts to the interior face of the door above or below the panic bar, depending on the exit device manufacturer.

Compatible Exit Devices

The Alarm Lock ETDL27 S1G works with panic bars from most major commercial exit device manufacturers using device-specific adapter kits (included generic adapter kit covers the standard application). Compatible exit devices include:

• Von Duprin 99 Series

• Corbin Russwin ED5000 Series

• Yale 7100 Series

• Dorma 9300 Series

• Arrow 3800 Series

• Sargent 8800 Series

• Precision 1100 and 2100 Series (requires PB21 plate)

• Cal Royal 9800 Series

• Marks M9900 Series

• Hager 4500 Series

• American Eagle 6200 Series

Specifications

• SKU / Model: ETDL27S1G

• Lever Style: S1G Straight Handle

• User Codes: 2,000 (Master, Manager, Supervisor, and Basic Users)

• Lock/Unlock Schedules: 500 timed schedules including 4 quick-schedule slots for the most common time periods

• Audit Trail: 40,000 time/date-stamped events including unlock/lock events, program changes, user entry, keypad lockout, remote releases, and unauthorized code attempts

• Keypad: 12-button, all-metal, weather-resistant, completely encapsulated and hermetically sealed circuit board

• Operating Temperature: -20°F to +150°F

• Door Thickness: 1-3/4 inch standard. Extended spindles available for thicker doors

• Power: 5 AA alkaline batteries (included). Approximately 60,000 cycles per battery set. Optional 9VDC or 9VAC hard-wired power supply for remote release and battery backup

• Key Override: Generic rim cylinder included. All rim cylinders are interchangeable. IC core-compatible versions available for Yale, Medeco, Sargent, Corbin Russwin CL, and Schlage

• Handing: Non-handed, field reversible

• Finishes: US26D Satin Chrome, US10B Duronodic, US3 Polished Brass

• Includes: Generic rim cylinder and adapter kit. Exit device sold separately

Remote Programming and Audit Trail Access

User codes and schedules are programmable directly at the keypad. For facility-wide access control, the ETDL27 connects to any PC running Alarm Lock DL-Windows software via the AL-PCI Interface Cable (sold separately), allowing centralized user management, schedule uploads, and audit trail downloads. The Alarm Lock AL-IR1 handheld infrared printer allows on-site audit trail printing directly at the lock without a PC.

Part of the Trilogy Exit Locks product line at American Locksets. Browse all Alarm Lock Trilogy keypad access control products.
