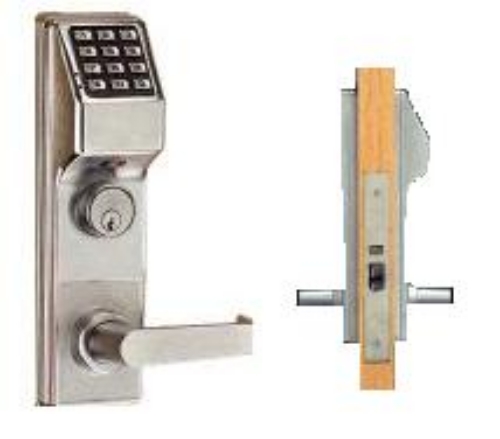

Alarm Lock Trilogy T3 DL3500DB Digital Mortise Lock W/Audit Trail - Deadbolt Function

Alarm Lock Trilogy T3 DL3500DB Digital Mortise Lock W/Audit Trail - Deadbolt Function

Choose either Classroom or Deadbolt versions and left or right handing (If reverse hand is required, lock is field reversible.)

(for (RHR) Right Hand Reverse order LH Lock, for (LHR) Left Hand Reverse order RH Lock)

Functions:

Deadbolt functionfeature stainless steel deadbolt with1" (2.55cm) projection, latchbolt with 3/4" (1.91cm)projection and deadlocking latch Deadbolt may beprojected from key cylinder from outside door orturn-piece from inside door

1 3/8" (3.5 cm) mortise cylinder supplied

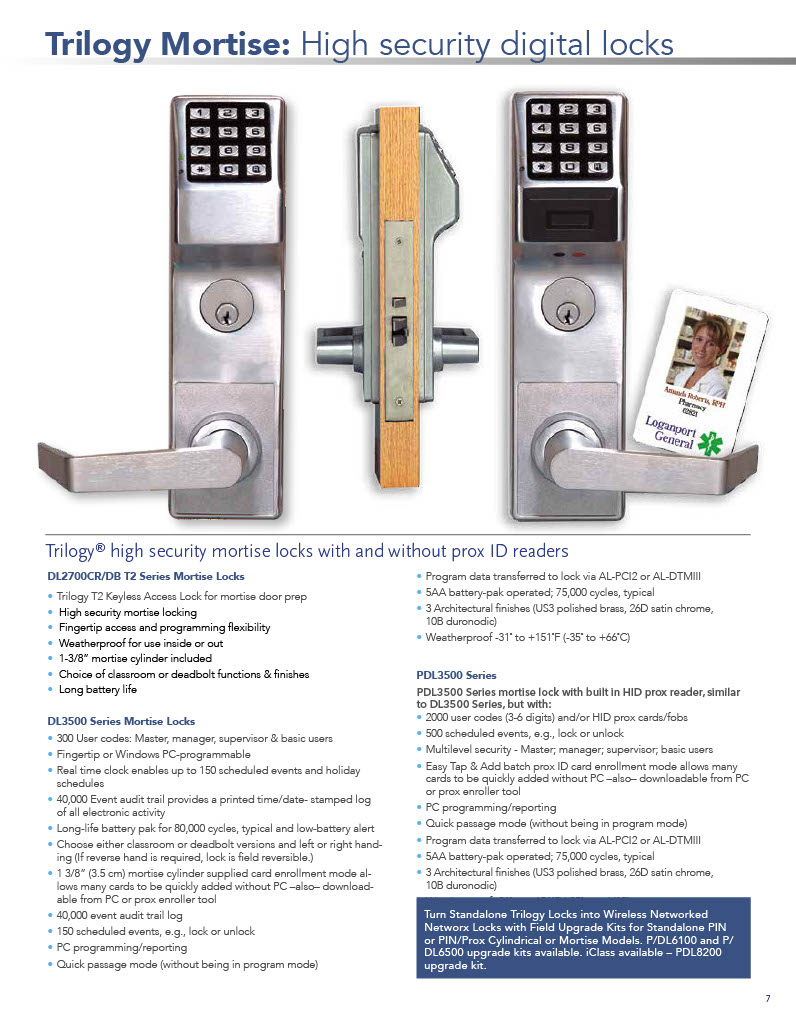

Alarm Lock - Trilogy DL3500 Series:

Program at keypad or with PC- and / or data-transfer module

300 user codes (3-6 digits) including: Master, manager, supervisor and basic user. Also one-time entry service code

500 scheduled events, including 4 quick schedulesfor programming the 4 most common time schedules in one step

Quick passage mode (without being in program mode)

40,000  event audit trail with time/date stamp for a printable record of door access activity by user, can be polled with the (AL-PCI)Interface Cable & Sofware (sold separately) to any PC using DLWindows Software.Activities included are: unlock/lock events, program mode changes, user entry, keypad lockout, remote release events, unauthorized code attempts, etc

Hand-held infrared (AL-IR1) printer can be used to print on-site from the lock(sold separately).

Data Transfer Module (AL-DTMII)can also be used to transfer program data from the PC (running DL-WINDOWS software) to the lock and receives audit trail from the lock. Can store data for up to 96 locks at a time(sold separately).

Weatherproof performance, water-sealed for use inside and out, with operational temperature range of +151 F to -31 F (+66 C to -35 C)

Entry allowance from 5-15 seconds - Greater security withtemporary keypad lockoutafter 3 unsuccessful code-entry attempts

Real time clock allows logging of events to within 1 second of accuracy

Battery operated; Uses 5 AA alkaline batteries, supplied. Audible low battery alert, visual and audible entry indicators, unique Flex Drive motor. 75,000 cycles typical.

Available in standard key override and interchangeable core modelsaccepting 6 or 7 pin cores from Arrow, Best, Falcon or KSP. Other IC core preps available.

Alarm Lock, Trilogy, DL3500, DL350026D, DL3500US26D,  DL3500DB, DL3500DB26D, DL3500DBUS26D, DL3500DBRUS26D,  DL3500DBLUS26D, US26DSatin Chrome (26D) RHR, LHR, RH, LH.

Door Thickness: Fits 1 3/8" to 1 7/8" (4.46cm).

Backset: 2 3/4" standard

Strike:1 1/4" x 4 7/8" strike included

Handing:Specify RH or LH when ordering.

Power:5 AA alkaline batteries (included)

Keypad:All metal, 12 button. All functions programmedthrough keypad.

Door prep:Standard ANSI A115 Mortise prep, modified byadding additional through-bolt holes

Compliances:Steelcase lockbody meets BHMA specificationsFor Grade 1 locks. UL listed to the 10C PositivePressure Specification. FCC Certified. ADAcompliant levers

Cylinder:1 3/8" (3.5cm) mortise cylinder supplied. WillAccept 1 3/8"  to 1 1/2"  (3.5" 3.82cm) mortiseCylinder. Classroom function supplied with straightCam and deadbolt function supplied with cloverleafCam
