Altronix AL1024ULX Power Supply Charger, Single Fused Output - 24VDC @ 10A, 115VAC, Grey Enclosure

Altronix AL1024ULX Power Supply Charger, Single Fused Output, 24VDC @ 10A, 115VAC, BC400 Enclosure, Lifetime Warranty

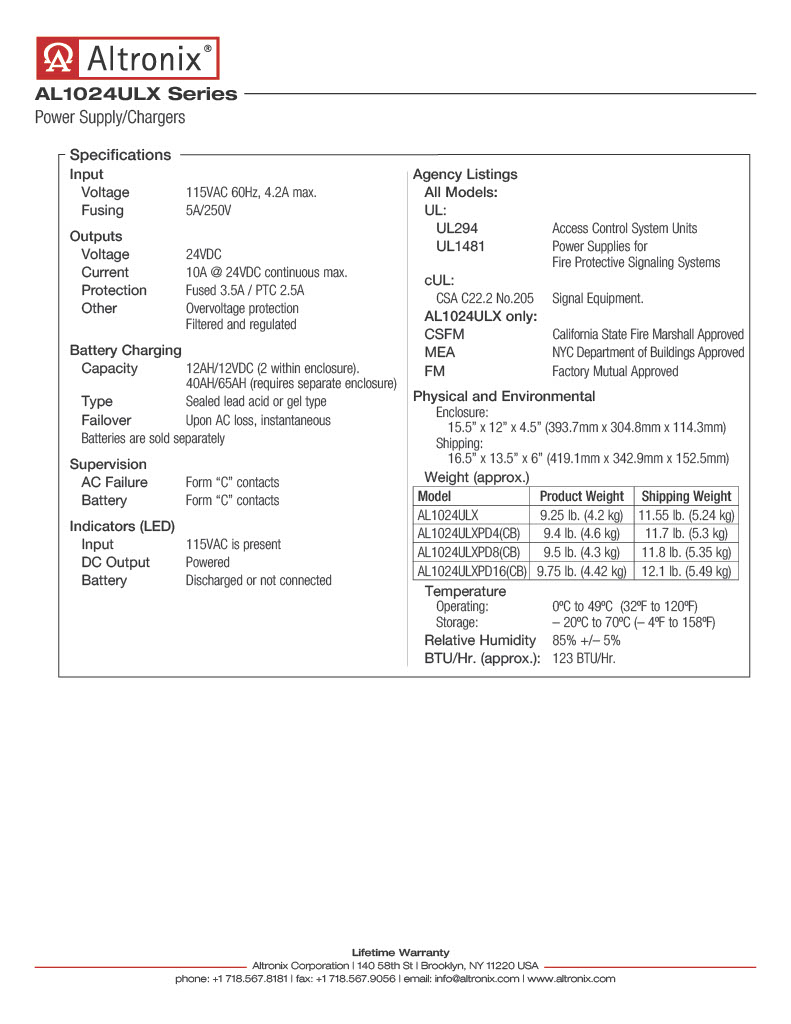

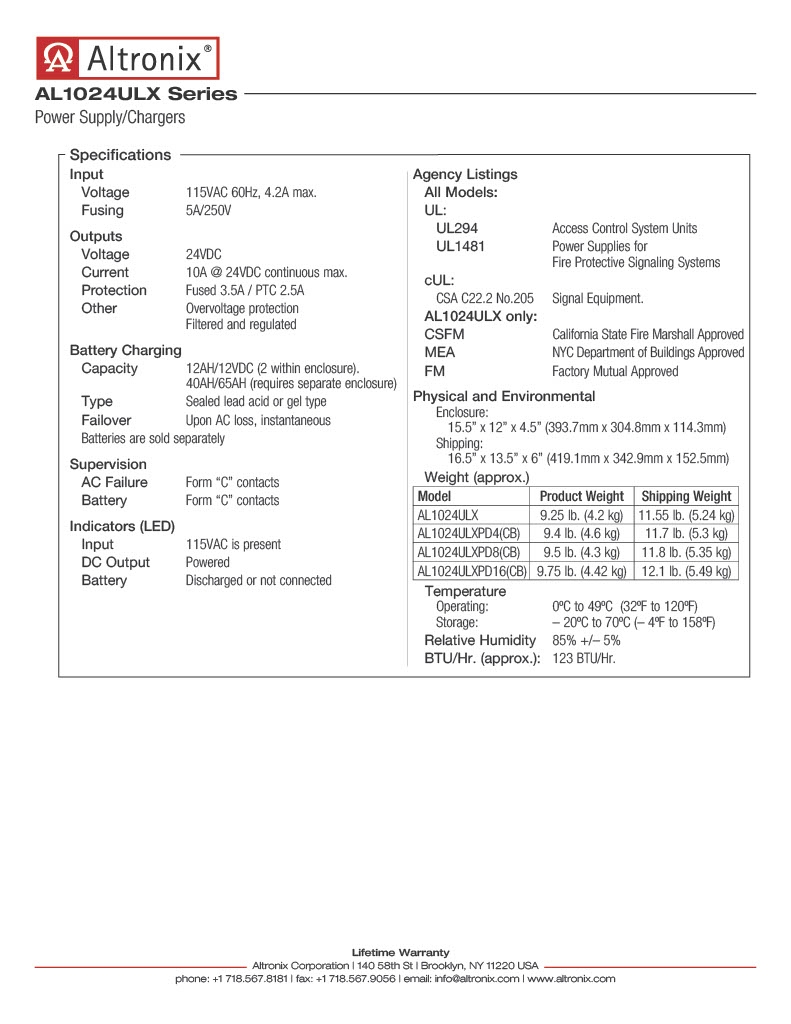

Specifications:

Input: 115VAC, 60Hz, 4.2A. Input fuse rated @ 3.5A/250V.

Output: 24VDC output. 10A of continuous supply current for Access Control applications. 8A of continuous supply current for Fire Alarm applications. Filtered and electronically regulated output. Short circuit and thermal overload protection.

Battery Backup: Built-in charger for sealed lead acid or gel type batteries. Automatic switch over to stand-by battery when AC fails.

Supervision: AC fail supervision (form "C" contacts). Notification trigger is selectable for 30 seconds (factory set) or 6 hours. Low battery supervision (form "C" contacts). Battery presence supervision (form "C" contacts).

Visual Indicators:AC input and DC output LED indicators.

Temperature: Operating 0 to 49 C (32 to 120 F ). Storage - 20 to 70 C ( - 4 to 158 F). Relative Humidity 85% +/- 5%

BTU/Hr. (approx.):123 BTU/Hr.

System AC input VA requirement:483VA.

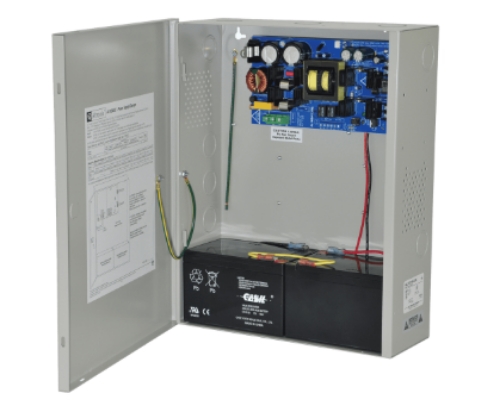

Enclosure: Wall mount enclosure for indoor use. Accommodates up to two (2) 12VDC/12AH Batteries. *Batteries sold separately

Dimensions:12.25"W x 15.5"H x 4.5"D (311 mm W x 394 mm H x 114 mm D). 1.125" and 1.375" combination knockouts.

Weights (approximate): Product Weight: 9.25 Lbs. (4.2 kg). Shipping Weight: 11.55 Lbs. (5.24 kg).
