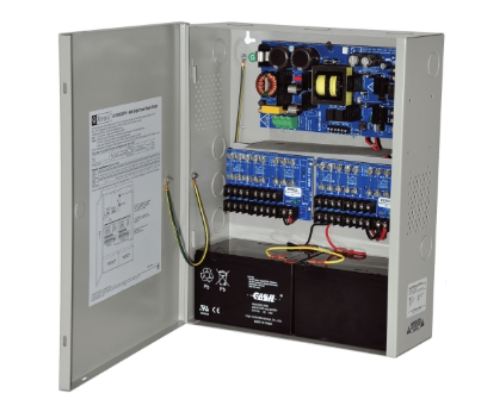

Altronix AL1024ULXPD16 Power Supply/Charger, Grey Enclosure - 16 Fused Outputs, 24VDC @ 10A, 115VAC

Altronix AL1024ULXPD16 Power Supply/Charger, 16 Fused Outputs, 24VDC @ 10A, 115VAC, Grey Enclosure, Lifetime Warranty

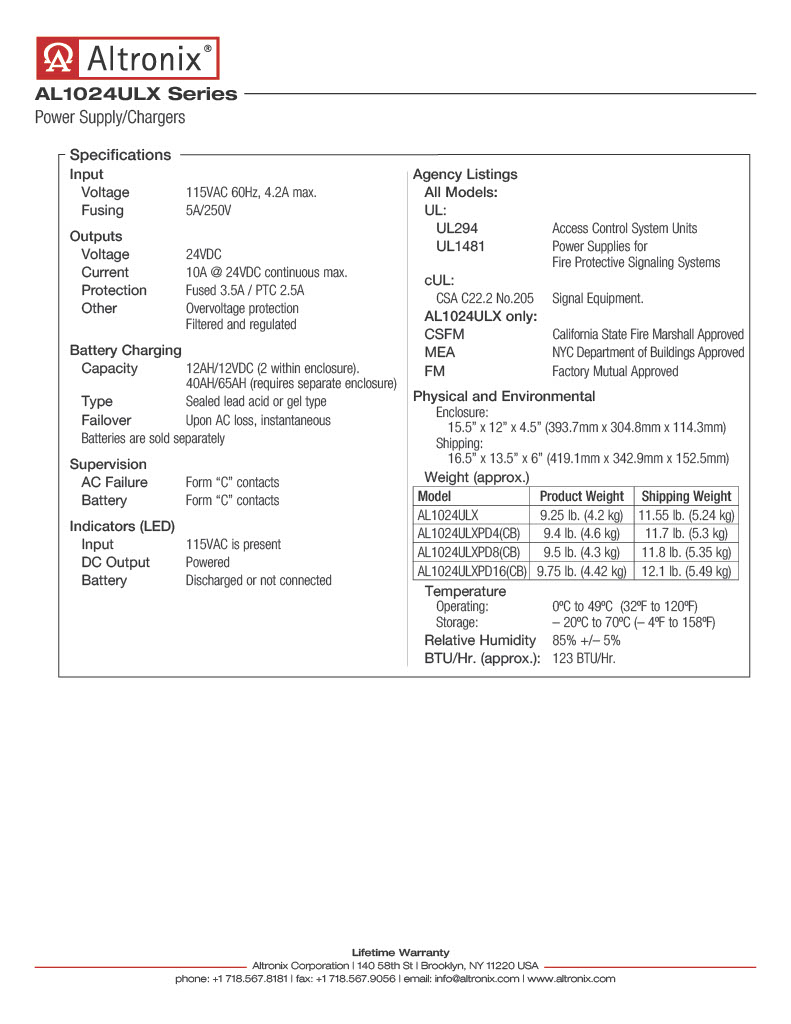

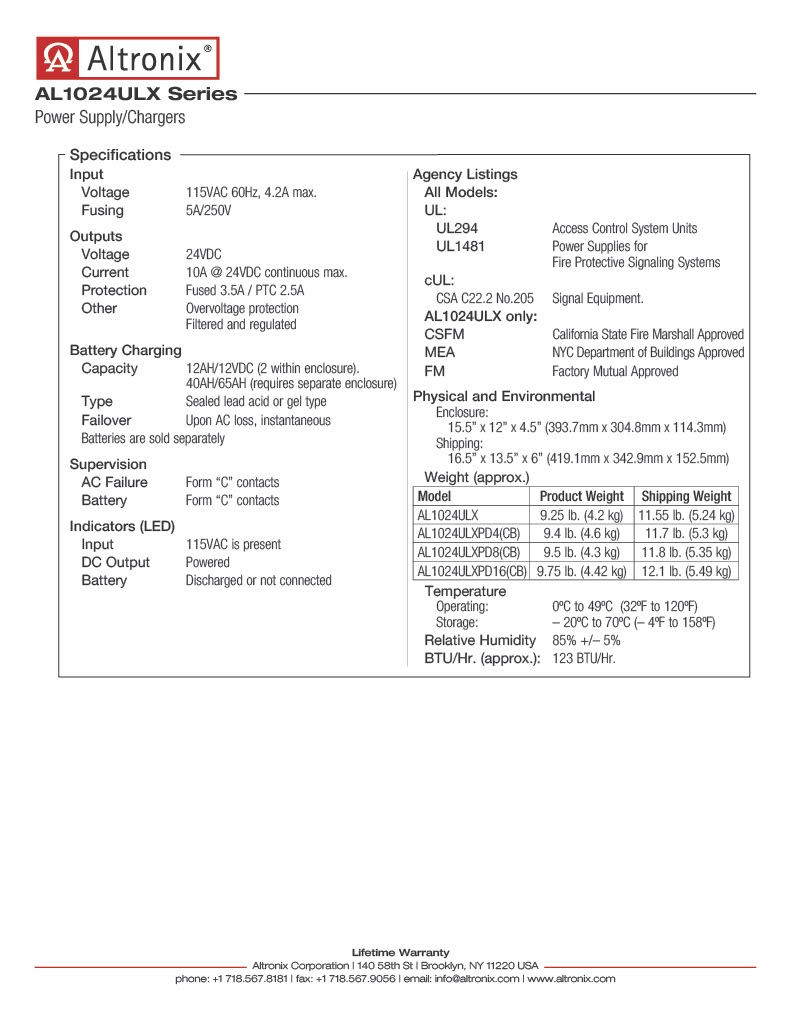

Specifications:

Input:115VAC, 60Hz, 4.2A. Input fuse rated @ 3.5A/250V. Output:24VDC output. 10A of continuous supply current for Access Control applications. 8A of continuous supply current for Fire Alarm applications. Sixteen (16) fuse protected outputs. Output fuses are rated @ 3.5A/250VAC. Filtered and electronically regulated output. Short circuit and thermal overload protection.

Battery Backup: Built-in charger for sealed lead acid or gel type batteries. Automatic switch over to stand-by battery when AC fails.

Supervision: AC fail supervision (form "C" contacts). Notification trigger is selectable for 30 seconds  (factory set) or 6 hours. Low battery supervision (form "C" contacts). Battery presence supervision (form "C" contacts).

Visual Indicators:AC input and DC output LED indicators.

Temperature:Operating 0 to 49 C (32 to 120 F ). Storage - 20 to 70 C ( - 4 to 158 F). Relative Humidity 85% +/- 5% BTU/Hr. (approx.): 123 BTU/Hr. System AC input VA requirement: 483VA.

Enclosure:Wall mount enclosure for indoor use. Accommodates up to two (2) 12VDC/12AH Batteries.

Dimensions:12.25"W x 15.5"H x 4.5"D (311 mm W x 394 mm H x 114 mm D). 1.125" and 1.375" combination knockouts. Product Weight: 9.75 Lbs. (4.42 kg). Shipping Weight: 12.1 Lbs. (5.49 kg).

*Batteries sold separately
