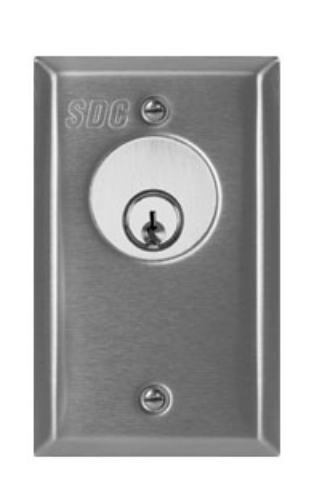

SDC 702U Key Switch, 1-Gang, Momentary SPDT 6 Amp, Vandal resistant key cylinder recess - Stainless Steel

SDC 702U Key Switch, 1-Gang, Momentary SPDT 6 Amp, Vandal resistant key cylinder recess - Stainless Steel

Operation:

Momentary SPDT: Turning the key left or right momentarily actuates the contact

Application:

• Momentary access

• Timer activation

• Alarm reset

Features:

• Tamper Resistant, Recessed Cylinder

• Tamper Resistant Spanner Screws

• Heavy Duty All Steel Assembly

• Stainless Steel Faceplates of 20 Gauge

• Large Actuator for Positive and Consistent Activation

• 6 Amp @ 30 VDC Resistive

• 7", 22 Gauge Wire Leads

• Compatible with 1.0" or 1.375" Mortise Cylinder (not included)

• 2.875" x 4.5" x 20 Ga

NEW CONSTRUCTION OR RETROFIT:

SDC key switch assemblies are compatible with U.S. standard, 1.0" and 1.375" mortise key cylinders and interchangeable core cylinders (not included). Compatibility with a new or existing facility mechanical key system is maintained. Standard switch assemblies are single gang box mounted.
