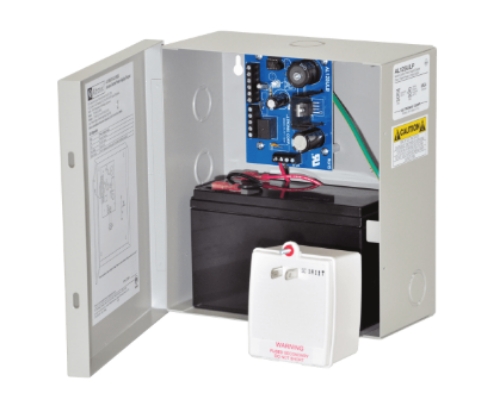

Altronix AL125ULP Power Supply/Charger, 24VAC, 40VA from UL Listed Class 2 Transformer, 2 PTC Outputs, 12VDC at 1A, 24VDC at 0.5A, Grey Enclosure Includes Plug-in Transformer

**Altronix AL125ULP Power Supply/Charger, 24VAC, 40VA from UL Listed Class 2 Transformer, 2 PTC Outputs, 12VDC at 1A, 24VDC at 0.5A, Grey Enclosure Includes Plug-in Transformer, Lifetime Warranty

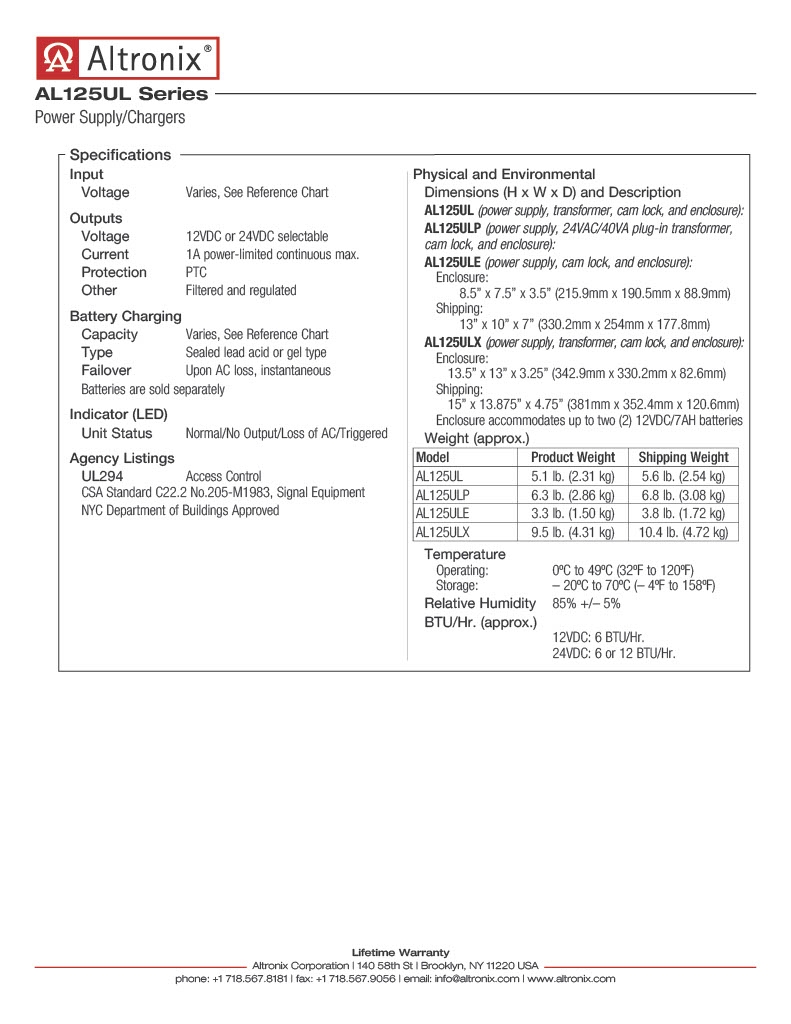

Specifications**

Input: 24VAC, 40VA from UL Listed, Class 2 transformer. Access control trigger input.

Output: 12VDC @ 1A or 24VDC @ 0.5A selectable outputs. Two (2) Class 2 Rated power limited outputs. Fail-Safe/Fail-Secure lock output (switched). Auxiliary power output (unswitched). PTC protected outputs, rated @ 2.5A. Filtered and electronically regulated output. Short circuit and thermal overload protection.

Battery Backup: Built-in charger for sealed lead acid or gel type batteries. Automatic switch over to stand-by battery when AC fails.

Supervision: Supervised Fire Alarm Disconnect (Latching w/reset or Non-Latching).

Indicator (LED): Unit Status: Normal / No Output / Loss of AC / Triggered.

Temperature: Operating 0 C to 49 C (32 F to 120 F). Storage - 20 C to 70 C ( - 4 F to 158 F). Relative Humidity 85% +/- 5%. BTU/Hr (approx.):12VDC: 6 BTU/Hr. - 24VDC: 6 or 12 BTU/Hr. System AC input VA requirement:55.2VA.

Features: Includes power supply, plug-in transformer, enclosure and battery leads.

Enclosure: Wall mount enclosure for indoor use. Accommodates up to two (2) 12VDC/4AH Batteries.

Dimensions: 7.5"W x 8.5"H x 3.5"D (191 mm W x 216 mm H x 89 mm D). 1/2" and 3/4" combination knockouts.

Product Weight:6.3 Lbs. (2.86 kg). - Shipping Weight: 6.8 Lbs. (3.08 kg).

*Batteries sold separately
