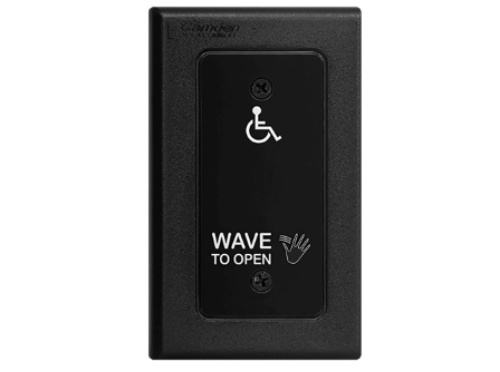

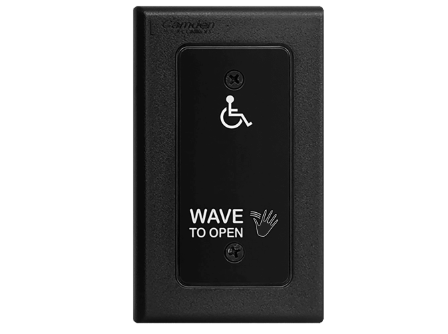

Camden CM-333/42 SureWave Touchless Switch, 1" to 12" Range, 1 Relay, Single Gang Hand Icon/'Wave to Open' Text/Wheelchair Symbol Faceplate, Includes 2 'AA' Alkaline Batteries

Camden CM-333/42S SureWave Touchless Switch, 1" to 12" Range, 1 Relay, Single Gang Hand Icon/'Wave to Open' Text/Wheelchair Symbol Faceplate, Includes 2 'AA' Alkaline Batteries

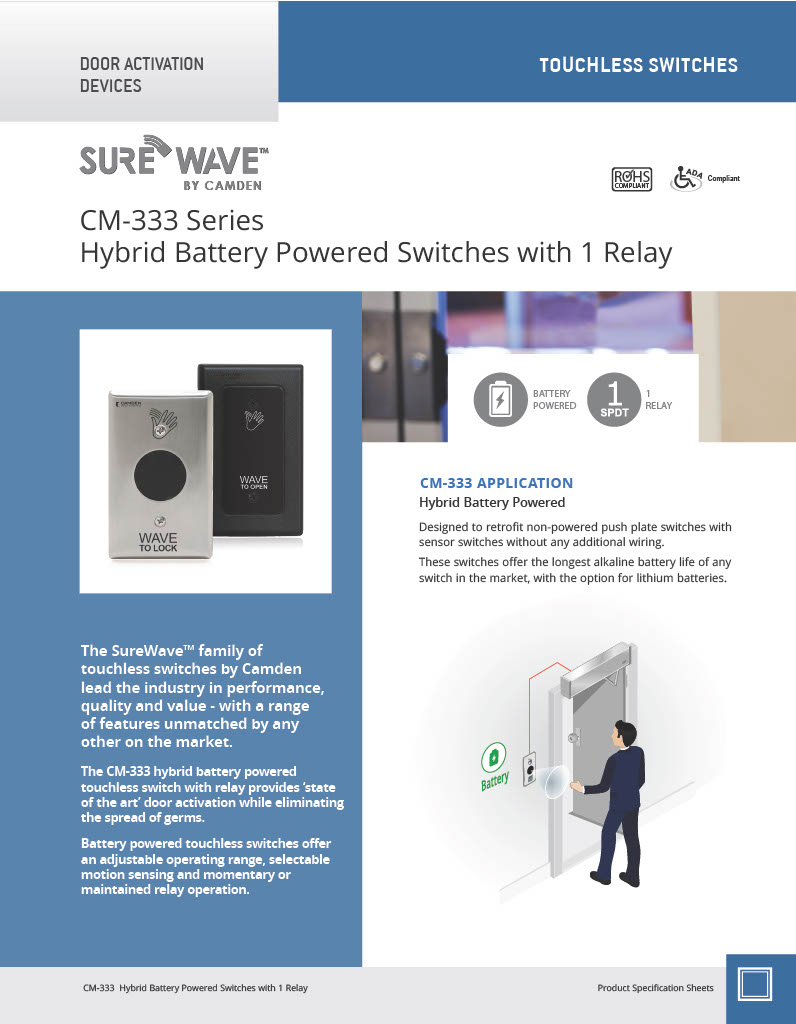

CM-333 hybrid battery powered touchless switch with relay provides state of the art door activation while eliminating the spread of germs.

Battery powered touchless switches offer an adjustable operating range, selectable motion sensing and momentary or maintained relay operation. CM-333 switches are also Lazerpoint RF compatible with CM-TX99 plug in wireless transmitter.

MODEL: CM-333 - Hybrid Battery Powered Touchless Switch, 1 wired Relay, option for CM-TX99 wireless transmitter.

CM-330/324/325 FEATURES:- Wired, wireless and hybrid (wirless/wired) models.

• Indoor/outdoor use. -4 F to +153 F (-20 C to +85 C) operating temp. Gasket included in package.

• Battery powered wireless models offer 2 year battery life using standard 'AA' alkaline batteries.

- Line powered models offer 12/24V AC/DC operation.

• 1 and 2 relay wired models, SPDT, Form 'C'.

• Narrow (jamb), single and and double gang faceplates.

• Polycarbonate (black) and stainless steel faceplates.

• Advanced active infra-red technology with fast response.

• Heavy duty 3 or 5 Amp rated relay.

• Adjustable operating range up to 28", refer to model specification.

• CM-331/332 Series: Selectable auto range (operation) mode of up to 6".

• Adjustable time delay, refer to model specifcation.

• Selectable fail safe/fail secure operation.

• CM-331/332 Series: Active output for external alrm, LED or annunciator.

• CM-332/333 Series: 'Request to exit' and external door contact inputs.

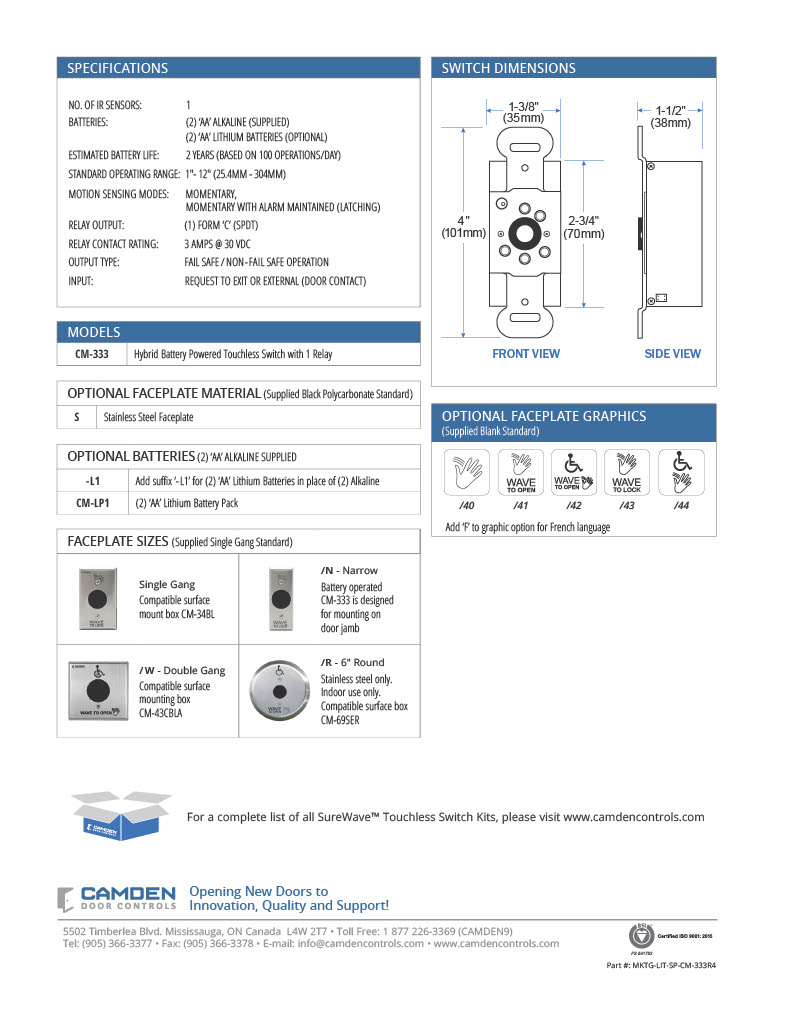

• CM-331/332 Series: Optional red/blue/green LED light ring with single gang stainless steel faceplate, indicates switch or door status. SPECIFICATIONS:

FACEPLATE SIZE:Single Gang Compatible surface mount box CM-34BL.

FACEPLATE MATERIAL:  Supplied Black Polycarbonate Standard.

FACEPLATE GRAPHIC:42.

FACEPLATE GRAPHIC:42.

NO. OF IR SENSORS:1.

BATTERIES:  'AA' ALKALINE SUPPLIED.

ESTIMATED BATTERY LIFE:2 YEARS (BASED ON 100 OPERATIONS/DAY).

STANDARD OPERATING RANGE:1"- 12" (25.4MM - 304MM).

MOTION SENSING MODES: MOMENTARY, MOMENTARY WITH ALARM MAINTAINED (LATCHING).

RELAY OUTPUT:(1) FORM 'C' (SPDT).

RELAY CONTACT RATING:3 AMPS @ 30 VDC.

OUTPUT TYPE:FAIL SAFE / NON-FAIL SAFE OPERATION.

INPUTS:REQUEST TO EXIT, EXTERNAL (DOOR CONTACT) INPUT.

OPTIONAL WIRELESS OUTPUT:TX-99 PLUG-IN 915MHZ.
